Ricoh Aficio MP 301SPF Service Manual

Fusing
D127/D128 4-10 SM

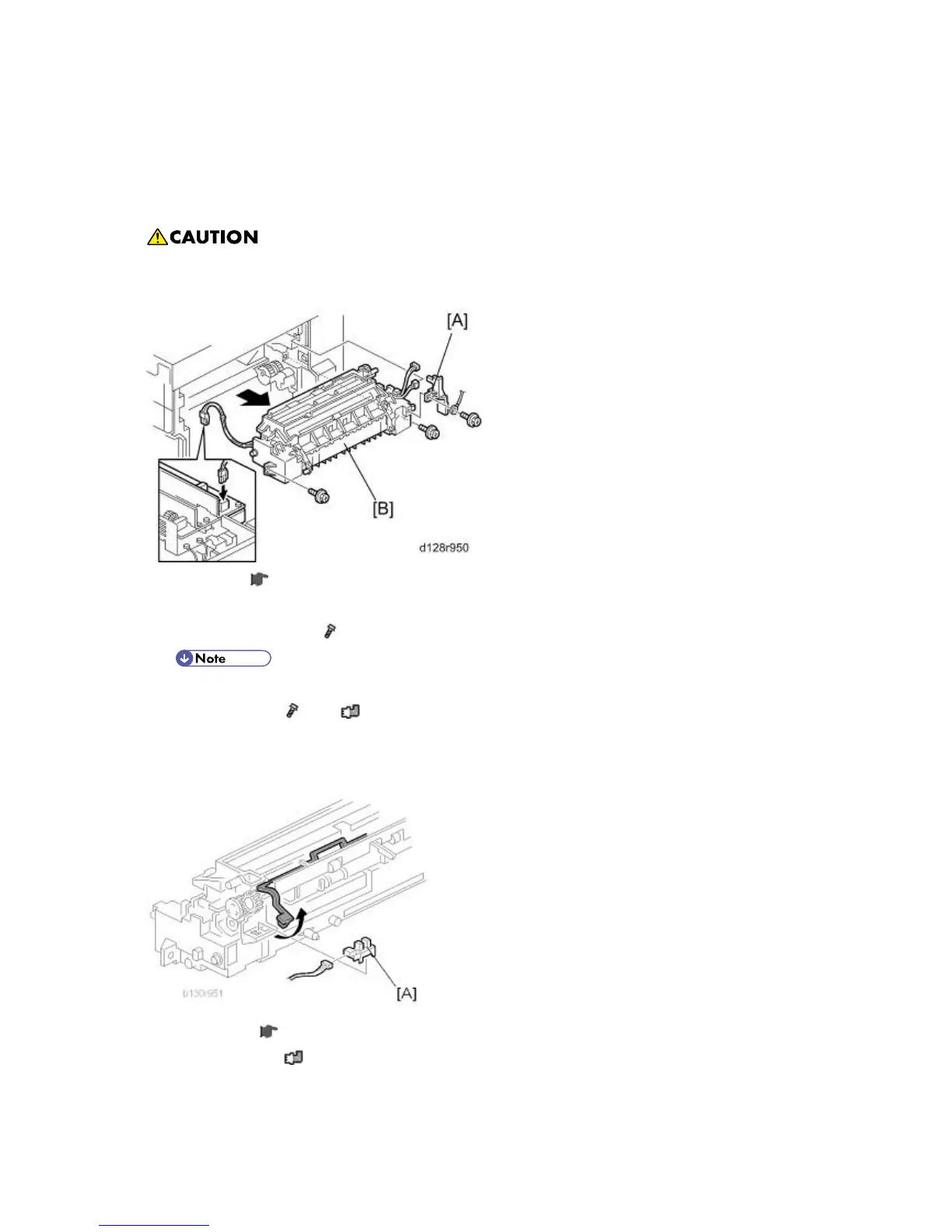

4.5 FUSING
4.5.1 FUSING UNIT
 Before handling the fusing unit, make sure that the unit is cool enough. The fusing unit
can be very hot.
1. Copy tray (
p.4-3 "Copy Tray")
2. Open the right door.
3. Connector cover [A] (
x 1)
 When reinstalling, attach the ground wire.
4. Fusing unit [B] (
x 2, x 4)
4.5.2 EXIT SENSOR
1. Fusing unit (
p.4-10 "Fusing Unit")
2. Exit sensor [A] (
x 1)

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
