Ricoh Aficio MP 301SPF Service Manual

PCU and Quenching Lamp
SM 4-17 D127/D128
Replacement
and
Adjustment

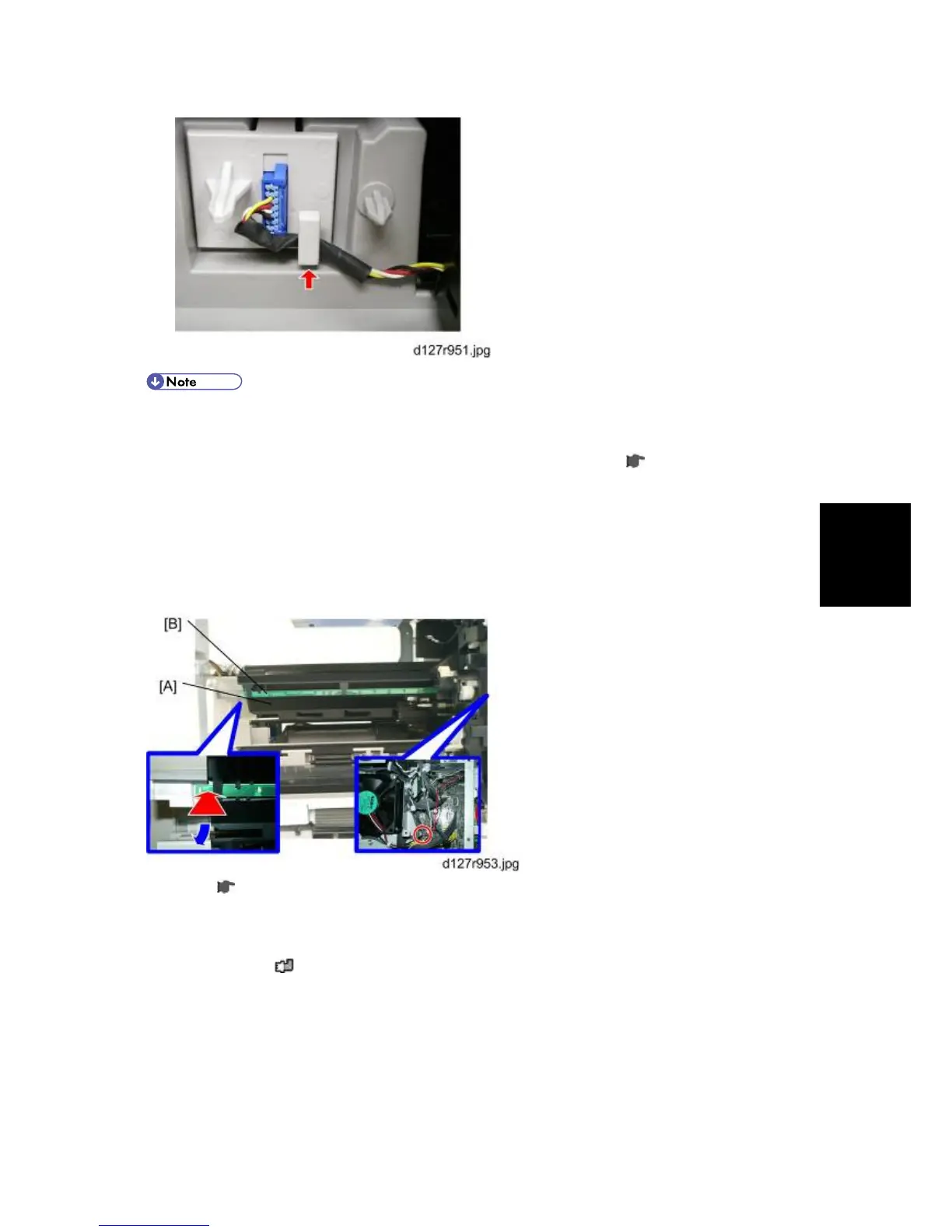

 When reinstall the PCU, be sure to hook the PCU connector cable as shown above so as
not to damage the cable.
5. When having installed a new PCU, remove the Styrofoam and tags (
p.2-5 "Copier" in the
chapter "Installation").
Initialization
After replacement, Do “SP2801-001” to initialize the copier setting for PCU.
4.6.2 QUENCHING LAMP
1. PCU (
p.4-16 "PCU")
2. Remove the Lamp Shading [A] (Adhered)
3. Put the Quenching lamp [B] out as the blue arrow shows on pushing carefully as the red
arrow shows. (
x 1)

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
