Ricoh Aficio MP171 - Exterior Covers; Front Cover

Exterior Covers
Front Cover
1. Paper Feed Tray (page 77 "Paper Feed Tray")

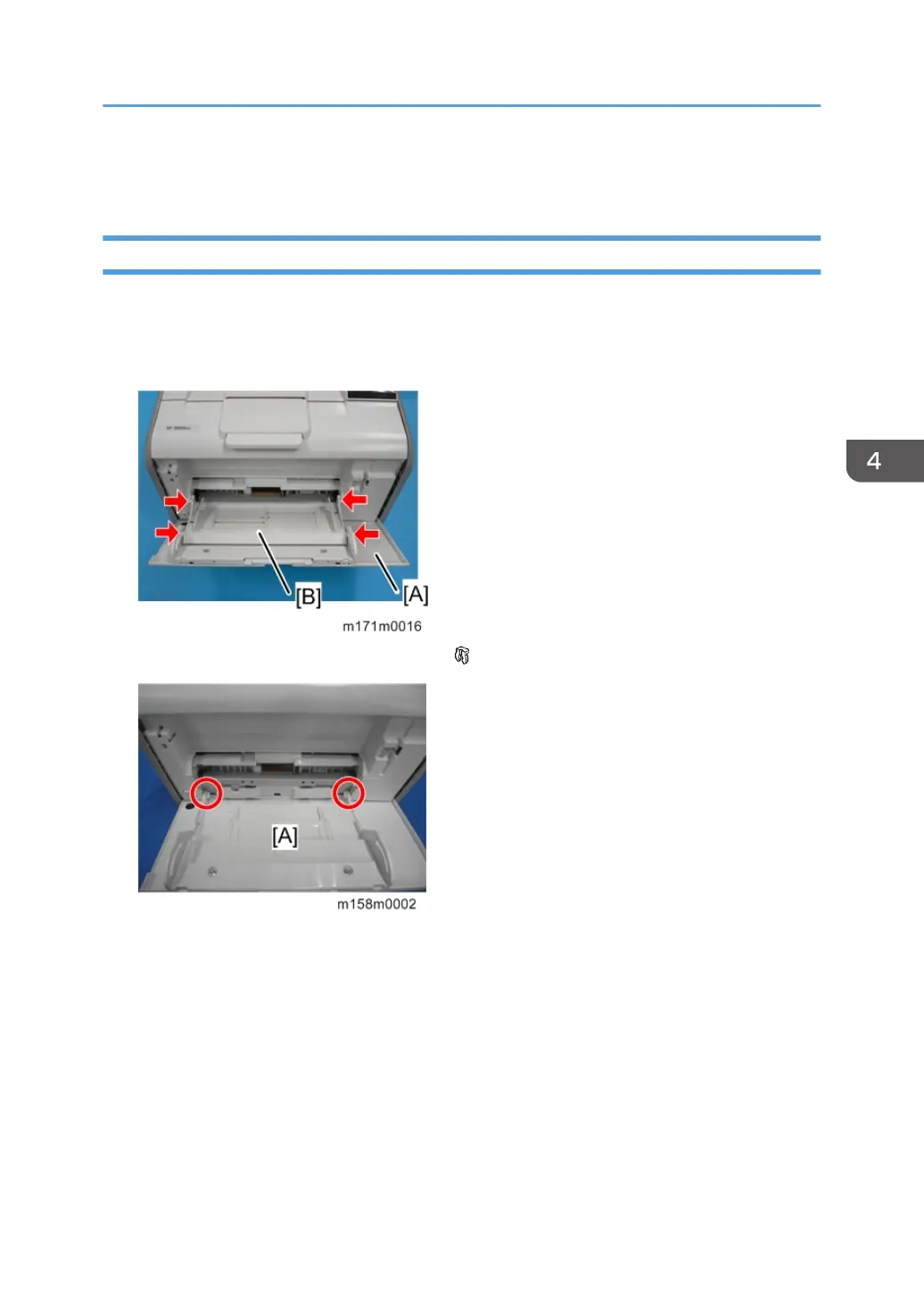

2. Open the by-pass tray [A].
3. Release four hinges indicated below to detach the paper guide plate [B].
4. Remove the clips on the by-pass tray [A] ( x 2).
Exterior Covers
35
