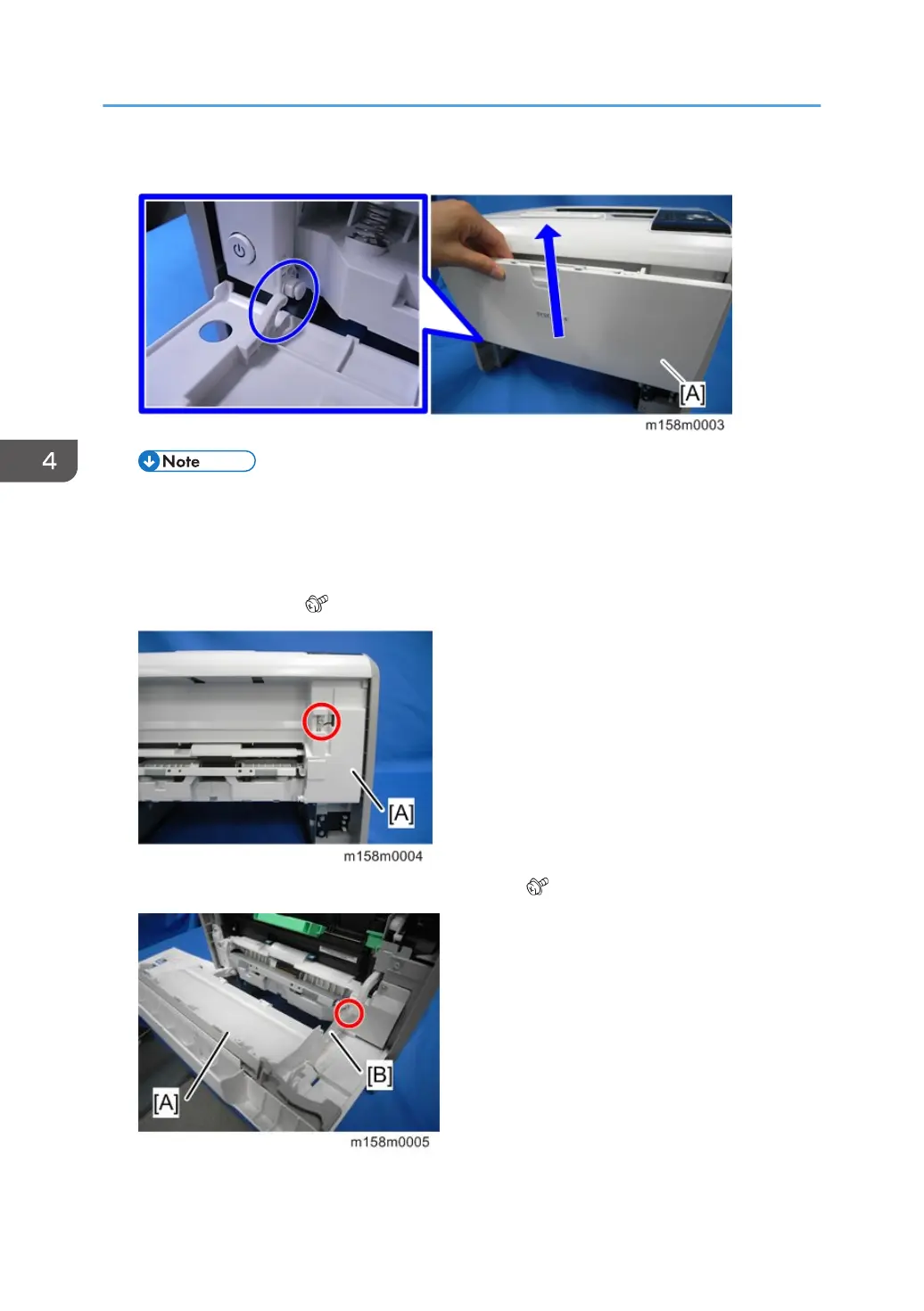

5. Release both the end hinges of the by-pass tray [A] to detach it.
• To remove the by-pass tray, lift the left hinge first to release while raising the by-pass tray
upwards.
• The left hinge is C-cut.
6. Remove the screw on the front cover [A] in order to remove the strap that ties the front
cover to the machine ( x 1).
7. Open the front cover [A] and release the strap [B] ( x 1).
