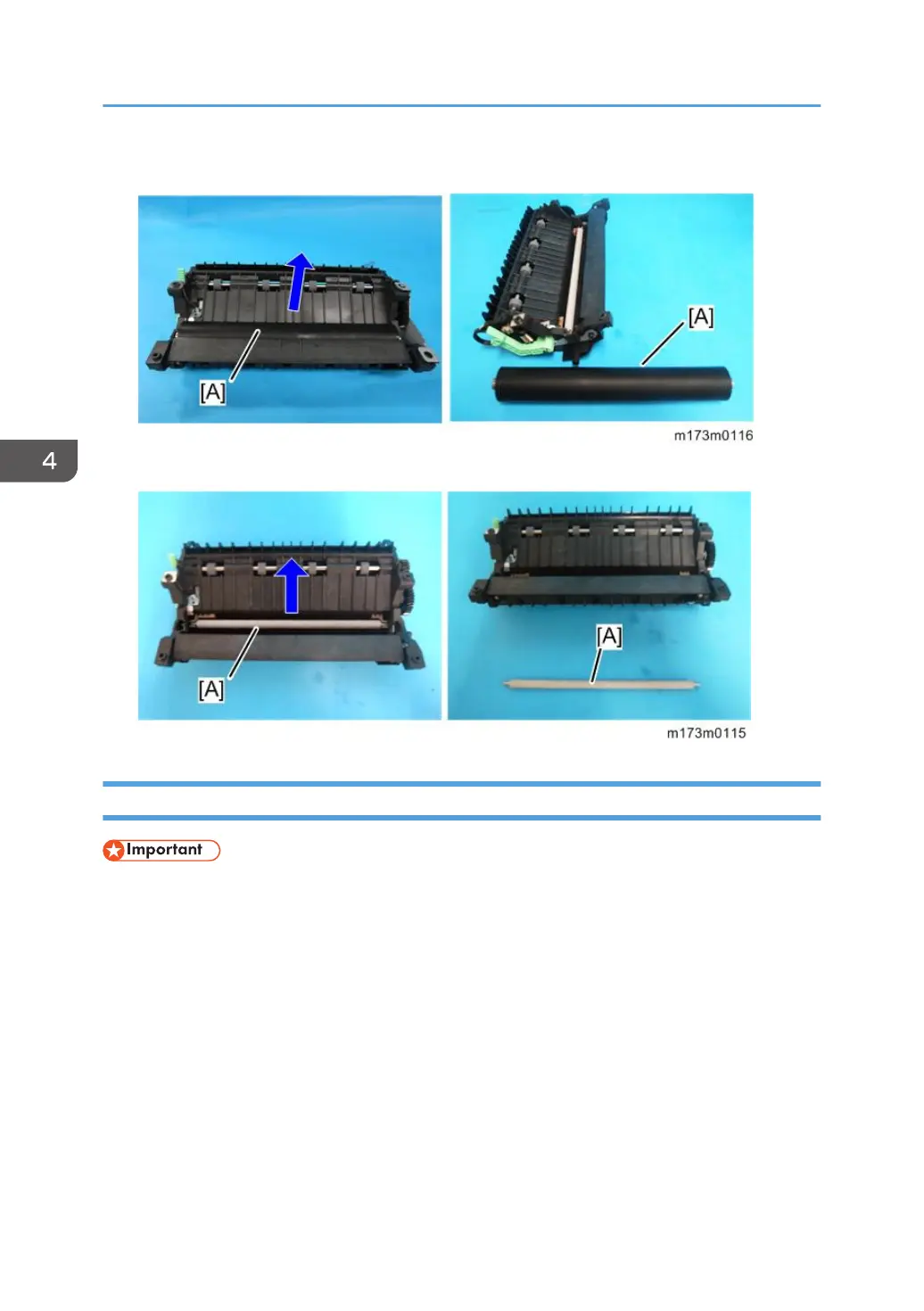

2. Fusing Pressure Roller [A]
3. Cleaning Roller [A]
Fusing Lamp, Hot Roller
• Be careful not to break the fusing lamp when removing/attaching screws.
• Insert a pin or jeweller’s screwdriver into the service hole (see the lower red circle in the photo
below), and hold the flat nut with your finger (see the upper red circle in the photo). Otherwise, the
lamp secured together with the flat nut moves with rotation of the screw, which causes a lamp
breakage.
4. Replacement and Adjustment
