Attaching 802.11b Interface Unit Type F
45
3

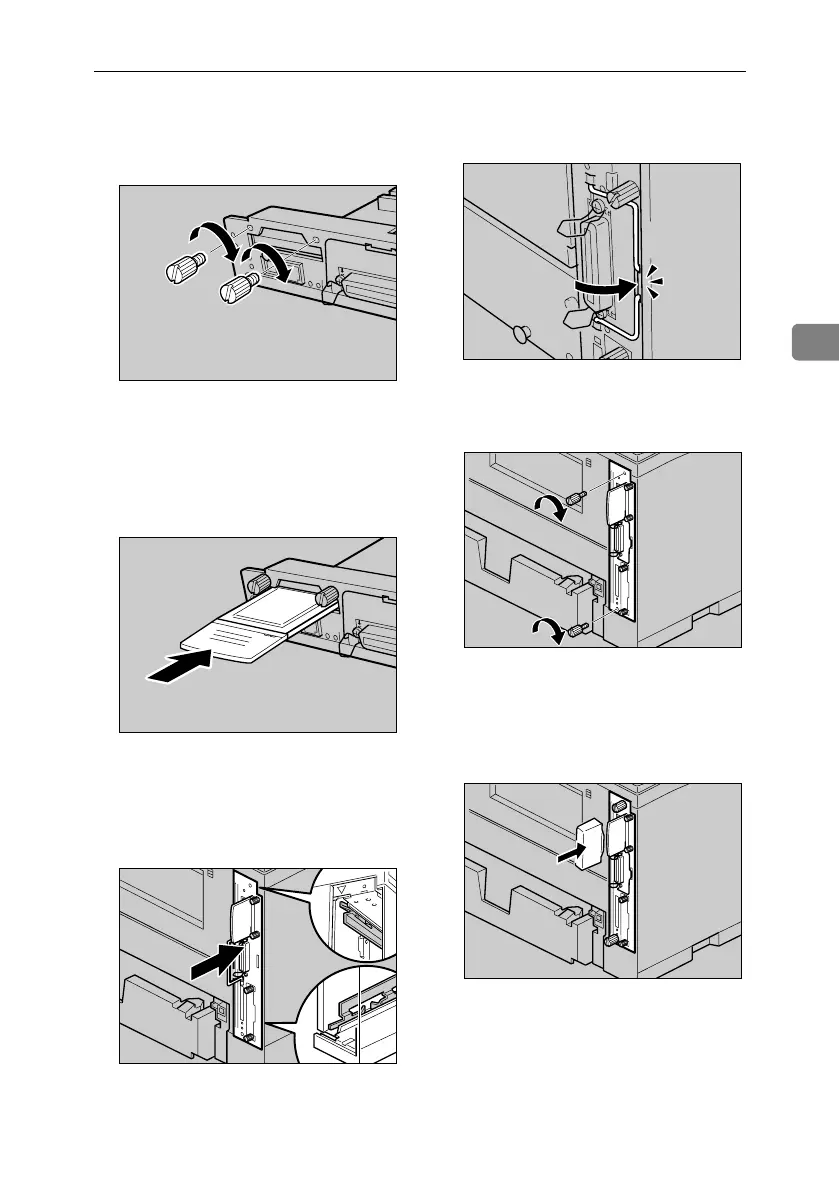

J Fasten the 802.11b Interface Unit
to the controller board with the
two screws.
K Insert the card slowly into the in-
terface unit with the label facing
down and the uneven black an-
tenna surface facing up until it
stops.
L Match the controller board to the
top and bottom rail using the “T”
mark, and then slide it into the
printer slowly until it stops.
M Push back the handle of the con-
troller board until it clicks.
N Fasten the controller board to the
printer with the two screws.
O Attach the antenna cap to the card
with the side that has both cor-
ners of the antenna cap cut out
facing the screws.
ZKGX442E
ZKGX500E
ZKGX251E
ZKGX380E
ZKGX273E
ZKGX274E
