Laser Optics
SM 3-25 G133
Replacement
Adjustment

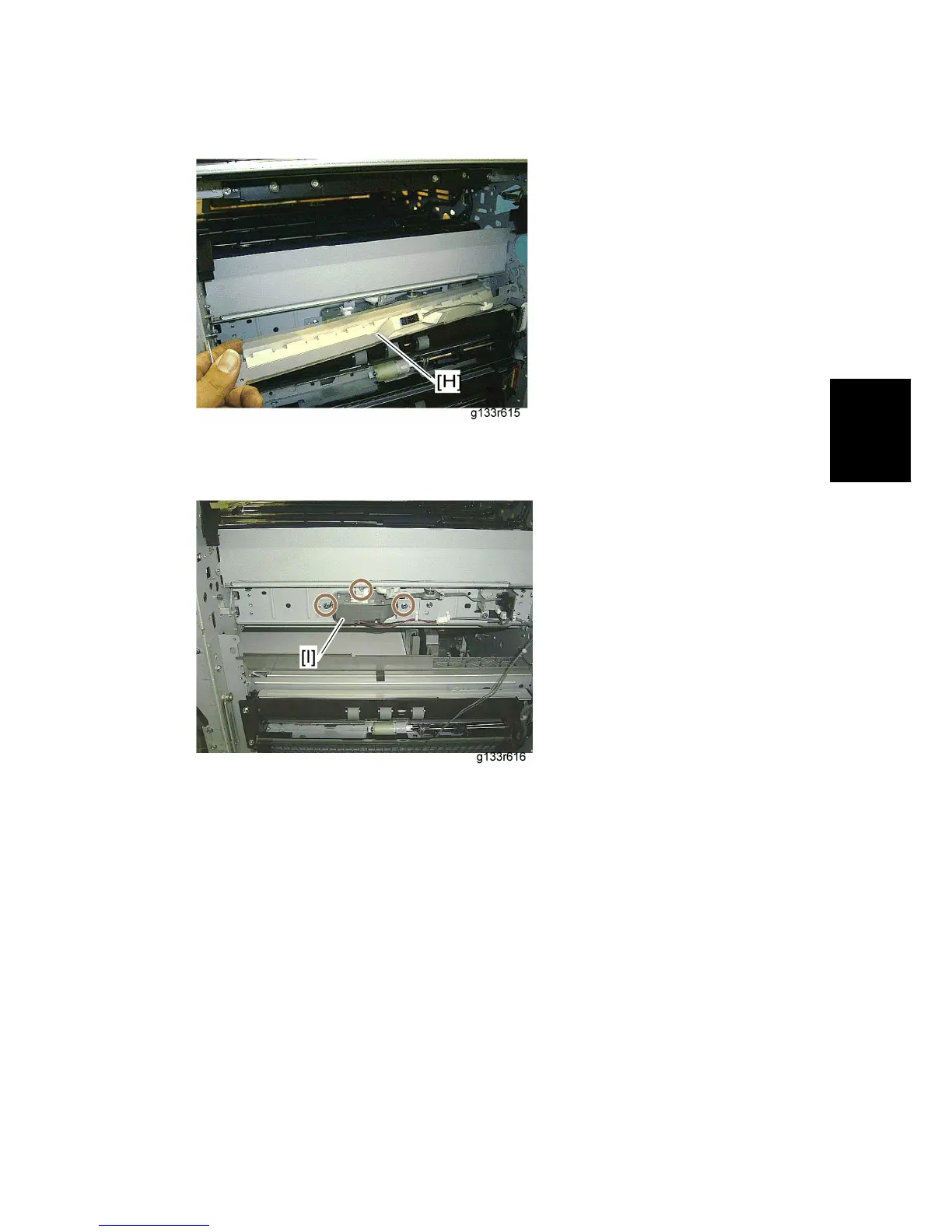

22. Registration sensor bracket [H] ( x 1, = x 2)
23. Paper feed unit ( "p.3-3 "Paper Feed Unit"")
24. Shutter motor [I] ( x 3, = x 1, x 1)
