Ricoh G133 - Toner Transport Motor

Drive Unit
SM 3-61 G133
Replacement
Adjustment
4. Disconnect the connector [A] (= x 1).

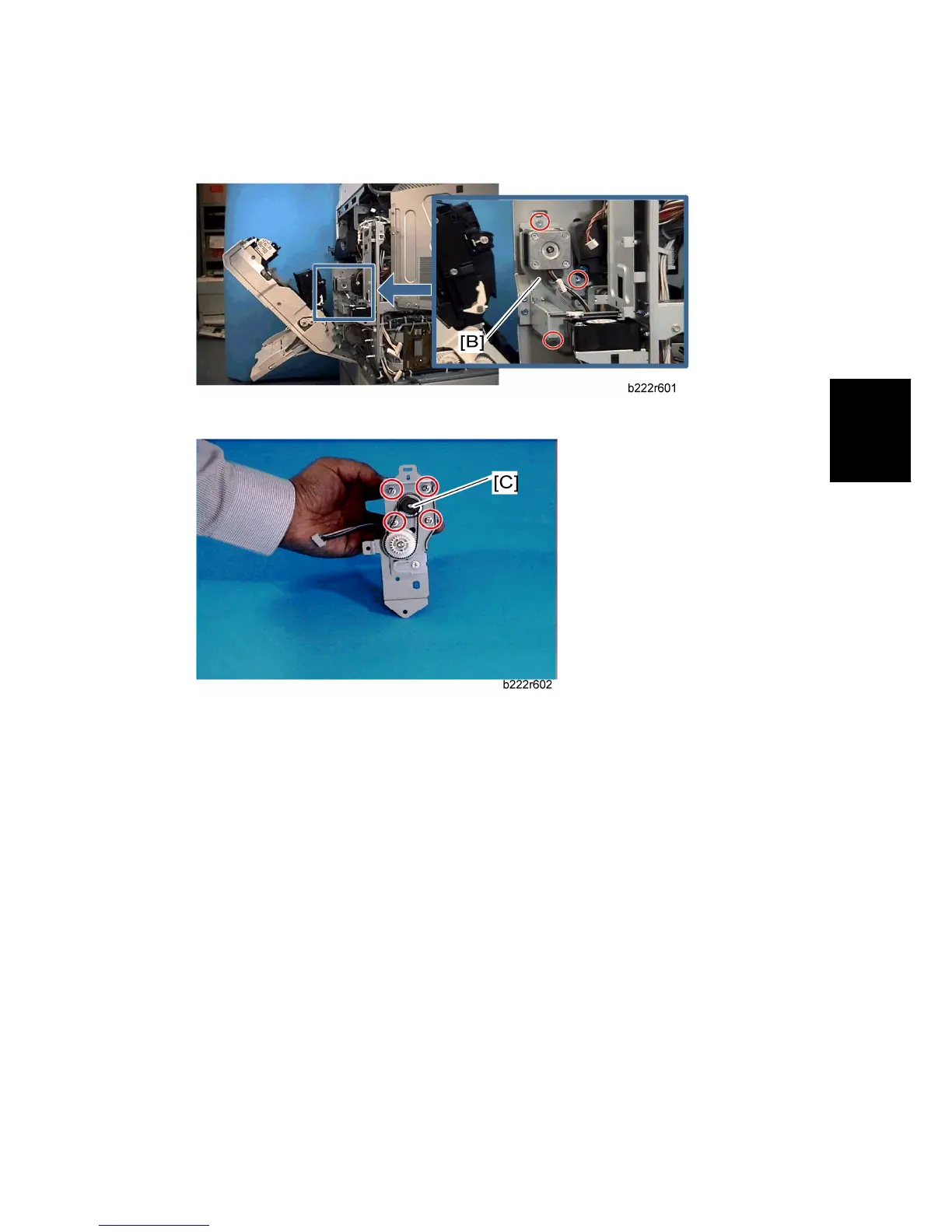

5. Duplex/by-pass motor bracket [B] ( x 3)
6. Duplex/by-pass motor [C] ( x 4)
3.9.12 TONER TRANSPORT MOTOR
1. Rear cover ( "p.3-3 "Rear Cover"")
2. Open the controller box ( "p.3-3 "Controller Box"")
