SM 5-119 G147
Service
Tables

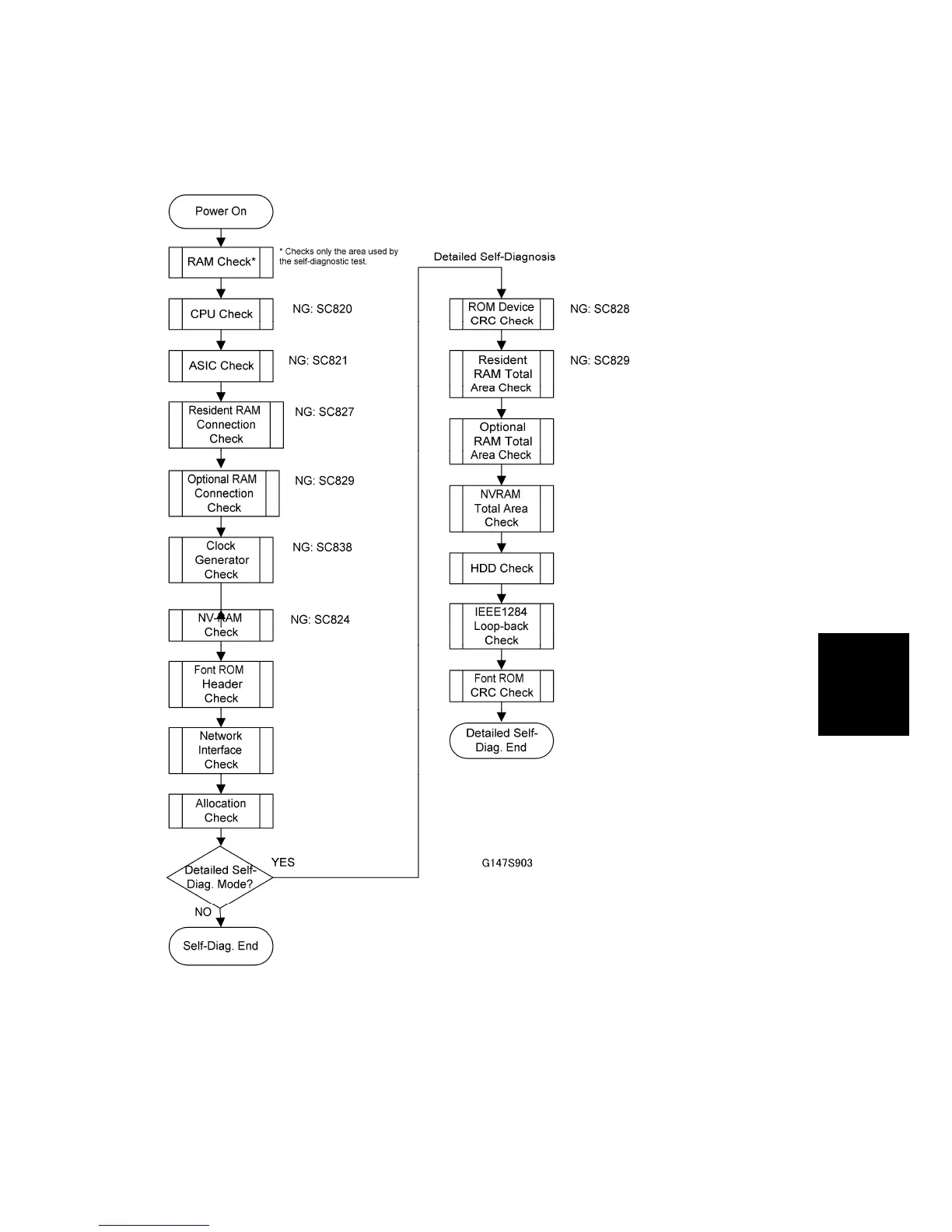

5.10.2 SELF-DIAGNOSTIC TEST FLOW
5.10.3 DETAILED SELF-DIAGNOSTIC MODE
In addition to the self-diagnostic test initiated every time the main machine is powered on,
you can set the machine in a more detailed diagnostic mode manually in order to test other
components or conditions that are not tested during self-diagnosis after power on.
