Model: M-G1a/M-G1b/M-G1L/M-G1W/R-
G1
Machine Codes:
J017/J019/J021/J023/J018
Slide 108
Registration Sensors - 1/3
 1st registration sensor detects leading edge of every sheet, and also detects width of
paper when carriage and sensor pass horizontally over vertical edge of paper as it
feeds.
Front
Back

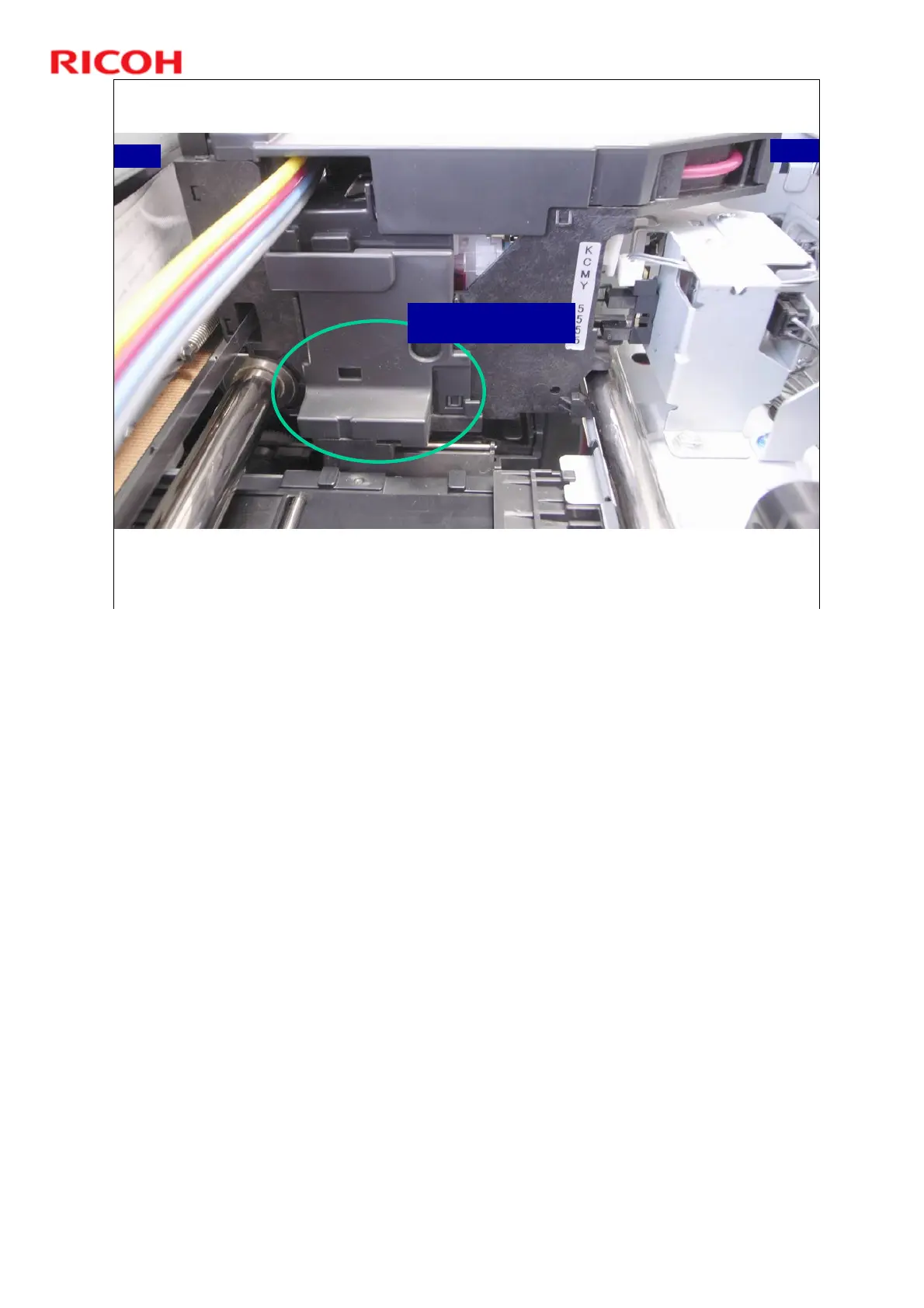

1st Registration Sensor
(cover on)
No additional notes.
