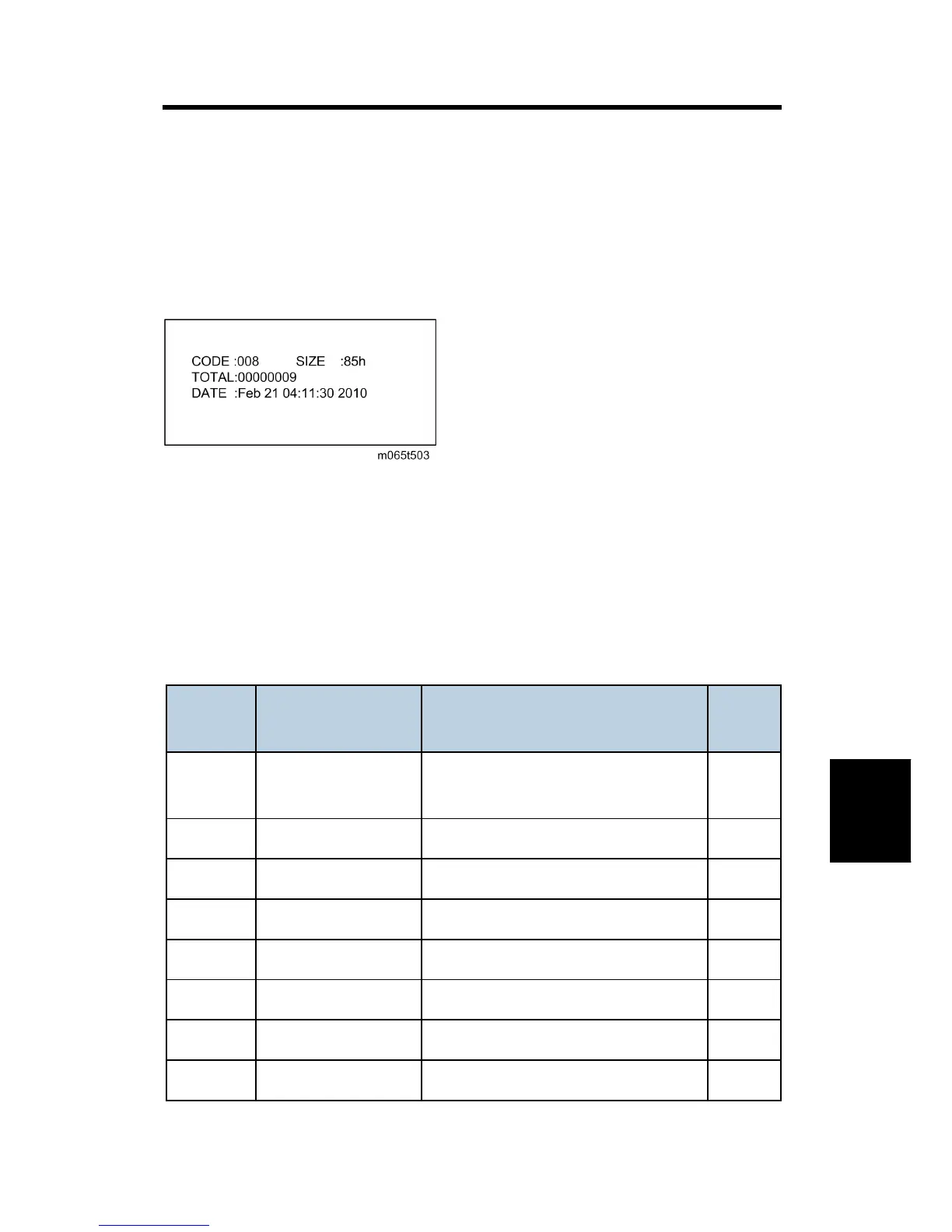

6. APPENDIX: JAM DETECTION
6.1 JAM DETECTION
6.1.1 PAPER JAM DISPLAY
SP7-507 shows the paper jam history.
CODE: indicates the jam code.
SIZE: indicates the paper size code.
Total: Indicates the total counter (SP7-502-001).
DATE: indicates the date when the jam occurred.
6.1.2 JAM CODES AND DISPLAY CODES
SP 7504 shows how many jams occurred at each location.
Jam Code
SP
Display Description
LCD
Display
7504 1 At Power On
Paper has already stayed in the paper
path at power on.
-
7504 3 Tray 1: ON Paper is not fed from tray 1. A
7504 4 Tray 2: ON Paper is not fed from tray 2. Y
7504 5 Tray 3: ON Paper is not fed from tray 3 (LCT). Y
7504 6 Tray 4: ON Paper is not fed from tray 4. Y
7504 8 Bypass: ON Paper is not fed from the by-pass tray. A
7504 9 Duplex: ON Paper is jammed at the duplex unit. Z
7504 11 V-Transport 1: ON Vertical transport sensor 1 does not A
