M126/M127/M128 4-62 SM

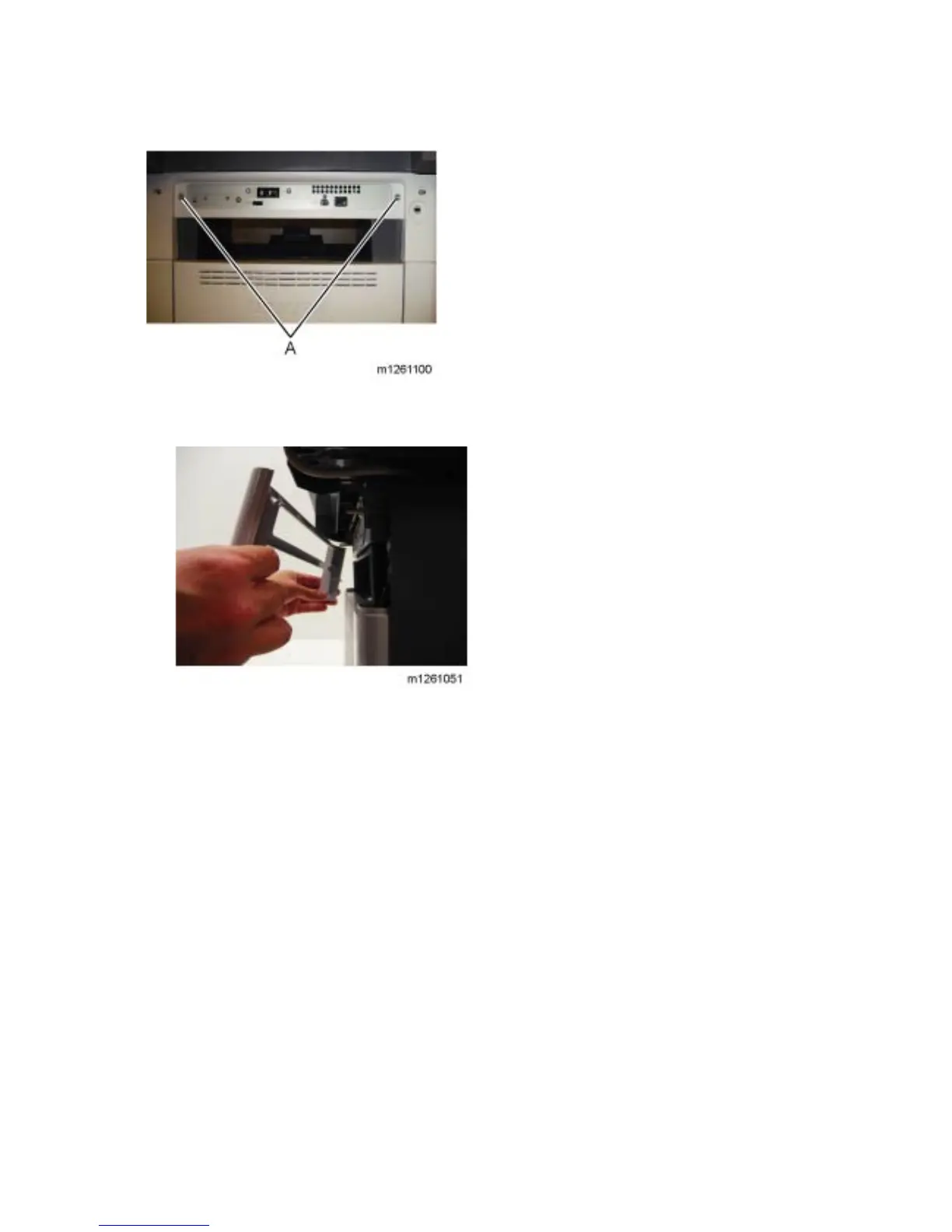

4.2.43 MID REAR COVER REMOVAL
1. Remove the two metal screws (A).
2. Pull the upper rear cover back.
3. Carefully disengage the snaps and remove the cover.
