Replacing the High-voltage Power Pack (HVPP)

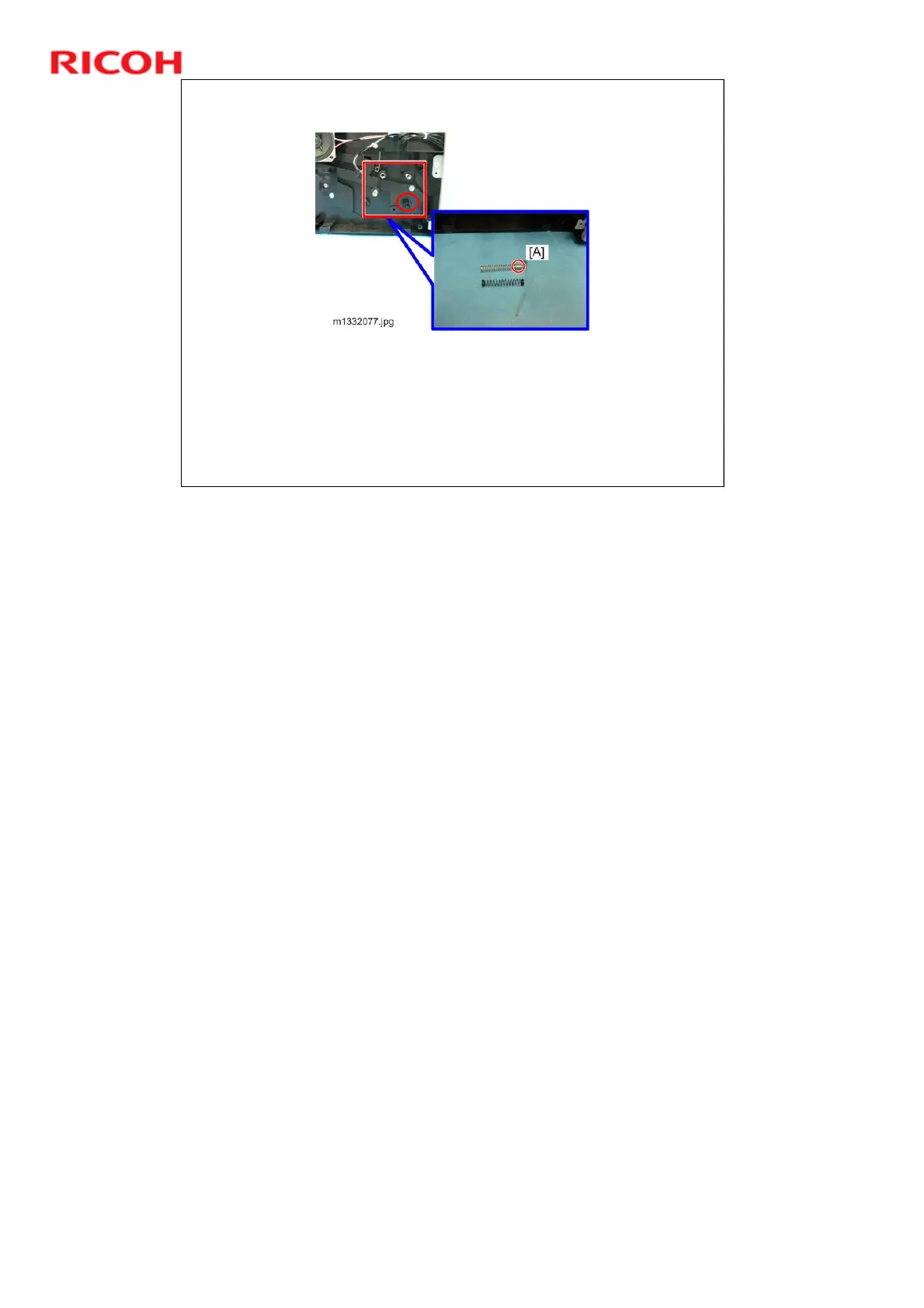

 There are four AIO springs but only three terminal nodes
[A] (the black one doesn’t have a terminal node.)
 Be sure to re-attach the black spring at the place marked
with a red circle, and then the other springs with the
terminal nodes in the other holes.
