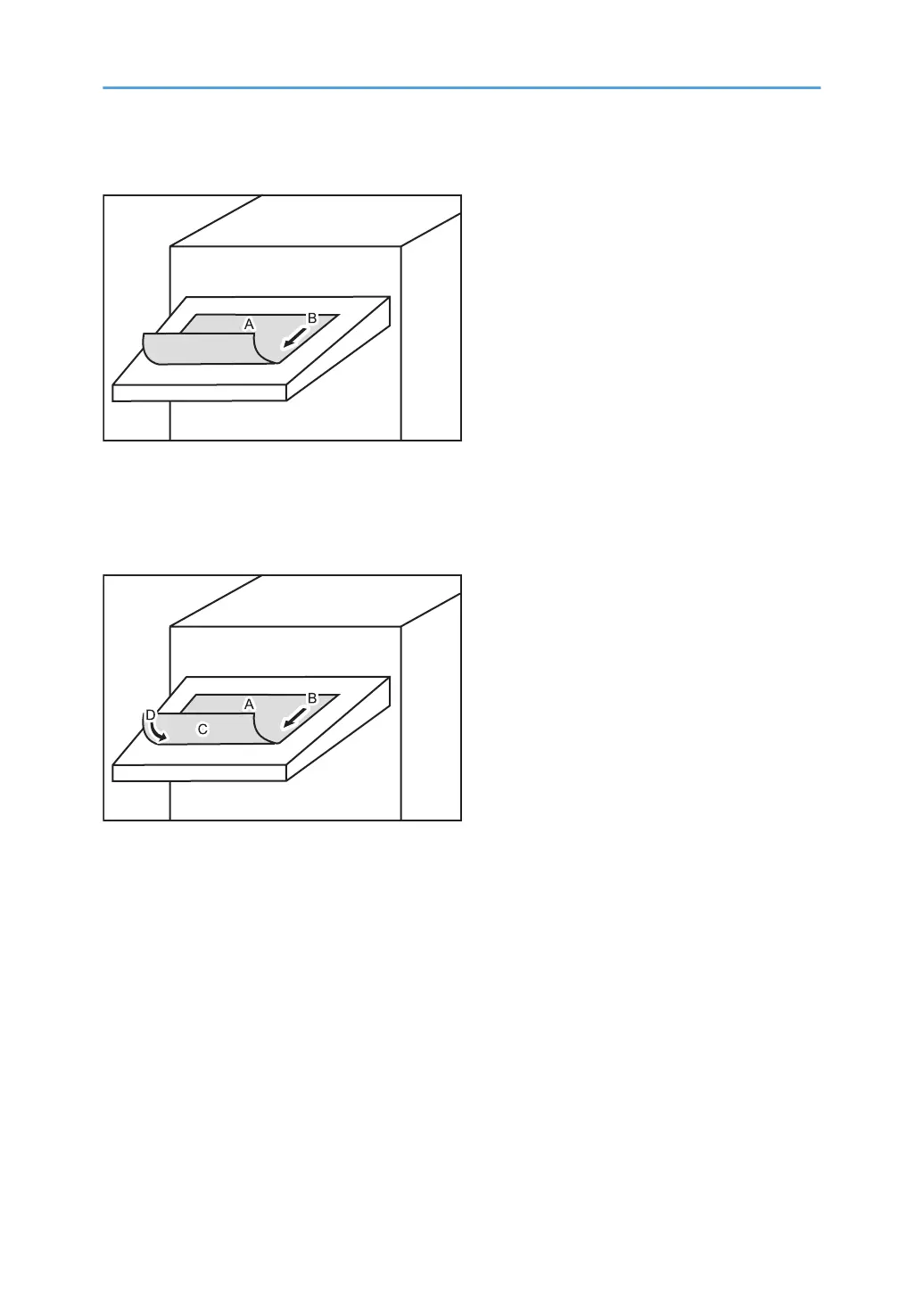

Single-sided printing: Printed side face up

DFP408

A. Side 1

B. Paper feed direction of Side 1

Duplex printing: Printed side face up

DFP409

A. Side 1

B. Paper feed direction of Side 1

C. Side 2

D. Paper feed direction of Side 2
