5. Press [White Ink Displacement].

6. Confirm the message on the control panel, and then press [Execute].

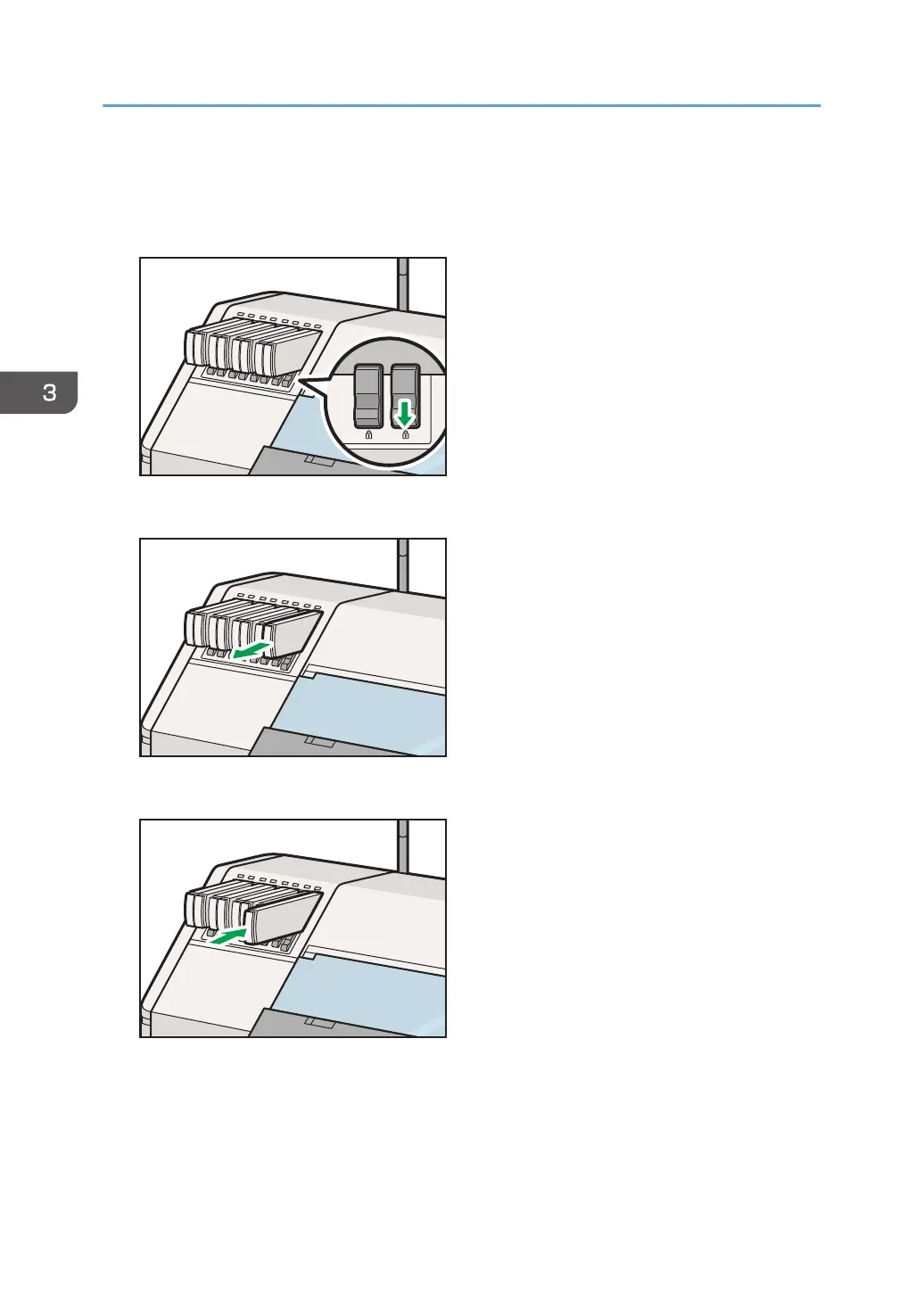

7. Slide down all lock levers for the white ink cartridges to unlock the cartridges.

DWT172

8. Take out all white ink cartridges.

DWT173

9. Fully insert the displacement cartridge into its cartridge holder until it stops.

DWT174

3. Convenient Usage

122
