Programmable Relay ● User Manual for ELC, EXM and PR Series 109 2020 v6.0 ● © Rievtech Co.,
Ltd. ● www.rievtech.com
The off-delay time T is triggered when the status at input
Trg changes to 0 before the time T
L
has expired.
Output Q is reset when the Ta = T.
Before the off-delay time (T - T
!
) has expired, you can
output an off pre-warning that resets Q for the duration
of the off-pre-warning time T
!L
.
A further signal at input Trg always resets T and output Q.
Caution
The time base for the T, T
!
and T
!L
must be identical.
If retentivity is not set, output Q and the expired time are
reset after a power failure.

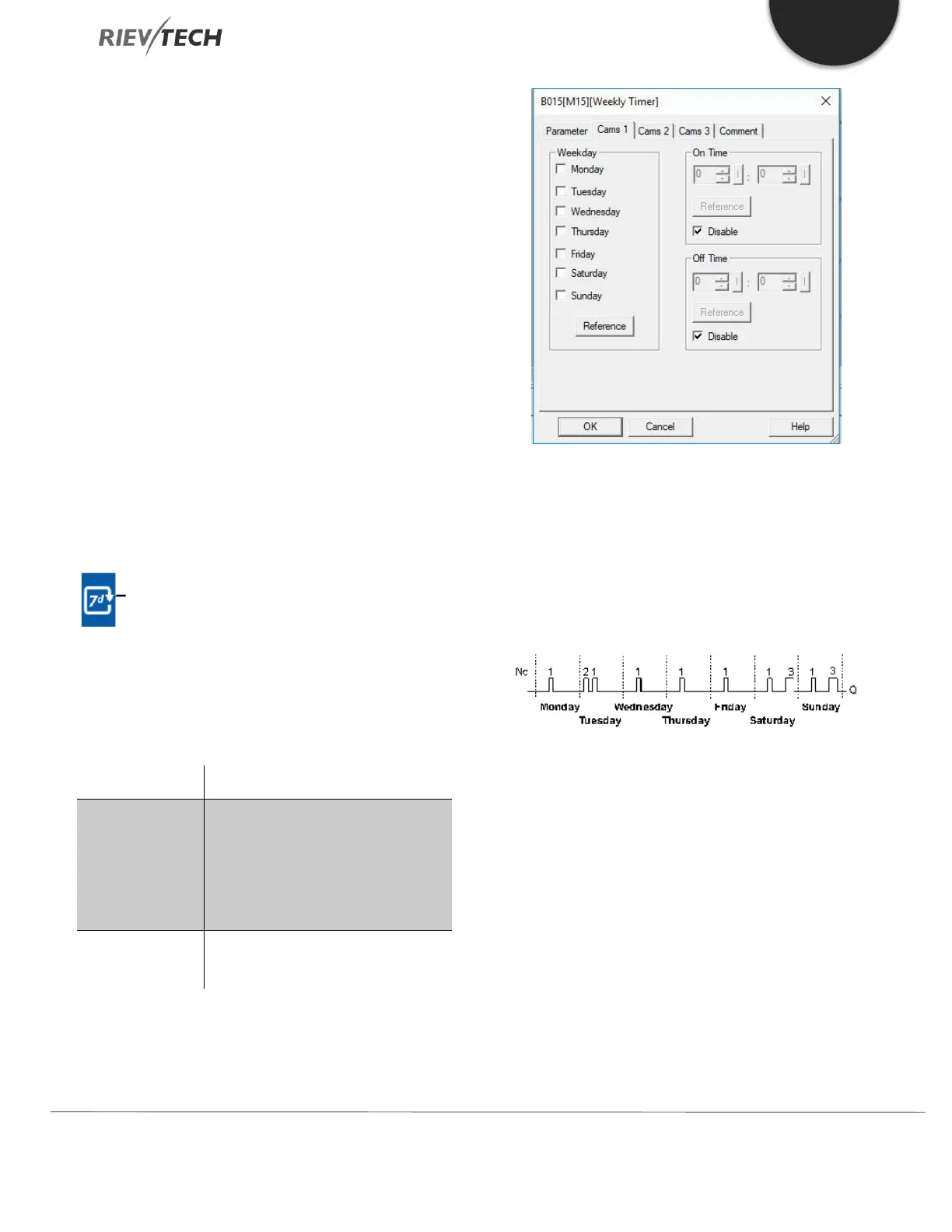

Weekly Timer
Description of function
The output is controlled by means of a configurable on/off
date. The function supports any combination of weekdays.
Connection
Description
Parameter
At the No1, No2, No3 (cam)
parameters you set the on and off
triggers for each cam of the weekly
timer. The parameter units are the
days and the time-of-day.
Output Q
Q is set when the configured cam
is actuated.
Parameter
You can configure a time hysteresis for each individual cam
in parameter mode. For information about how to modify,
refer to chapter 4.2.2, please.
Timing diagram (three practical examples)
No1: Daily: 06:30 h to 08:00 h
No2: Tuesday: 03:10 h to 04:15 h
No3: Saturday and Sunday: 16:30 h to 23:10 h
Description of the function
Each weekly timer is equipped with three cams. You can
configure a time hysteresis for each individual cam. For
the cams, you set the on and off hysteresis. The weekly
timer sets the output at a certain time, provided it is not
already set.
