Programmable Relay ● User Manual for ELC, EXM and PR Series 146 2020 v6.0 ● © Rievtech Co.,
Ltd. ● www.rievtech.com

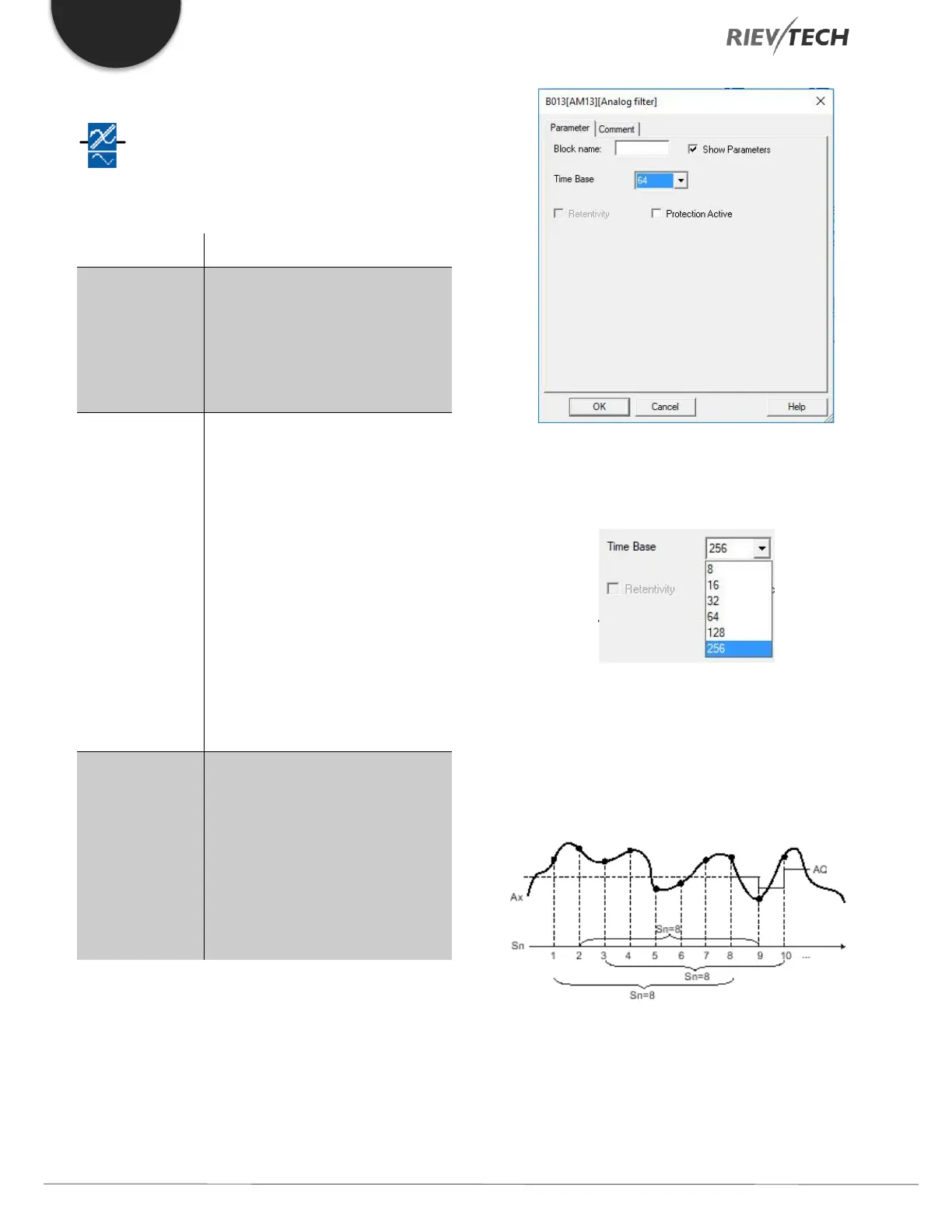

Analogue Filter
Description of function
Connection
Description
Input Ax
Analogue Inputs
Analogue Outputs
Analogue Flags
The block number of a function
with analogue output
Parameter
Sn (Number of samples): determines
how many analogue values are
sampled within the program cycles
that are determined by the set
number of samples. xLogic samples
an analogue value within every
program cycle. The number of
program cycles is equal to the set
number of samples.
Possible settings:
8, 16, 32, 64, 128, 256
Output AQ
AQ outputs an average value of the
analogue input Ax over the current
number of samples, and it is set or
reset depending on the analogue
input and the number of samples.
* Analog inputs: 0 to 10 V
corresponds with 0 to 1000
(internal value).
Parameter
You can set the number of samples to the following values:
After you set the parameter, the analogue filter calculates
the average value of the samples and assigns this value to
AQ.
Timing diagram
Description of function
