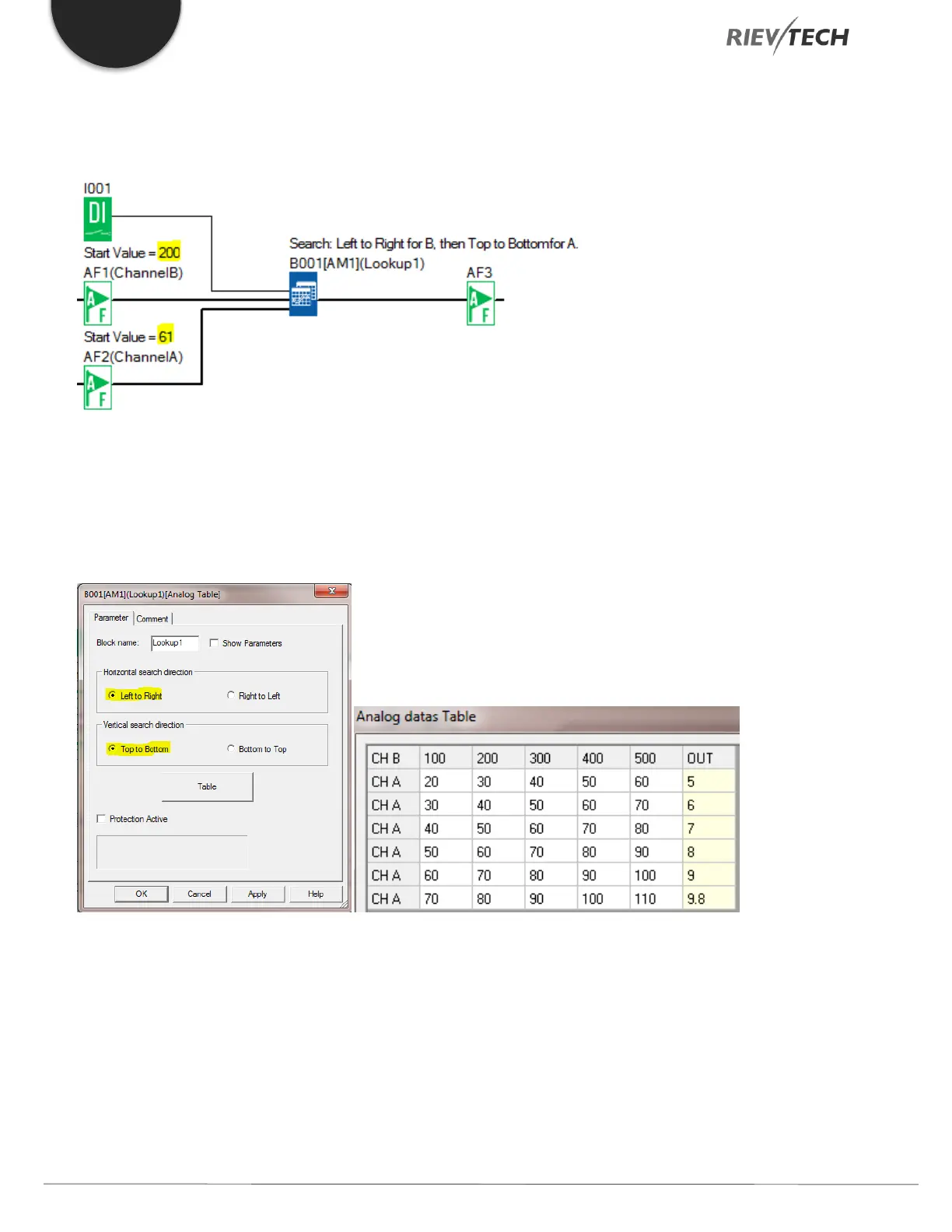

Example Use of Analogue Data Table
Program
In the above program, AF1 has a Start Value of 200 (Channel B) and AF2 has a Start Value of 61 (Channel A). When
the digital input I001 is On (High), the analogue table will look-up the values, B followed by A, and output the table
value, which will be stored in AF3.
Table Configuration
When DI1 = On, the table will be searched for the value of Channel B (200) from Left to Right and then for the value of
Channel A (61) from Top to Bottom. In this example the value passed to AF3 will be 8 * 100 = 800.
