If B006 is enabled, the master will read the AI1 value
(Modbus address 4x1024) of slave3 and save into local
AF3.
Slave1--Slave3 Program is the same.
Example 2: One master CPU (TCP Client) connect with 3
slaves CPUs (TCP Servers)

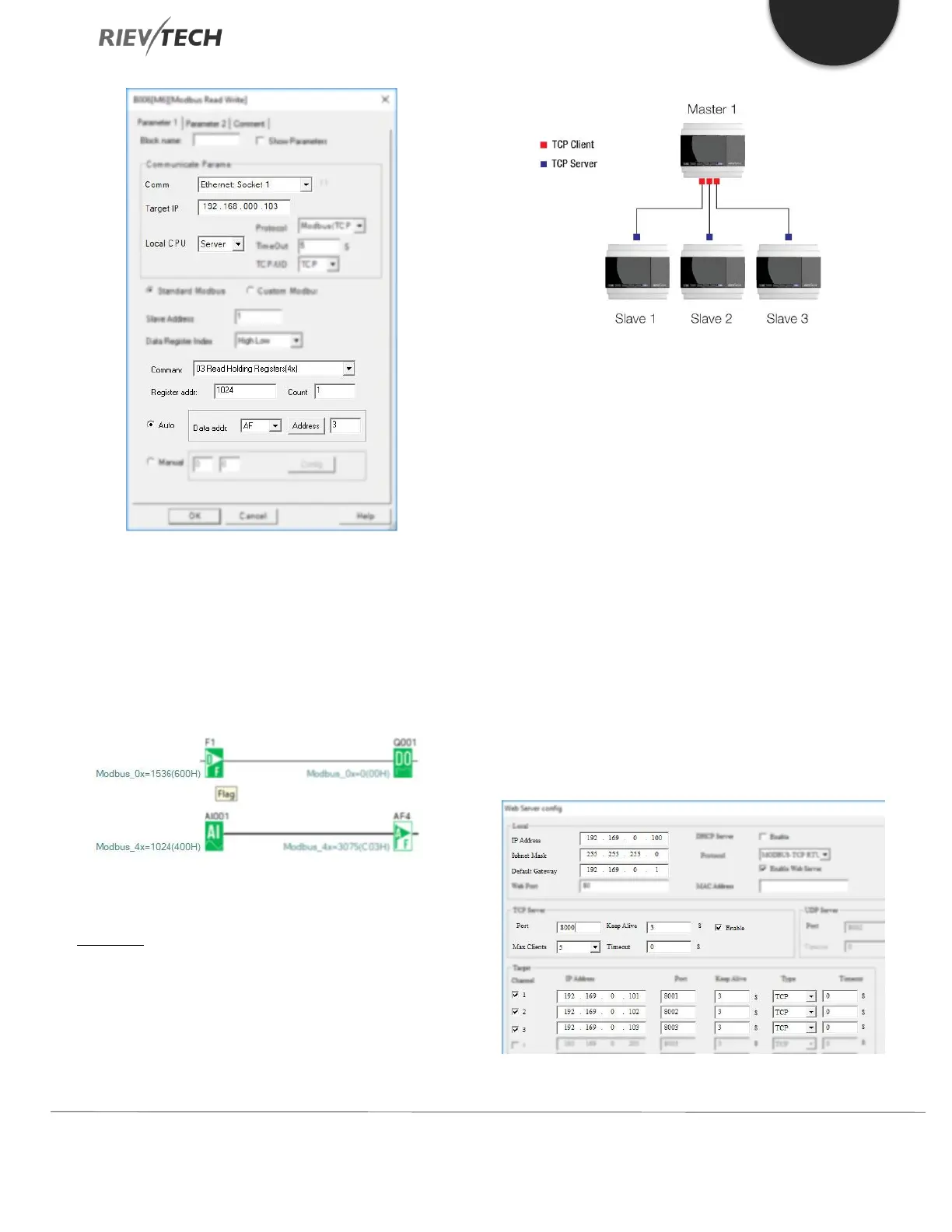

Connection Diagram:
Requirement:
1.If I1 of Master is ON/OFF, the Q1 of slave1---slave3 are
ON/OFF.
2.Read the AI2 value from the slave1--slave3 to master
and display.
Step1: Configure the IP configuration of the PLCs.
Master
IP: 192.168.0.100
Target server 1 IP :192.168.0.101 port 8001
Target server 2 IP :192.168.0.102 port 8002
Target server 3 IP :192.168.0.103 port 8003
