B006 is used to read AI1 value of slave3 then save into
AF3, the Remote 3 is the target3 in the network parameter
settings.
Slave1--Slave3 Program is the same.
Example3: One Master CPU (UDP Server) connect with 3
Slave CPUs (UDP Clients)

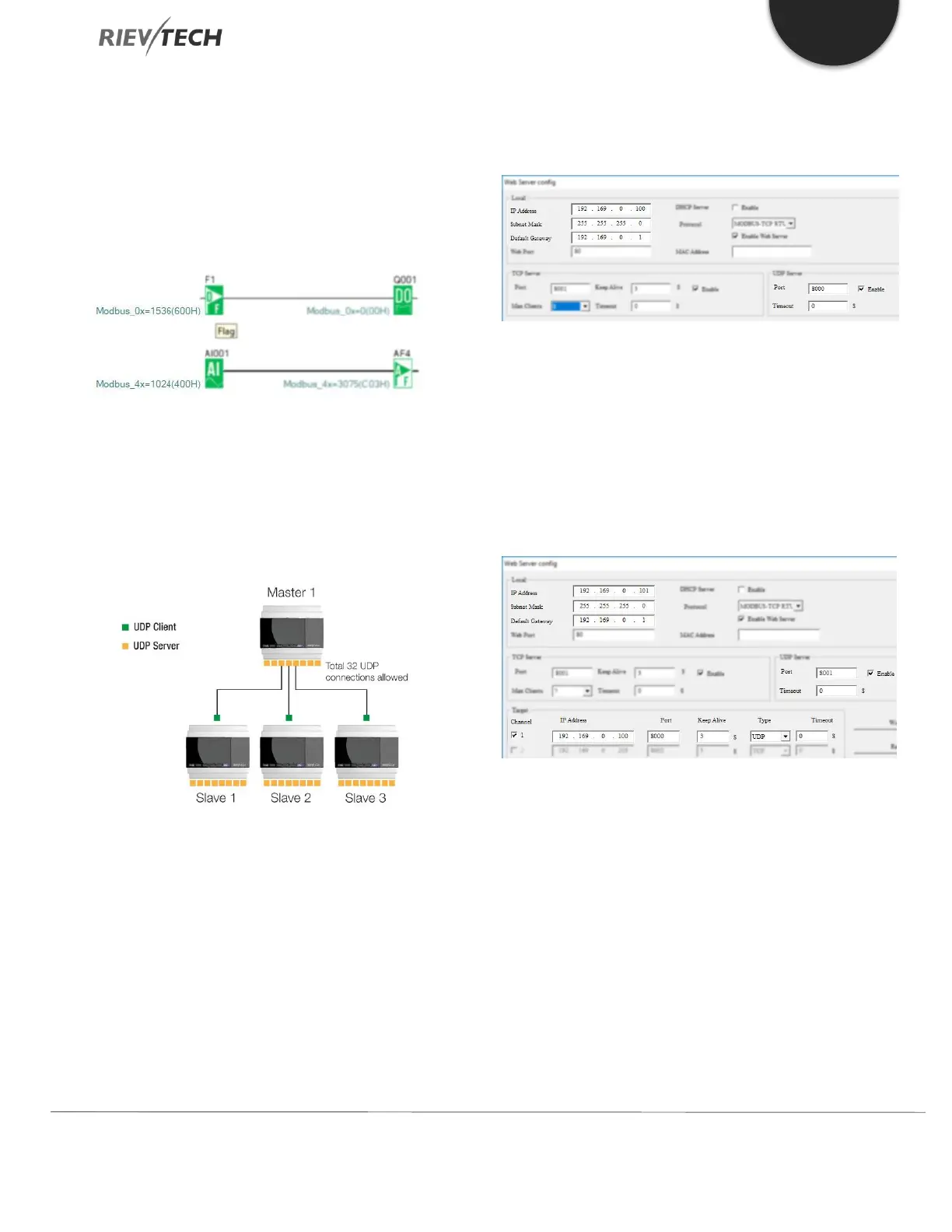

Connection Diagram:
Requirement:
1.If I1 of Master is ON/OFF, the Q1 of slave1---slave3 are
ON/OFF.
2.Read the AI2 value from the slave1--slave3 to master
and display.
Step1: Configure the IP configuration of the PLCs.
Master
IP: 192.168.0.100
UDP Server port 8000
Slave1:
IP:192.168.0.101 UDP Port 8001
Target1 IP address:192.168.0.100. UDP port 8000
Slave2:
IP:192.168.0.102 UDP port: 8002
Target1: 192.168.0.100 UDP port:8000
