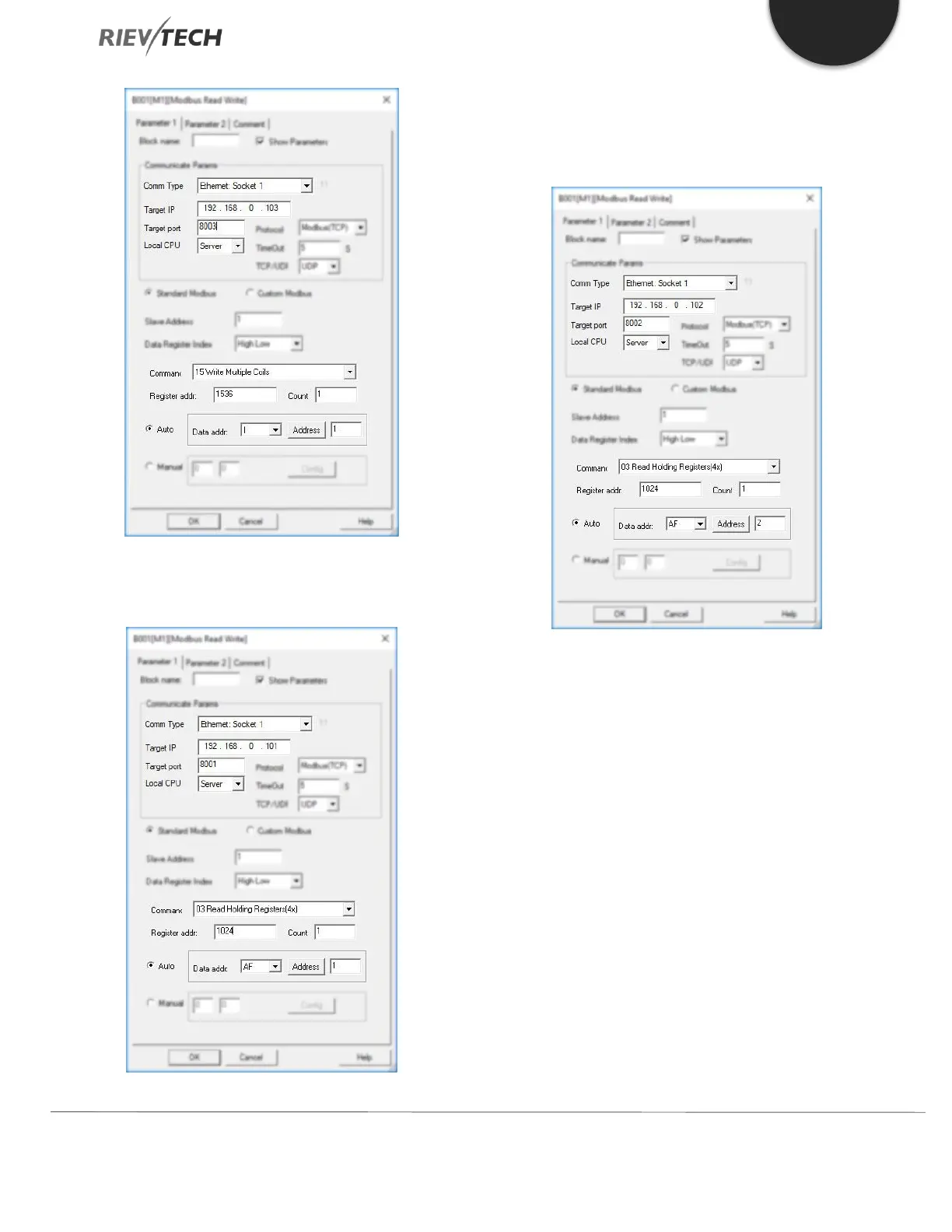

B003 is used to transfer the I1 status to the F1 of slave3
(slave3 IP 192.168.0.103, UDP port is 8003)
B004 is used to read the AI1 value from slave1, then save
it into AF1 of master (slave1 IP 192.168.0.101, UDP port is
8001)
B005 is used to read the AI1 value from slave2, then save
it into AF2 of master (slave1 IP 192.168.0.102, UDP port is
8002)
