Print Setting
DS1000E, DS1000D series oscilloscopes support print function. Please execute print
operation according to the following steps:
1. Connect printer:
DS1000E, DS1000D series oscilloscopes provide two print modes: “Normal” and
“PictBridge”.
 If use PictBridge printer, please select “PictBridge” mode, and then connect the
oscilloscopes regarded as “Device equipment” and printer via USB Device port
on the rear panel.

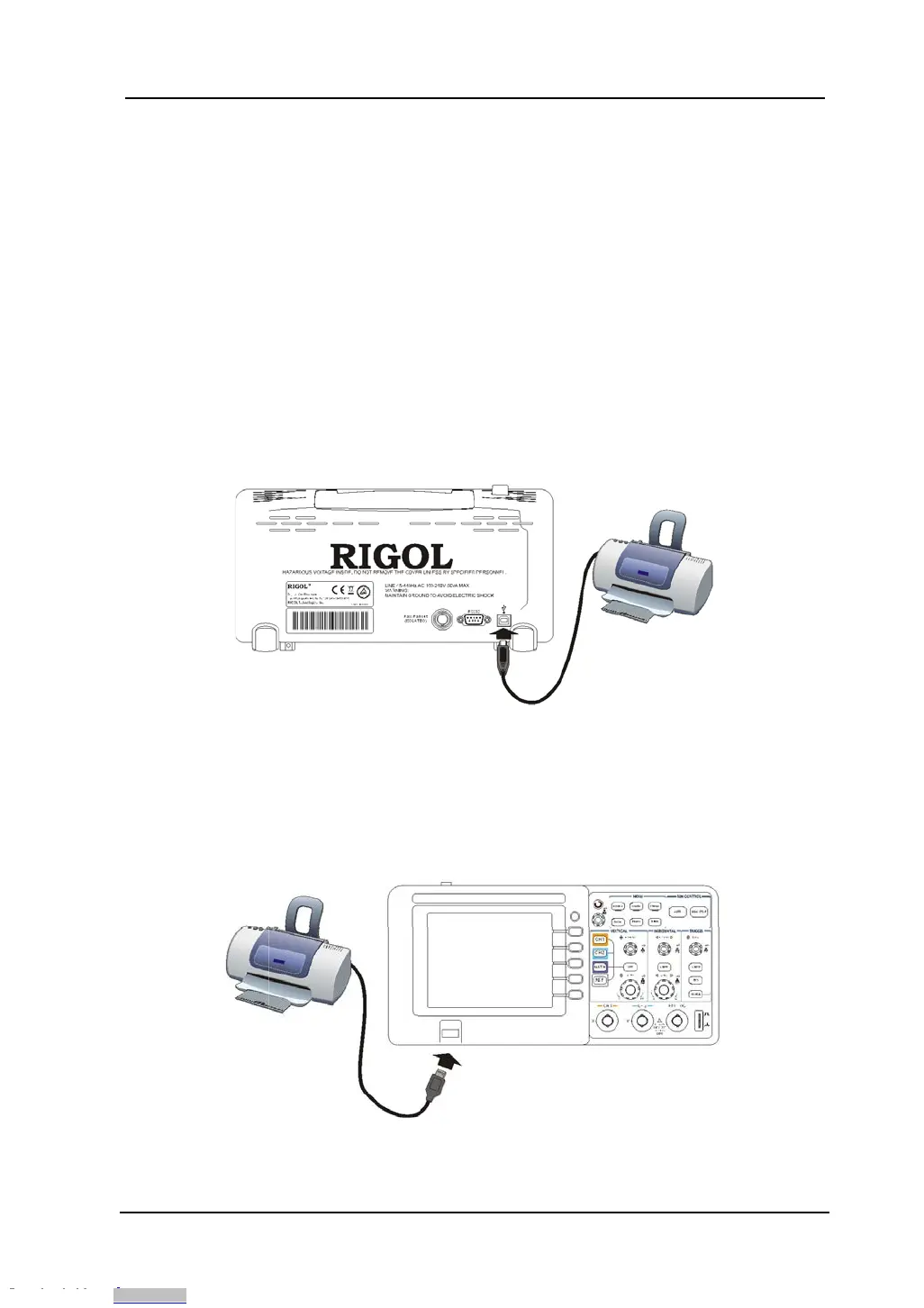

Figure 2- 108
PictBridge print
 If use Normal printer, please select “Normal” mode, and then connect the
oscilloscopes regarded as “Host equipment” and printer via USB Host port on
the front panel.
Figure 2- 109
Normal print
