Flue Installaon with Concentric Venng (indoor models only)

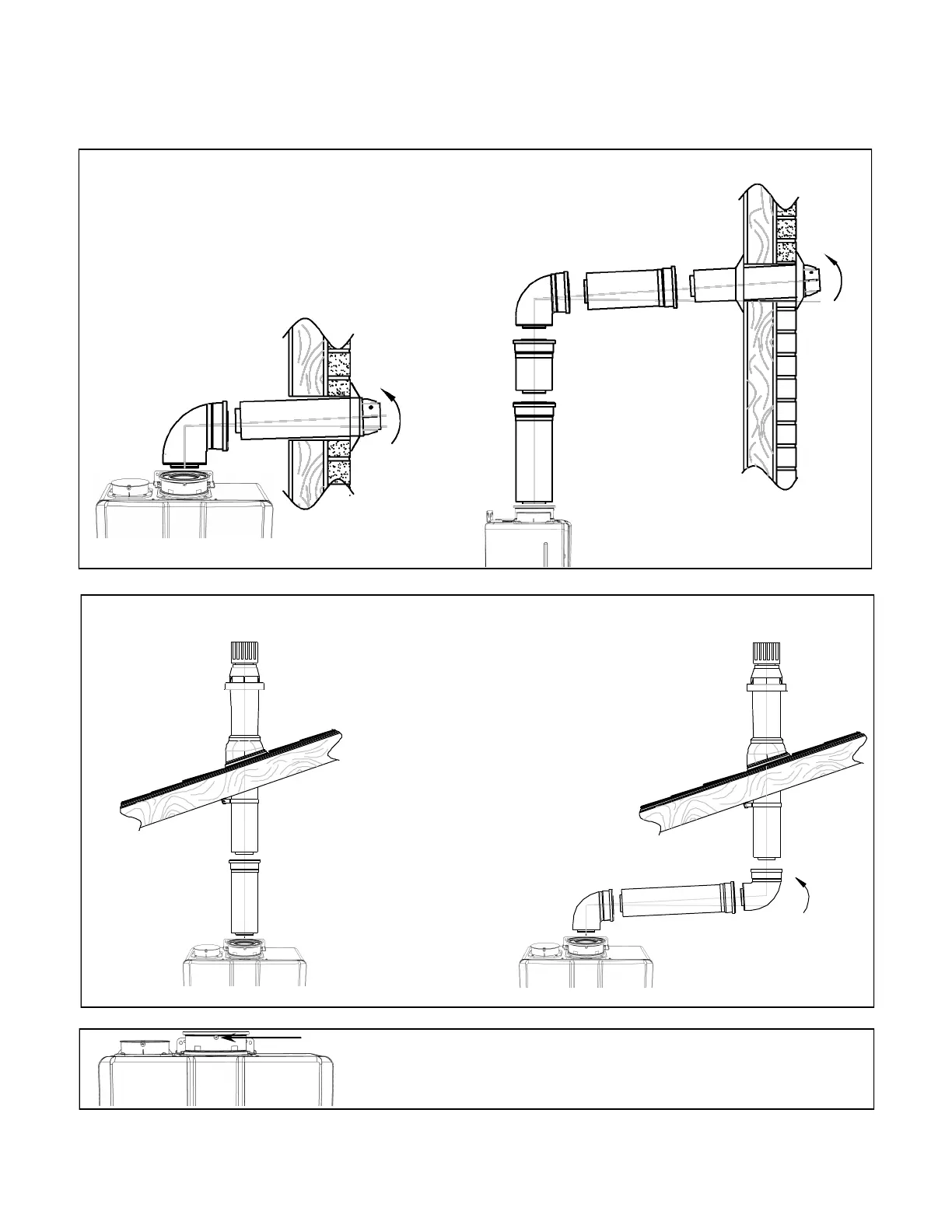

Install the venng terminaon according to the diagrams and instrucons below.
Secure the first vent component to the water heater
with one self-tapping screw at the hole.


Slope the venting 1/4” per foot toward the
appliance according to the vent manufacturers
installation instructions.
Dispose of condensate per local codes.
Slope the venting 1/4” per foot toward the
appliance according to the vent manufacturers
installation instructions.
Dispose of condensate per local codes.
Securing Screw
