32 Rinnai I-Series Condensing Boiler Combi Manual

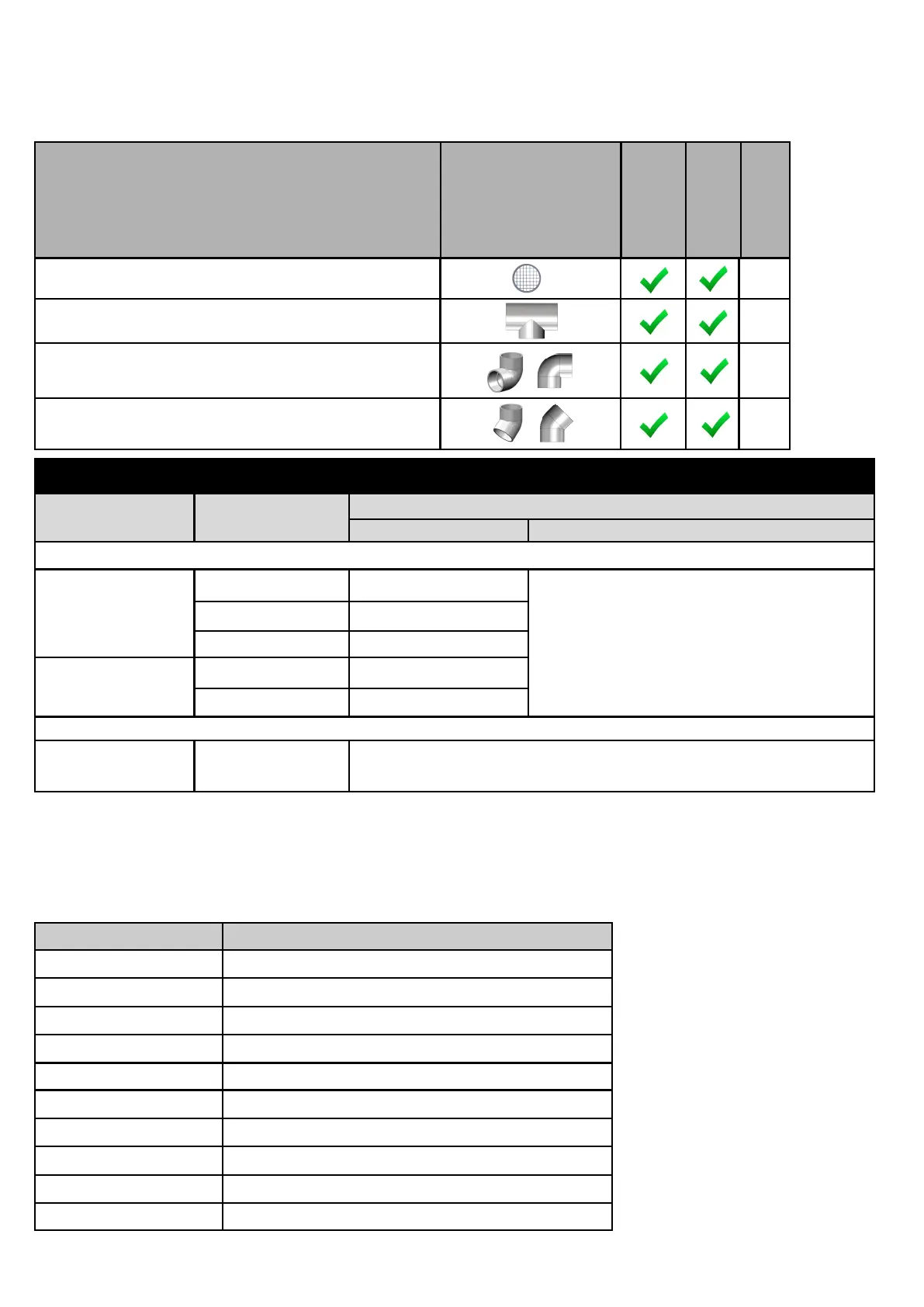

VARIOUS 2 in. OR 3 in. SCHEDULE 40 PVC/CPVC TERMINATIONS
Approved PVC/CPVC Vent and Air Piping Material
Item Material
Standard for Installaon in North America
United States Canada
Thermoplasc Piping Materials
Vent or Combuson
Air Intake Pipe and
Fings
PVC Schedule 40 ANSI/ASTM D1785
Thermoplasc vent pipe must be
cered to ULC S636. Intake pipe may be of
the materials listed in this table.
PVC-DWV ANSI/ASTM D2665
CPVC Schedule 40 ANSI/ASTM F441
PVC Pipe Cement
and Primer
PVC ANSI/ASTM D2564
CPVC Schedule 40 ANSI/ASTM F493
PVC Vent Screens
Terminaon Vent
Screens
Polyethylene
• 2 in. Vent Screens (included in carton box) (IPEX Part Number: 196050)
• 3 in. Vent Screens (IPEX Part Number: 196051)
Exhaust piping must be of solid core material. Refer to the PVC/CPVC manufacturer for appropriate ngs,
solvents or joining methods.
Manufacturer Vent Material
Ubbink PVC (Outer Vent), Polypropylene (Inner Vent)
Centrotherm Polypropylene
Heat-Fab Metal
Metal Fab Metal
IPEX PVC/CPVC
DuraVent Polypropylene
Royal PVC
ECCO Manufacturing Polypropylene
DiversiTech PVC/CPVC
Z-FLEX Polypropylene
APPROVED VENTING MATERIALS BY MANUFACTURER
Air Filter Screen N/A
Tee 5
90° Elbow 5
2.5 45° Elbow
Product
Descripon
Diagram
Horizontal
Vercal
Equivalent
Length ()
