Infinity REU-V3232W /HD250E REU-V3232WC - 10 - Issue 1 - 8/09/03 ©Rinnai
Do not install the Controllers
• Near a heat source, such as a cook top, stove or oven. Heat, steam smoke and hot oil may
cause damage.
• In direct sunlight.
• Outdoors unless an enclosure is provided which protects the controller against sunlight and
dust ingress.
• Against a metal wall unless the wall is earthed in accordance with AS/NZ3000.
Remote Controller Connection
Remote controls operate at extra low voltage (12 Volts DC) which is supplied from the appliance.
Controllers are supplied with 15 m of electrical cable. The cable wires for connection to the appliance are
fitted with spade terminals.
Extension cables are available from Rinnai. Alternatively, a two core sheathed (double insulated) flex with
minimum cross-sectional area of 0.5 mm² can be used. Maximum cable length is 50 m.
For connection refer to the “CONNECTING REMOTE CONTROL CABLES” section.

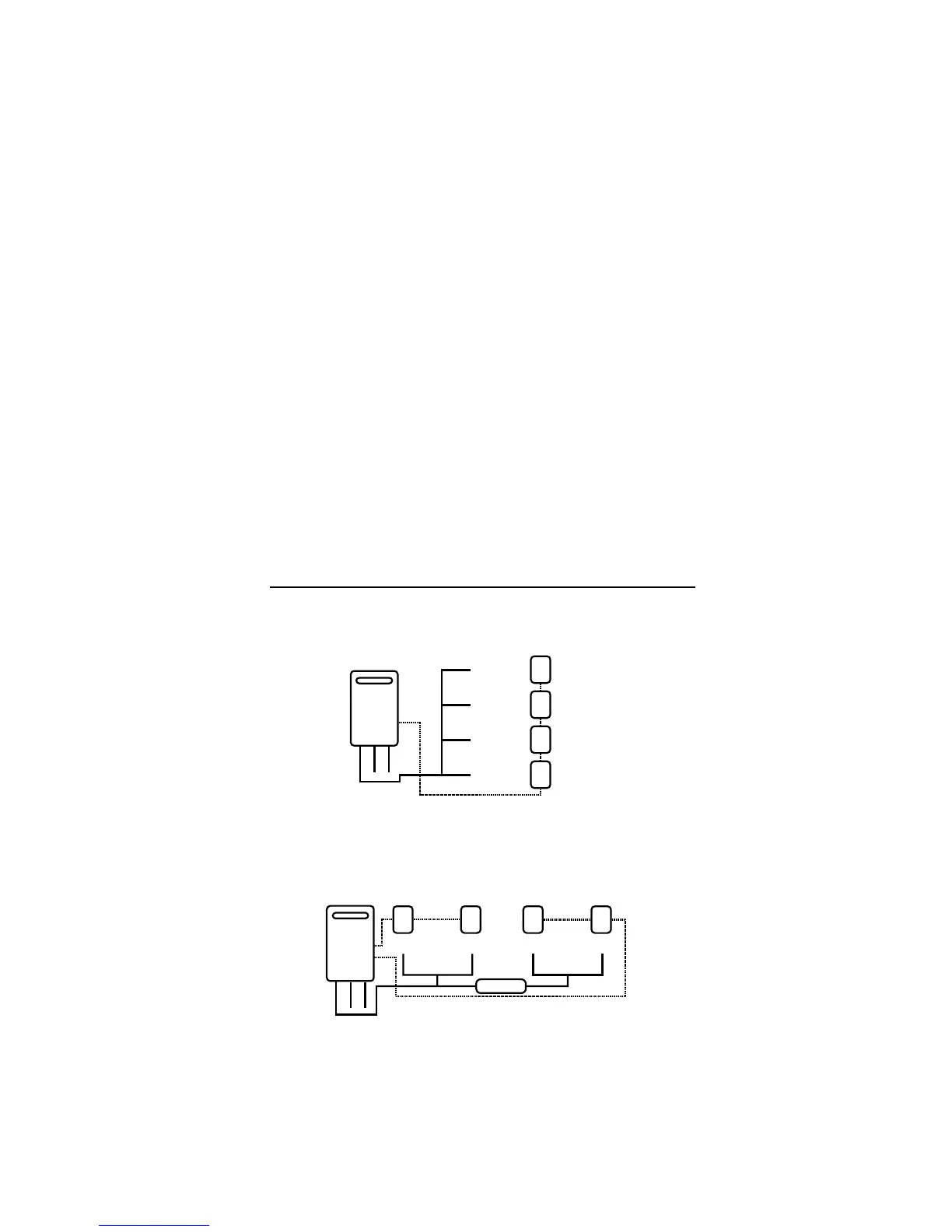

Water Heater and Controller installation configurations
“THIS APPLIANCE DELIVERS WATER
NOT EXCEEDING 50ºC IN ACCORDANCE WITH AS 3498
”
If the front cover of the appliance contains the following text install it in accordance with Diagram 1 below:
If the front cover of the appliance does NOT contain the above text install it in accordance with Diagram 2:
IMPORTANT: If the appliance is to deliver water primarily for the purposes of personal hygiene in an
early childhood centre, primary or secondary school, nursing home or similar facility for young, aged, sick
or disabled persons as defined in AS/NZ3500.4 a Temperature Limiting Device (TLD), such as a
Tempering Valve, may be required even if the appliance is set to 50º C or less. For these types of
applications contact Rinnai.
50º C
KITCHEN
Temperatur
