BLOCKSYSTEM FA-FT Pag. 80 REV. 04 10/07

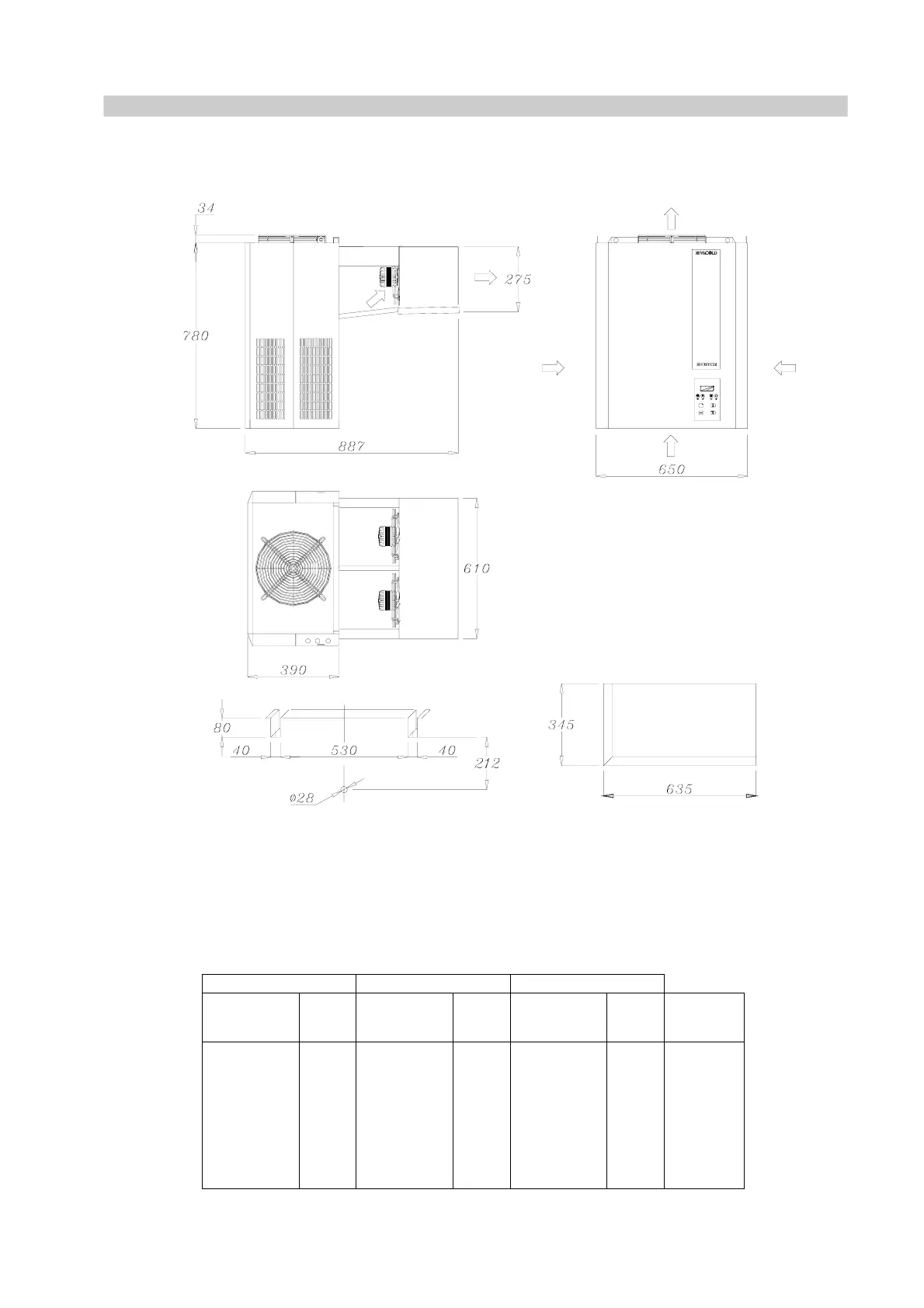

Fig. 7 (1X300)
HBP MBP LBP
Mod.
Net.
Weight
[Kg]
Mod.
Net.
Weight
[Kg]
Mod.
Net.
Weight
[Kg]
Fastening
screws
FAH016Z001
FTH016Z001
FAH022Z002
FTH022Z002
FAH028Z002
FTH028Z002
82,0
84,3
82,0
84,3
83,0
85,3
FAM016Z001
FTM016Z001
FAM022Z002
FTM022Z002
FAM028Z002
FTM028Z002
82,0
84,3
82,0
84,3
83,0
85,3
FAL012Z001
FTL012Z001
FAL016Z002
FTL016Z002
80,0
82,3
92,0
94,3
Self-tap.
4.8x32
set
on
off
FA
Saddle version
FT
Plug-in version
