8. PARAMETER DESCRIPTION
IMR02C15-E4
8-107
 Set value action (High, Low)
When the Set value (SV) reaches the Event set value, event ON occurs.
SV monitor value type and local SV value type are available for Set value action.
SV monitor value type
Event turns on when SV monitor value reaches Event set value.
Setting change rate limiter turns on the event when the Set value (SV) in
the changing process reaches Event set value.
SV monitor value:
SV monitor value is displayed in the Measured value (PV)/Set value (SV) monitor
screen (Monitor display mode). When Setting change rate limiter is set, the Set value
(SV) in the changing process is displayed.
Local SV type Event turns on when Set value (SV) [Local SV] reaches Event set value.
Local SV:
Local SV is displayed in the Measured value (PV)/Set value (SV) screen (SV setting
mode).

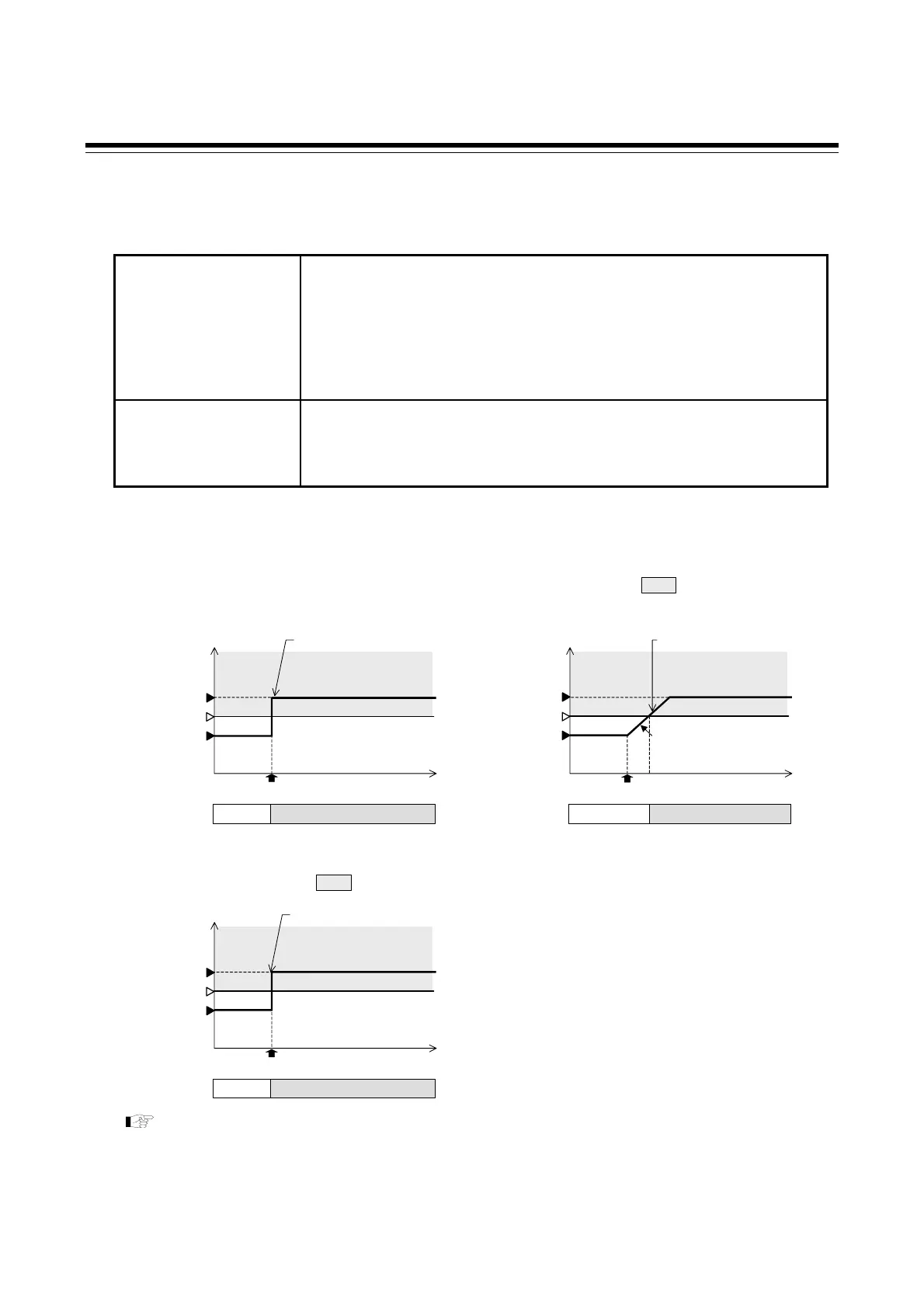

Some examples of SV high are described in the following:
SV high: When the Set value (SV) is more than the Event set value, the event ON occurs.
OFF
[When setting change rate limiter is set.] [When setting change rate limiter is not set.]
Local SV type has only one type of action on a change with
or without the Setting change rate limiter.
Set value (SV)
Time
Set value (SV)
Chan
in
the set value
SV
Set value (SV)
Event set value
Set value (SV)
SV monitor value
Time
Chan
in
the set value
SV
Set value (SV)
Event set value
SV monitor value type
Local SV type
Event turns on when the changed Set value (SV)
reaches the Event set value.
Event set value
Set value (SV)
Time
Set value (SV)
Chan
in
the set value
SV
Set value (SV)
Event turns on when the
changed Set value (SV)
reaches the Event set value.
Event turns on when the Set
value (SV) in the changing
process reaches the Event
set value.
Event status
ON
OFF
Event status
ON
Set value (SV)
OFF Event status
ON
: Event ON zone
: Event ON zone
For the Setting change rate limiter, refer to the Setting change rate limiter [up/down]
(P. 8-66).
