Instructions for optional attachments
PROTEAN

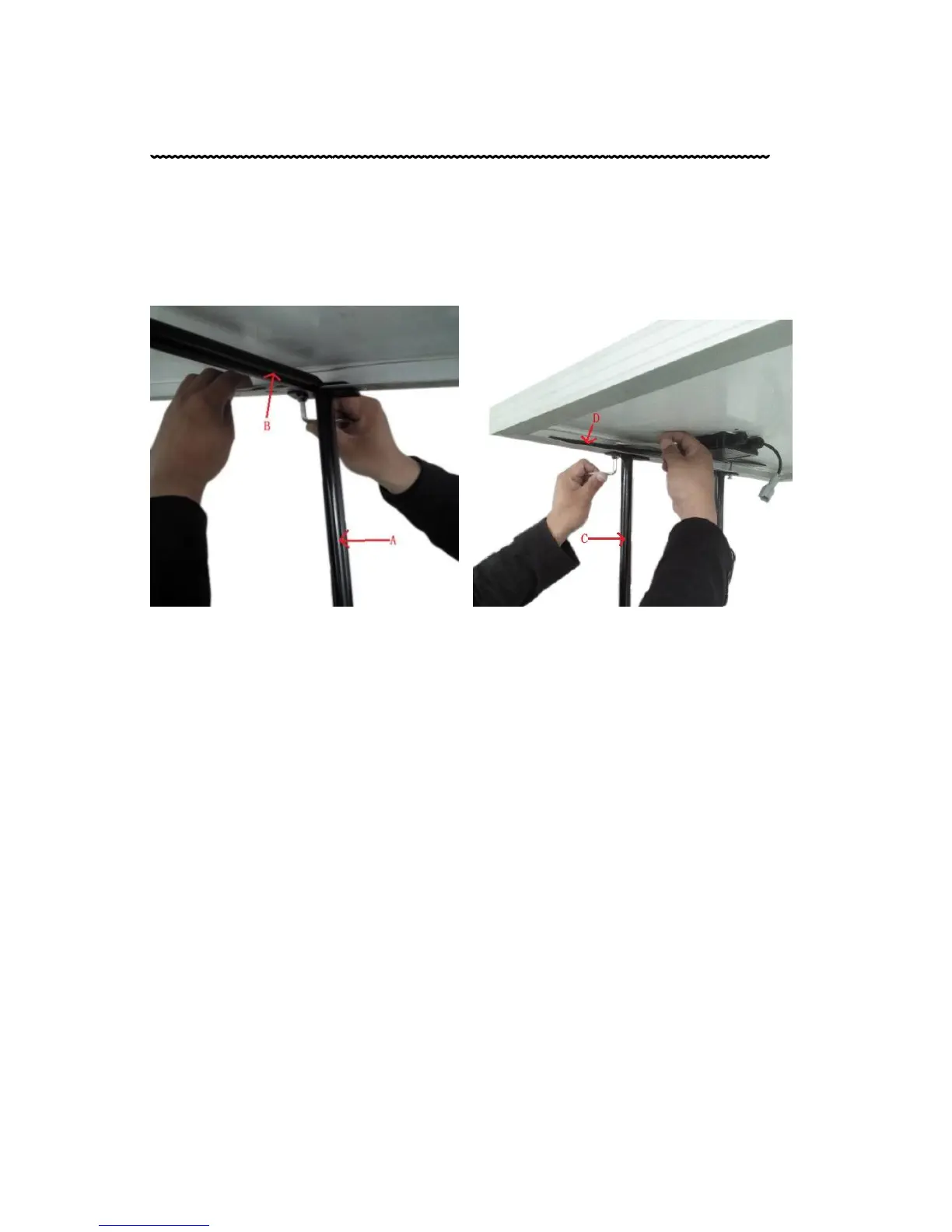

7. Fix the solar panel onto the front frames(A)
with support pipe(B), fix the solar panel onto the
rear frames(C) with support board(D).
the front frame the rear frame
7. Connect the wiring harness well.
Firstly, confirm that the switch on the solar
panel is closed ( solar panel display lamp(A)
is extinguished), then connect controller
connector(C) and battery connector(D),
battery display lamp(B) is light, turn on the
switch, solar panel display lamp is light.
