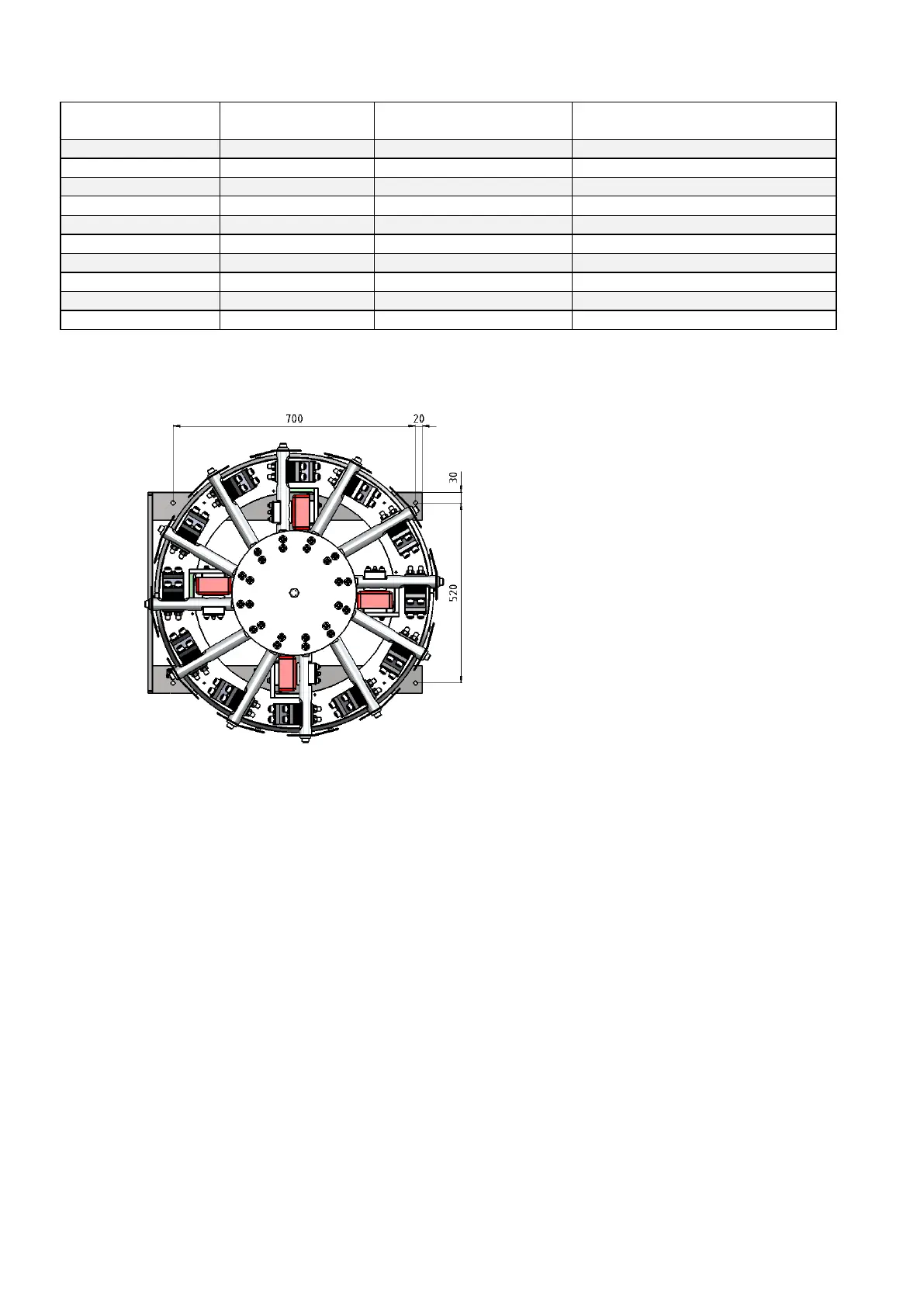

Following table gives an overview of the drilling data for the drive units used:
Vibratory feeder
type
Bolt circle
Ø
Bolt circle angles in °
Shock absorber thread
SRC-N 160-2
120
3 x 120
M 6
SRC-N 200-2
130
3 x 120
M 6
SRC-B 200
130
3 x 120
M 6
SRC-N 250-2
220
3 x 120
M 8
SRC-B 250
220
3 x 120
M 8
SRC-N 400-1
350
3 x 120
M 10
SRC-N 400-2
350
3 x 120
M 10
SRHL 400-1
350
3 x 120
M 10
SRHL 400-2
350
3 x 120
M 10
SRC-N 630-1
560
3 x 120
M 10
Table: Drilling data
• Type SRC-N 800 is always supplied with a substructure. This substructure is fastened with M10 anchors.
Make sure that the vibratory feeder cannot touch other devices during operation.
For further details on the control unit (drilling template, etc.), please refer to the separate operating instructions manual
of the controller.
