TEST PROCEDURE
Model:CD-365

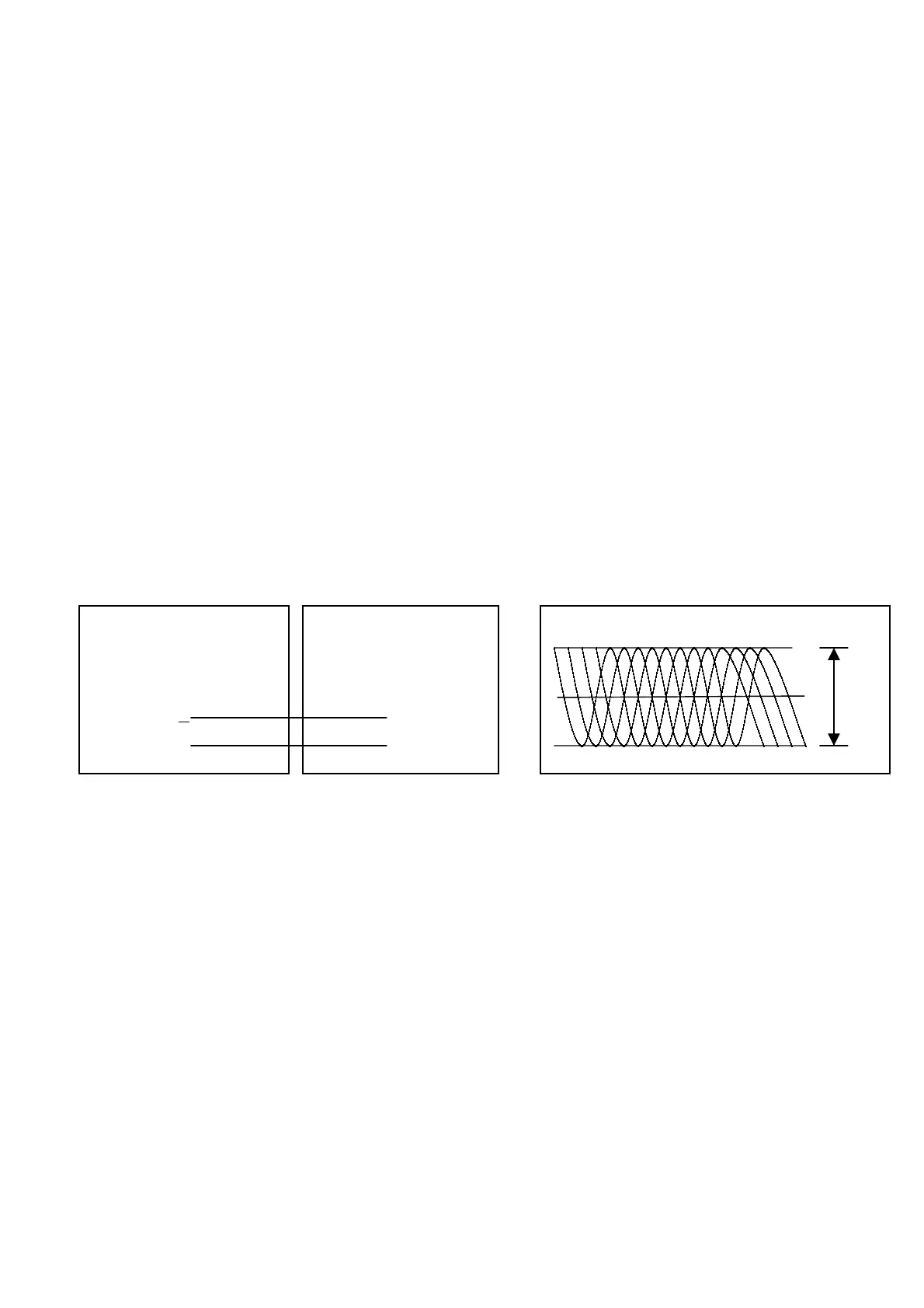

RF SIGNAL TEST
TEST POINT :RF-VC
TEST DISC:TCD-784
(a) CONNECT OSCILLOSCOPE PROBE TO RF AND VC
(b) PRESS PLAY KEY TO PLAY THE TEST DISC
(c) THE RF SIGNAL WAVE WILL BE HOLDING AT 1.0Vp-p WITH AUTOMATICITY.
(d) PRESS STOP KEY
OSCILLOSCOPE
(AC COUPLE)
+
-
RF
VC
1.0 0.1
