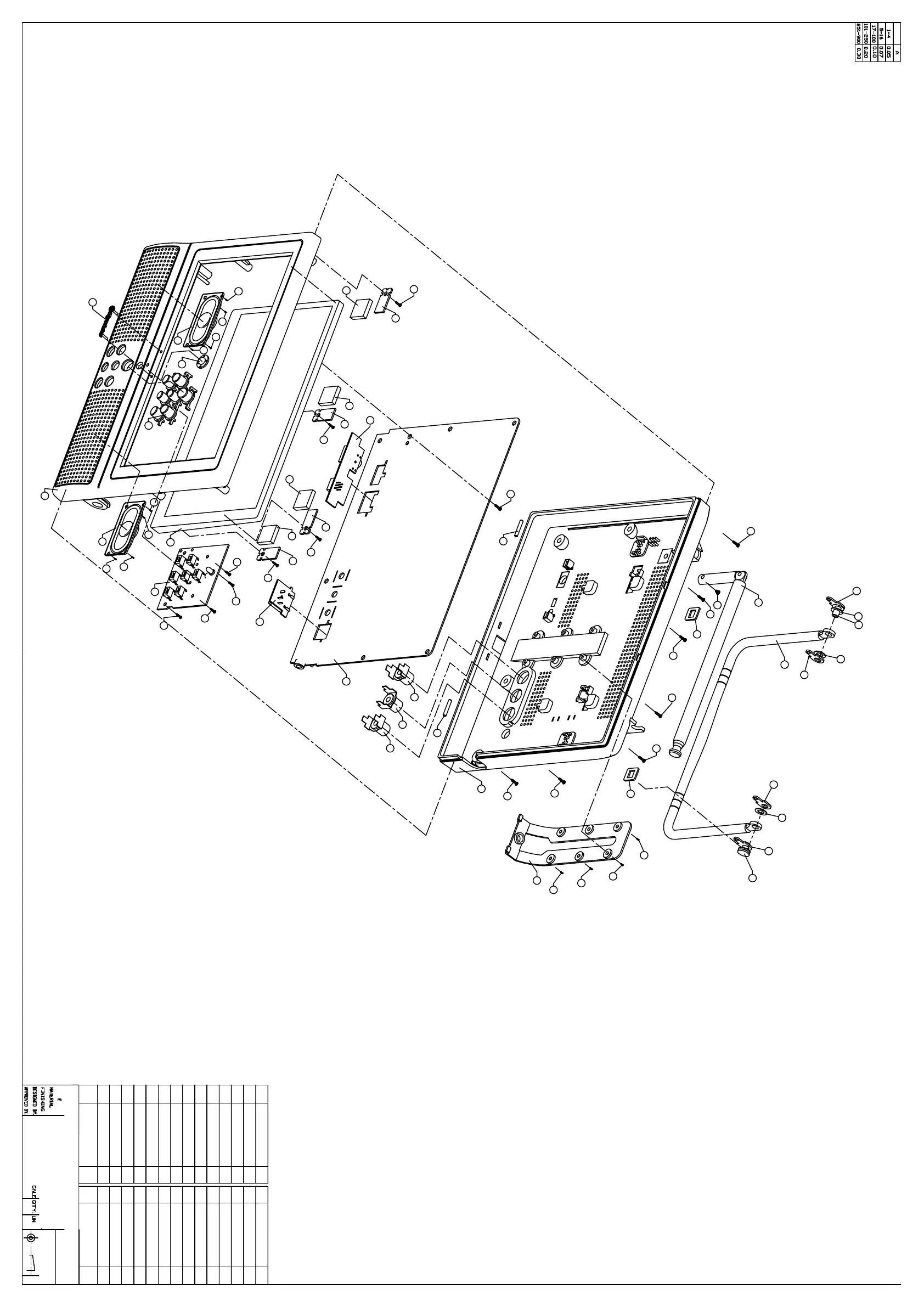

1
ITEM
DESCRIPTION QTY ITEM DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
1
2
3
5
6
3
4
6
6
6
6
6
6
6
7
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
13
14
15
17
17
17
16
16
18
19
19
19
19
19
19
19
19
20
21
21
21
21
22
22
23
24
25
26
26
27
27
27
27
28
28
28
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Badge
1
Front Cabinet
1
Speaker
2
Control Knob
1
Remote Lens
1
Screw BA2X6mm
8
TFT Panel
1
Control Key PCB
1
Screew BA2X6mm
4
Fixed Sponge
4
Panel Fixed Plate
4
Screw PB2.6X6mm
4
DC Jack PCB
1
Battery Charge PCB
1
Main PCB
1
Stand Shaft
2
RCA Jack
3
Back Cabinet
1
Screw PB3X10mm
8
Wall Mount Bracket
1
Screw BA2X6mm
6
Stand Holding Plate
2
SCrew PM3X6mmP/M
1
Rod Anteena
1
Stand
1
Stand Junction Post
2
Stand Junction  Plate
4
Stand Washer
2
