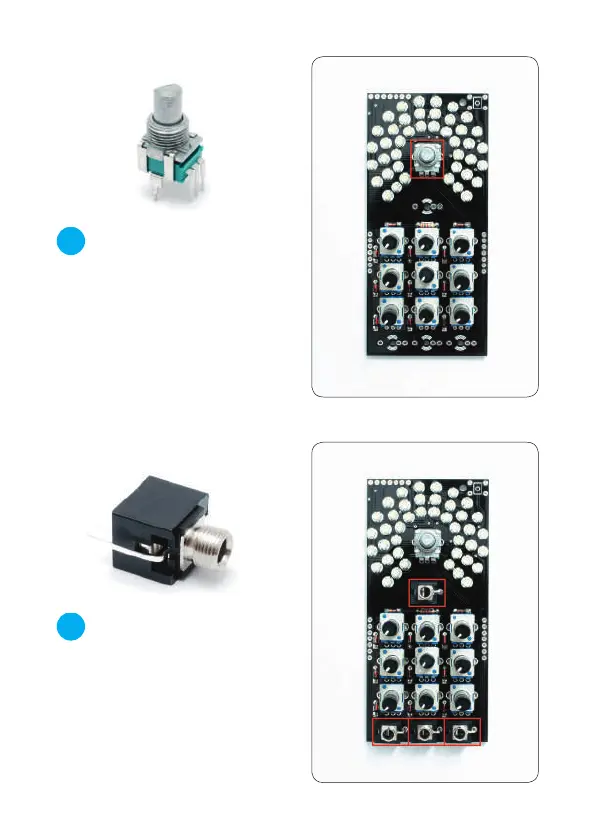

Potentiometer

Now insert the potentiometer as

shown in the picture.

Please do not solder the

potentiometer yet!

Thonkiconns

Now grab the four Thonkiconn

Jacks and place them in the

PCB. Please do not solder the

jacks yet!
