INSTRUCTIONS AND USER MANUAL
Modellsport
PREFACE
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean
massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec
quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec
pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venen-
atis vitae, justo. Nullam dictum felis eu pede mollis pretium. Integer tincidunt. Cras dapibus. Vivamus
elementum semper nisi.
ARF PNP
Motor not included
Ro-Power Torque 5062 305KV Outrunner
(built-in)
ESC not included min. Ro-Control, as of 80A (recommended)
Battery not included
Ro-Power as of 8S / 4200 mAh (or 2x4S)
(recommended)
Servo ELE not included 1x FS 525 BB MG HV SERVO (built-in)
Servo RUD not included 1x FS 525 BB MG HV SERVO (built-in)
Servo AILE not included 2x FS 128 BB MG HV DIGITAL SERVO (built-in)
Servo FLAP not included 2x FS 128 BB MG HV DIGITAL SERVO (built-in)
Servo LANDING FLAP not included no
Servo cable
2x 100cm + 2x 20cm (not inclu
-
ded)
built-in
Landing gear not included no
MULITlock not included no
MPX plugs yes (not included) built-in
Adhesives not included -
Epoxy resin yes (not included) 5min ro-POXY (not included)
Locking screw yes (not included) UHU Por (not included)
Velcro strap yes (not included) yes (not included)
Spinner not included Spinner mounted
Propeller not included Probeller 15x11 mounted
TX min. 5 channels (not included) min. 5 channels (not included)
RX min. 7 channels (not included) min. 7 channels (not included)

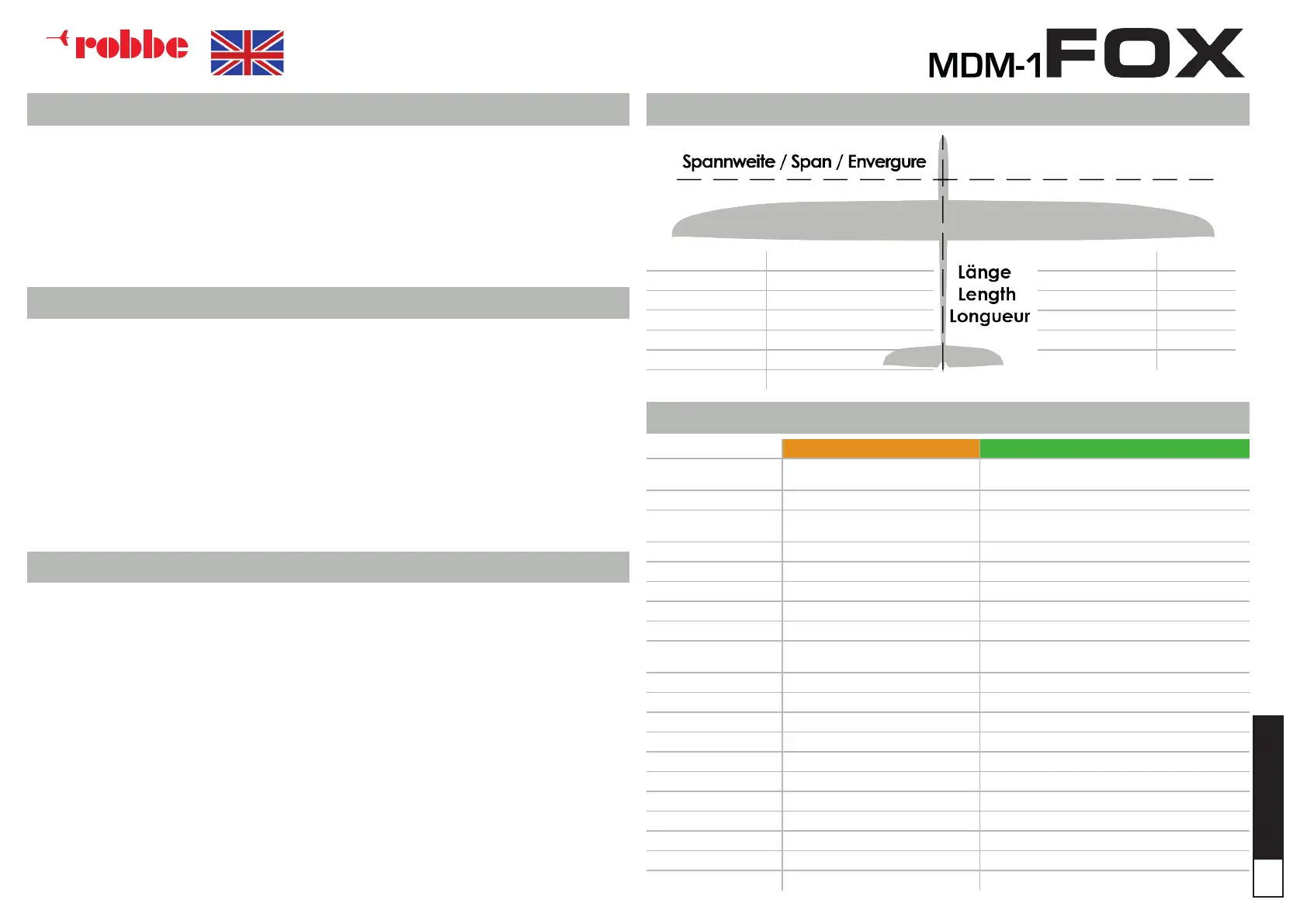

TECHNICAL DATA
BOX CONTENT / NEEDED ACCESSORIES
Span 3500 mm
Length 1800 mm
Flying weight PNP 7560 g
Flying weight ARF 6470 g
Wing Area 80,50 dm²
Airfoil HQ/W 2,5/11
C.G. -
Elevator yes
Rudder yes
Ailerons yes
Flaps yes
Landing aps no
Motor yes
FLIGHT INSTRUCTIONS
• Before the rst ight, observe the instructions in the „Safety Instructions“ section.
• When ying the model, you should choose a day with as little wind as possible
• A large, at area without obstacles (trees, fences power lines etc.) is suitable for the rst ights.
• Please carry out a functional test of the drive train / power set and remote control.
• After assembling the model on the aireld, check once again that all model components such as
wing, tail units, wing mounts, engine, linkages, etc. are rmly and properly fastened.
• For a hand start a helper should be present, who can throw the model with enough thrust into the
air.
• The start usually takes place against the wind.
• Do not stall the model near the ground
• Do not initiate tight turns in the immediate vicinity of the ground.
• Check the reactions of the model to the rudder deections. If necessary, adjust after landing to
increase or decrease the deections accordingly.
• The minimum ight speed must be at an adequate safety altitude.
• Initiate the landing with sufcient speed
SAFETY INSTRUCTIONS FOR RECHARGEABLE BATTERIES
• Do not immerse the battery in water or other liquids.
• Do not heat, throw into re or microwave.
• Do not short-circuit or charge with reversed polarity
• Do not expose, deform or throw the battery
• Do not solder directly on the battery
• Do not change or open the battery
• Only charge the battery with suitable chargers, never connect it directly to a power supply unit.
• Never charge or discharge the battery or charger on a ammable surface.
• Never leave the battery unattended during charging or discharging processes.
• Never charge or discharge the battery in direct sunlight or near heaters or re.
• Do not use the battery in places subject to high static discharge.
All this can cause the battery to be damaged, explode or even catch re!
• Keep the battery away from children
• Keep leaked electrolyte away from re, as it is highly ammable and may ignite.
• The electrolyte liquid should not get into the eyes, if it does, rinse immediately with plenty of clear
water and then see a doctor.
• The electrolyte liquid can also escape from clothes and other objects with a lot of water or washed
off.
• Observe the safety instructions of the battery manufacturer and the charger manufacturer.
