3
For RGV2800 and
6100
:
Tighten the
two
bolts to fix the muffler bracket to the front cover, rear cover,
and then the
two
bolts
for the muffler to the muffler bracket.
M8
x
20 mm bolt and washer Ass’y
.
.
-4
pcs. (for RGV2800 and 61
00)
*
190
-
250
kg-cm
13.7
-
18.0
ft-lb

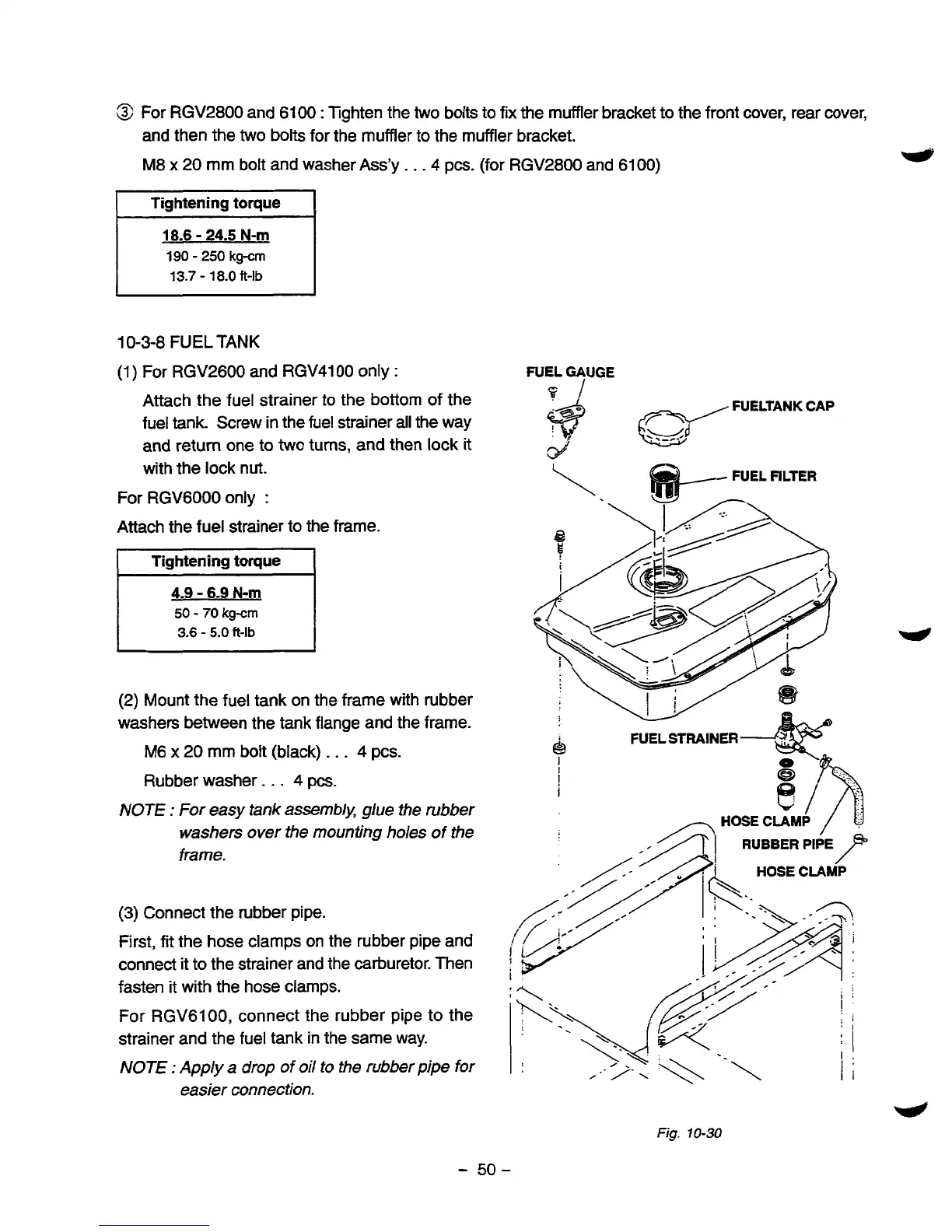

10-3-8
FUEL
TANK
(1)
For RGV2600 and
RGV4100
only
:
Attach the fuel strainer
to
the bottom
of
the
fuel tank. Screw
in
the fuel strainer
all
the way
and return one to two turns, and then lock
it
with the lock nut.
For RGV6000 only
:
Attach the fuel strainer to the frame.
50
-
70
kg-crn
3.6
-
5.0
ft-lb
(2) Mount the fuel tank on the frame with rubber
washers between the tank flange and the frame.
M6
x
20 mm bolt (black)
. . .
4
pcs.
Rubber washer
-
.
.
4
pcs.
NOTE
:
For easy tank assembly, glue the rubber
washers over the mounting
holes
of
the
frame.
(3)
Connect the rubber pipe.
First, fit the hose clamps on the rubber pipe and
connect it to the strainer and the carburetor. Then
fasten it with the hose clamps.
For RGV6100, connect the rubber pipe to the
strainer and the fuel tank in the
same
way.
NOTE
:
Apply
a
drop of
oil
to
the
rubber pipe for
easier connection.
FUEL
GAUGE
FUELTANK CAP
Fig.
10-30
-
50-
To Next Page
