RoboCam F12 - Page 2

DC/IN
NET
NET
RoboCam
NAT Router
/Access Point
Ethernet CablePower Adapter

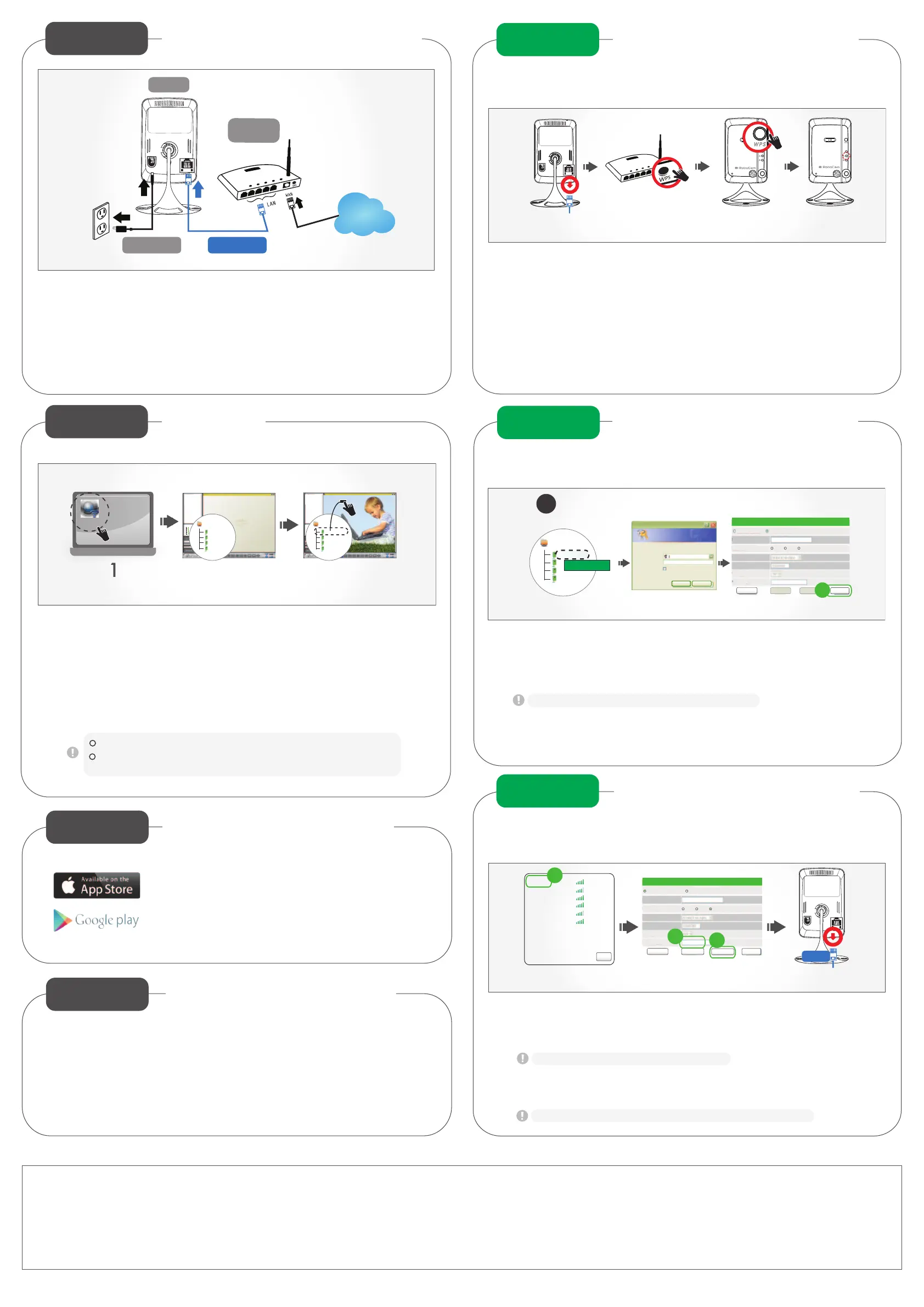

1. Connect the power adapter.
2. Connect the Ethernet cable to the NAT/Router which is connected to
the internet.
3. The IP camera will get IP address from the NAT/Router (with DHCP
enabled) automatically and connect to internet. Check if the red LED of IP
camera is always on. If it’s blinking, please check step 1 and step 2 again.
Internet
C.4
1
2 3
You can drag the camera on the “Auto Search” area to the “Camera List” area.
1
2
You could also add new item on the “Camera List” area by “Camera List”
→“New Camera” →Key in camera ID and Password.
Please make sure the Ethernet cable is connected to the IP Cam !
!
A B C.1
A. Right click camera on the “Auto Search” area and click “Web Configure”.
B. Key in the admin account and password to enter the web configuration page.
Click “Network\WiFi Security” of the configuration menu.
C. Four steps to setup the wireless connection:
C.1 Click the “WiFi Scan” button, all the available wireless AP will
be listed in 10 seconds.
The default admin account is “admin”, and no password.
WiFi Security Settings
3.1
WPA(2)-PSK(WPA personal)None WEP
Enable WiFi function
Disable WiFi function
SSID
Security mode
WEP Encryption
WPA Encryption
WPA-PSK Key
WEP Key
Save&Apply
WiFi scan
IP address WiFi test
admin
Yes
Username(U):
Password(P):
Remember my password(R)
Cancel
Connect to 10.0.0.198
C.2 C.3
C.4. If the “WiFi test” succeeded, remove the Ethernet cable from the
IP camera to start the wireless connection.
Please do not remove the Ethernet cable during WiFi test.
The blue LED and red LED will be always on after wireless connection is successful.
WiFi Security Settings
Enable WiFi function
SSID
Security mode
WEP Encryption
WPA Encryption
WPA-PSK Key
WEP Key
Disable WiFi function
Save&Apply
IP address
WiFi test
WPA(2)-PSK(WPA personal)
None
TEST
12345678
WEP
C.2 Choose the wireless AP and key in the encryption key.
C.3 Click “WiFi test” button and wait for 20~40 seconds to verify if the
encryption key is correct. If “WiFi test” failed, check “encryption key”.
If scanning failed, please check the antenna or AP.
TEST 54Mbps WPA
54Mbps WPA
54Mbps WPA
54Mbps WPA
54Mbps WPA
54Mbps WPA
NAS
Example
Test1
Test2
Test3
OK
3.2
3.2
3.3
You can download the app that suits your smart phone:
"mEZviewerFree" – Free iPhone app.
"mEZviewer" - Free Android app.
"mEZViewerFull" – Paid iPhone app (+push notifications +SD Playback)
"mEZViewerHD" – Free iPad app
"mEZViewerHDFull" – Paid iPad app (+push notifications +SD Playback)
Then you could easily add RoboCams by entering the Cam ID & password
FCC Compliance Statement: This equipment has been tested and found to comply with limits for a Class B digital device ,pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential
installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Move the equipment away from the receiver-Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/television technician for additional suggestions You are cautioned that any change or modifications to the device not expressly approve by the party responsible for compliance could void Your authority to operate such device.
This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation
Mobile Device Usage, Radiation Exposure Statement: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
WiFi scan
DC/IN
NET
NET
Ethernet
Cable
Plug&View
Camera List
Auto Search
001001001
001001002
001001003
001001004
Auto Search
001001001
001001002
001001003
001001004
Auto search
001001001
001001002
001001003
001001004
Auto Search
001001001
001001002
001001003
001001004
001001001
Camera List
PC software could be found on http://myrobocam.com/plugview.zip or under downloads.
1. Remove the Ethernet cable from the camera.
2. Press the WPS button on the NAT/Router.
3. Press the WPS button on the RoboCam.
4. The blue LED on the RoboCam will start blinking along with other LEDs.
If the blue LED stops blinking and stays on for one minute, the wireless network
is connected successfully.
1. Execute the installed Plug&View software on the desktop or from “Start→
Programs→Plug&View→Plug&View”.
2. The “Auto Search” will display the IP camera in the local network.
3. Double click the camera and key in the password on the ID/password card to
see the video.
If your router has a WPS button
If the router doesnʼt have a WPS button
If your router doesnʼt have a WPS button
SD
DC/IN
NET
NET
1 2 4
SD
SD
3
Step 1
Step 4-2-1
Step 2
Step 4-2-2
Step 4-1
Step 3
Connecting RoboCam [WiFi]
Connecting RoboCam [WiFi]
Connecting RoboCam [WiFi]
iPhone/iPad/Android Apps
Once your Robocams are online, start the app and press the ‘+’ sign under Camera List, simply give the
Robocam a name and type in the ID and Password as per the card [or as per your new password if you
changed it], then hit ‘Done’ , you’ll get a message confirming that your camera was added successfully and
you’ll find it under the Camera list, you could touch the camera icon to access live, as for settings and SD
Playback you need to press the blue arrow to the right side of the camera icon.
Optionally, if you’re on the same WiFi range as the cameras for the moment, you could perform (Local
Search) in this case the search will find the Cam ID for you automatically.
Step 3-1
PC Software
Connecting RoboCam [Wired]
Auto Search
001001001
001001002
001001003
001001004
Web Configure
Adding Robocams to Apps
