Chapter 6
INFORMATION ON USE
- 35 -
English
C624153200.fmIDM

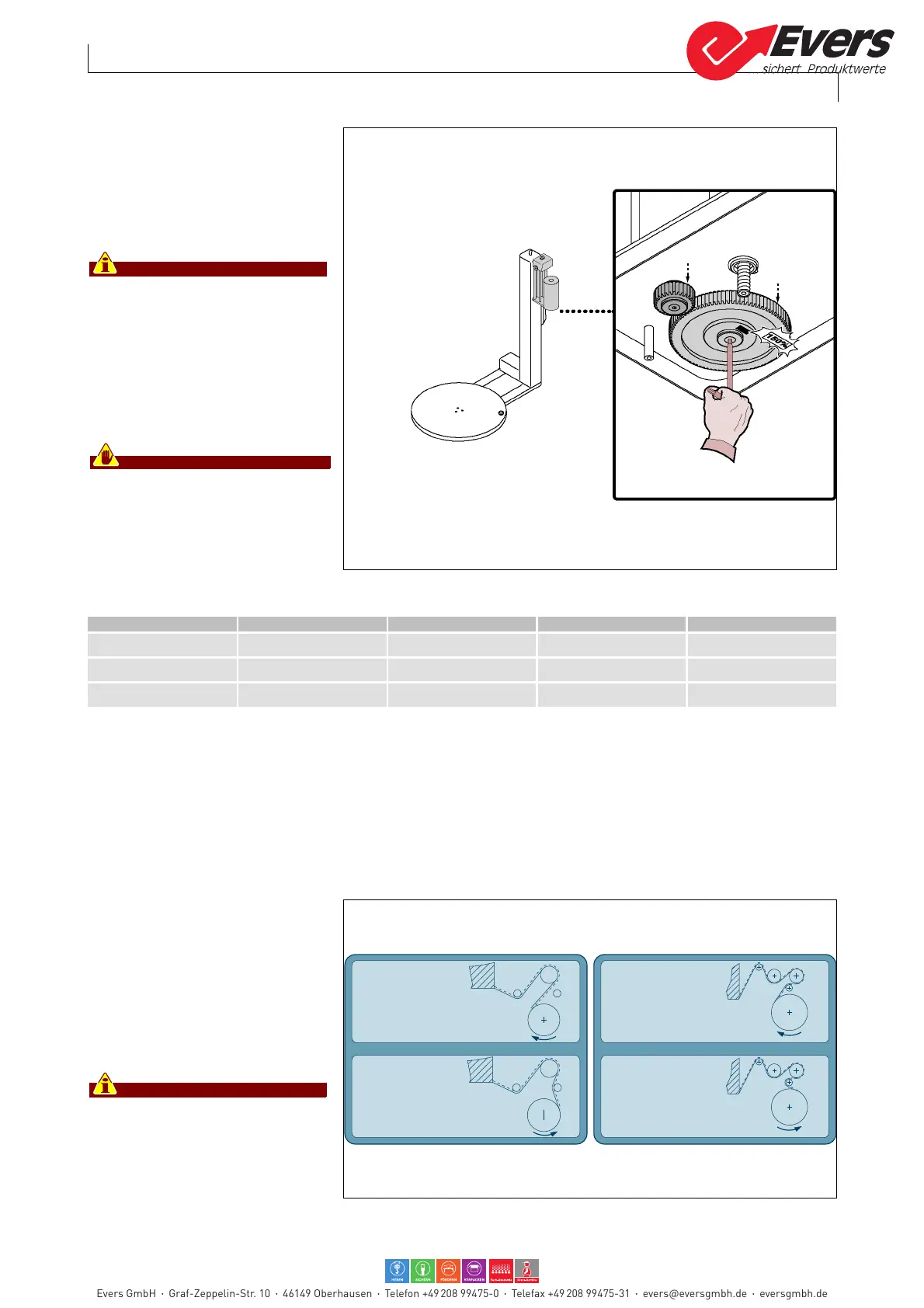

6-Replace toothed wheels (Z1-
Z2) according to the desired
pre-stretch percentage.
The table lists the pre-stretch
values obtainable with the
proper transmission ratios.
Set pre-stretching according to
film resistance and quality to ob-
tain low consumption.
7-Reassemble the guard (B)
when finished.
8-Start off machine to check cor-
rect operation.
Before restarting the machine,
make sure that no tools or mate-
rial are left near parts in motion.
Only for machines model "Ecoplat RS - Ecoplat TP RS"
Reel carriage is provided with fixed pre-stretch ratio and it is possible to choose among
the available models 30-60-90% when ordering the machine.
To change the pre-stretch value, contact a Service Centre authorised by the Manufac-
turer.
6.9. REEL LOADING
For this operation, proceed in the
following way.
1 -Position the reel with the film in
its housing provided on the reel
carriage.
2-Unwind the film and insert it be-
tween the rollers as shown in
the figure.
The adhesive side of the reel (in-
ternal or external) is shown with
a broken line.
Table 6.1: Pre-stretch values
Pre-stretch percentage Gear code (Z1) Gear teeth nr. (Z1) Gear code (Z2) Gear teeth nr. (Z2)
150% 2540300092 34 2540300091 85
200% 2540300094 29 2540300093 90
250% 2540300088 27 2540300087 92
EXTERNAL GLUE
INNER ADHESIVE
IDM-24153202301.pdf
EXTERNAL GLUE
INNER ADHESIVE
