Robustel GoRugged R3000-3P User Manual

Robustel GoRugged R3000-3P User Guide
73
Configuration--->NAT/DMZ--->Port Forwarding
Note: This section will be hidden if user selects “Cellular as primary and if fail use Eth0” in “Configuration ->Link
Management”.

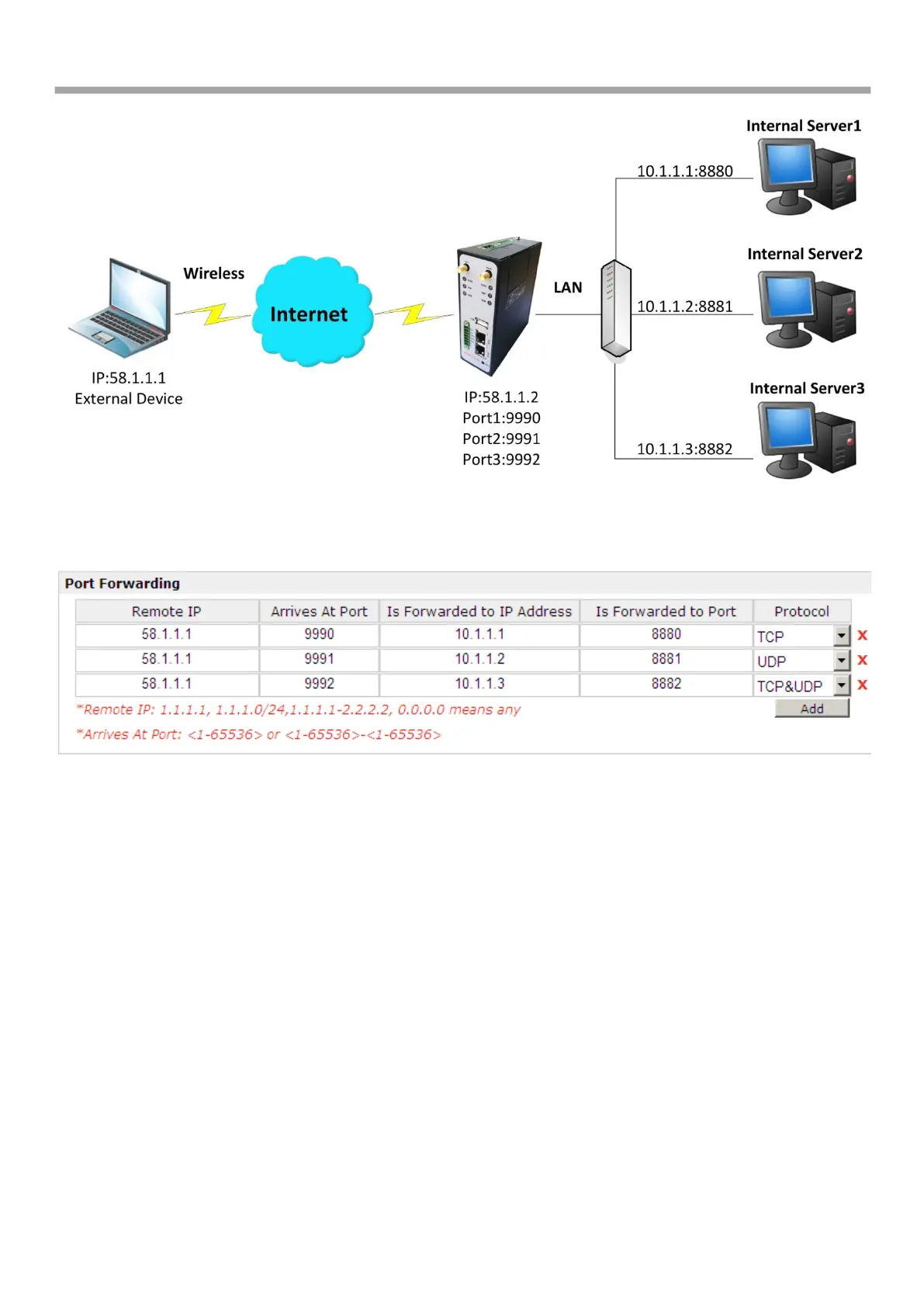

Explanations for above diagram:
If there are two IP addresses 58.1.1.1 and 59.1.1.1 for the External Devices, that the result will be different from the
test when the NAT is working at R3000-3P.
58.1.1.1----------access to--------->58.1.1.2:9990----------be forwarded to------->10.1.1.1:8000 TCP
58.1.1.1----------access to--------->58.1.1.2:9991----------be forwarded to------->10.1.1.2:8001 UDP
58.1.1.1----------access to--------->58.1.1.2:9992----------be forwarded to------->10.1.1.3:8002 TCP&UDP
