Mounting instructions W12 - wiper motor
(Keep battery main switch turned off during operation inside of the wiper motor)
1. Remove cover with enclosed torx key.

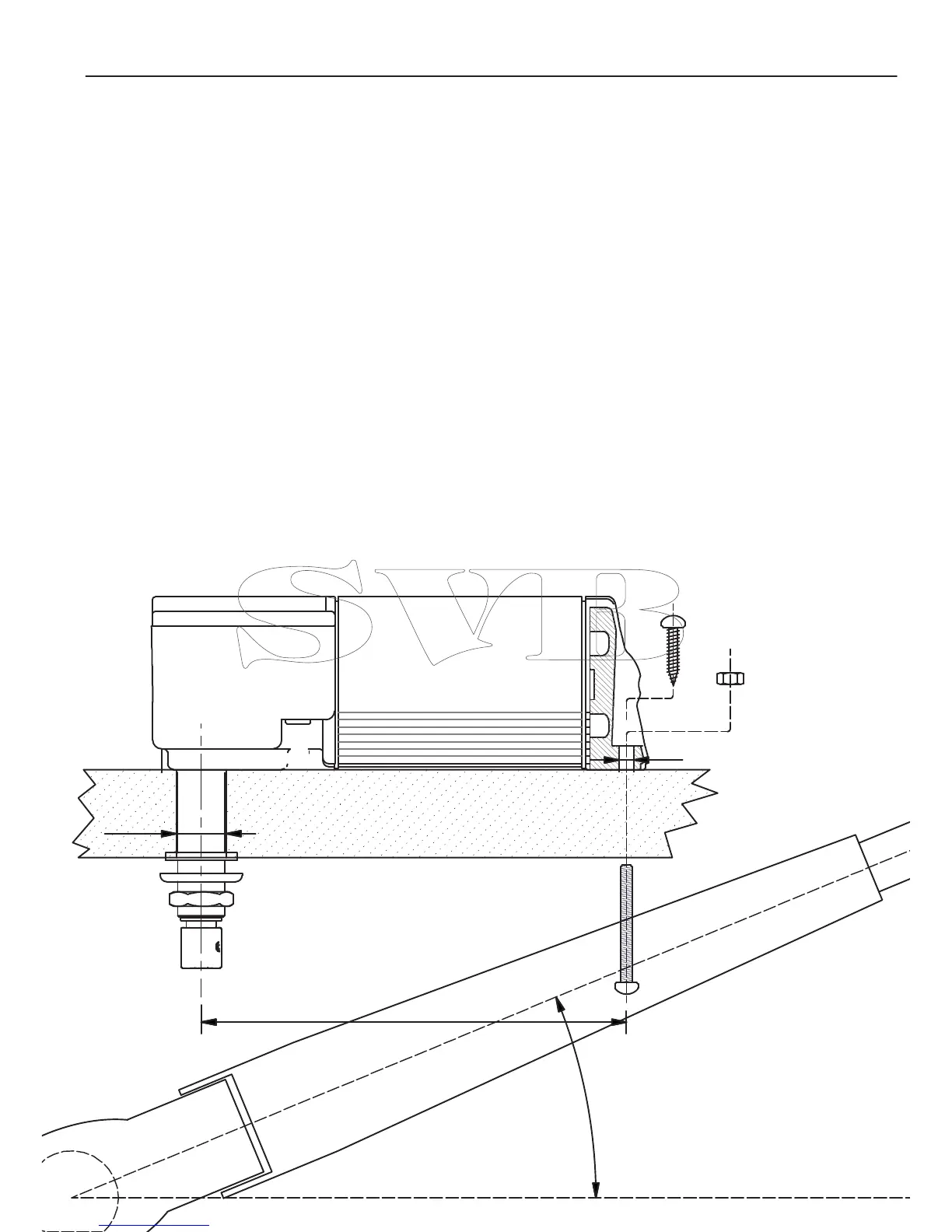

2. Locate the mounting position and using the template provided on box, drill mounting holes
and mount motor to the surface. See picture 1.
3. The motor is pre-set to 45° sweep and right parking position.
4. Attache the wiper arm with help of template on instruction sheet. See p
icture 2 and 3.
Don't mix up the centerline of the sweep area with centerline of the windshield.
Centre line is needed to find the right position of arm on the windshield.
Find the centerline of the sweep area.
5. Loosen the two screws on the angle plate. See picture 5. Move the arm to desired end
position of sweep area. See picture 4. Tighten the two screws firmly.
6. To set the self-parki
ng feature to park in the left position use the enclosed torx key
and turn the parking selector clockwise. See picture 5.
7. Connect wires as shown in picture 6.
If using Roca switch 466099/466208 use 6a. For all other switches use 6b.
Use a 5 Amp fuse for 12 V. and 3 Amp for 24 V.
8.Make sure the gasket is in right position and replace the cover on the motor with the
screws taken out.
Note:
If the arm sweeps too far out on both sides, the sweep angle needs to be reduced,
repeat point 5 above. If the arm goes too far on one side only then you didn't start with
the arm in center of the sweep. Remove the arm and place it at the correct position.
