WIPER MOTOR | W12
Installation Instructions
Before installation please read these instructions.
www.rocaindustry.com
■ 2 Speed, self-parking
■ Torque 12Nm
■ Wiper shaft in stainless steel
■ Adjustable sweep angle: 45 - 110°
■ Changeable self-parking, right and left position.
■ Insulated ground.
■ EMC protected
■ IP65

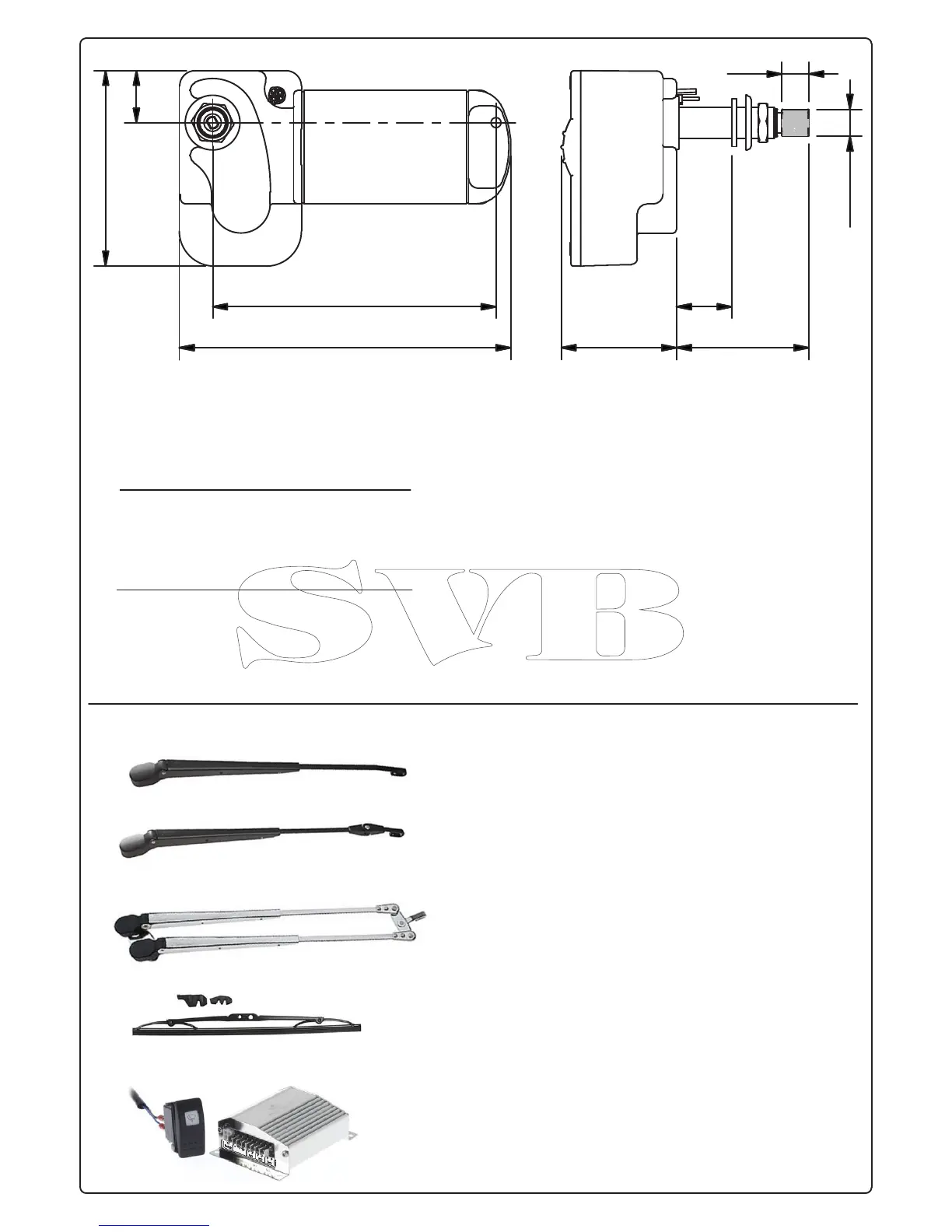

■ Powers up to 610mm/560mm - Arm/blade combinations
145c/c
170
27
100
L1
L259
13,8
Accessories
Wiper arm - Std
Wiper arm - Adjustable tip
Wiper arm - Pantograph
Wiper blade
Wiper control
Current diagram: 12 V 24 V
No load < 2 A < 1 A
Rated < 4 A < 2 A
Stall < 9 A < 4,5 A
Fuse (Fast blow) 5 A 3 A
Speed no load (35 / 55 RPM)
Variations:
Max length: Voltage input:
L1 L2 12 V 24 V
16 43 533011 533012
42 68 533021 533022
68 94 533031 533032
Limited warranty
- Roca warrants the wiper motors to be free
from defective material and workmanship
for a period of 3 years from the date of
purchase.
- This warranty does not apply to failure or
damage caused by improper ins
tallation,
misuse, lightning strike or damage from
a power surge.
- If failure occurs during this period, return
it to your dealer for repair or replacement.
13,8
Ø
/ z=72
