RocketFish RF-1025VA Quick Setup Guide

Input
EMI
Filter
Surge
Suppressor
AVR
Output
Battery
Inverter
Normal mode
Battery mode
Charger
AC/DC
LCD indicators
Power ON Wiring Fault Alarm CONDITION
On O O Normal
On O Beep twice Utility Failure - The UPS is providing power to
every 30 Battery-and-surge.
seconds
On O Rapid Utility Failure - The UPS is providing battery power.
beeping Rapid beeping indicates the UPS will run out of power
every shortly.
1/2 second
On O Constant Battery Overload - Occurs when connected equipment
tone exceeds the listed capacity of the UPS. Turn the UPS o,
unplug at least one piece of equipment from the battery
outlets, wait 10 seconds, reset the circuit breaker, and
turn the unit on.
On/O On None Electrical Wiring Fault - This indicates a wiring
problem with the AC outlet such as bad ground,
missing ground, or reversed wiring. Disconnect all
electrical equipment from the outlet and have an
electrician check the outlet to insure proper wiring.
Troubleshooting
Problem Possible Cause Solution
Full-time surge protection outlets Circuit breaker has tripped Turn the UPS o and unplug at
stop providing power to equipment. due to an overload. least one piece of equipment.
Circuit breaker button is projecting Wait 10 seconds, reset the
from the side of the unit. circuit breaker by depressing
the button, and then turn the
UPS on.
The UPS does not run as long as is Battery is not fully charged. Recharge the battery by
expected. leaving the UPS plugged in.
Battery is worn out. Contact Rocketsh about
replacement batteries at
www.rocketshproducts.com
or 800-620-2790
The UPS does not turn on. The on/o switch is Turn the UPS o, wait 10
designed to prevent seconds, then turn the UPS on.
damage from rapidly
turning it o and on.
The UPS is not connected The UPS must be connected to
to an AC outlet. a 110/120V 60Hz outlet.
The battery is worn out. Contact Rocketsh about
replacement batteries at
www.rocketshproducts.com
or 800-620-2790
Mechanical problem. Contact Rocketsh about
replacement batteries at
www.rocketshproducts.com
or 800-620-2790
Additional troubleshooting information can be found at
www.rocketfishproducts.com.
Specifications
Model RF-825VA RF-1025VA
Capacity 825VA/450W 1025VA/600W
Input voltage on utility 90V to 140V
Input frequency 57 Hz to 63 Hz
On-battery output voltage 120VAC ± 10%
On-battery output frequency 60 Hz ± 1%
Transfer time 4 ms typical
Maximum load for UPS outlets (6) 825VA/450W 1025VA/600W
Maximum load for full-time surge
protection outlets (8) 15A
On-battery output wave form Simulated sine wave
Operating temperature 32~104°F (0~40°C)
Operating relative humidity 0~90% non-condensing
Size 10.4 × 8.5 × 3.9” 10.8 × 8.5 × 3.9”
(263 × 215 × 100 mm) (275 × 215 × 100 mm)
Net weight 15.3 lbs. (6.9 kg) 16.5 lbs. (7.5 kg)
Battery type 12V, 8.5 Ah 12V, 9 Ah
Battery recharge time 8 hours typical from total discharge
Battery life 3 to 6 years typical, depending on
number of discharge/recharge cycles
Recommended battery Sealed, maintenance-free, lead acid
Safety approvals UL1778 (UPS), cUL CSA C22.2
No.107.3-05, FCC/DoC Class B

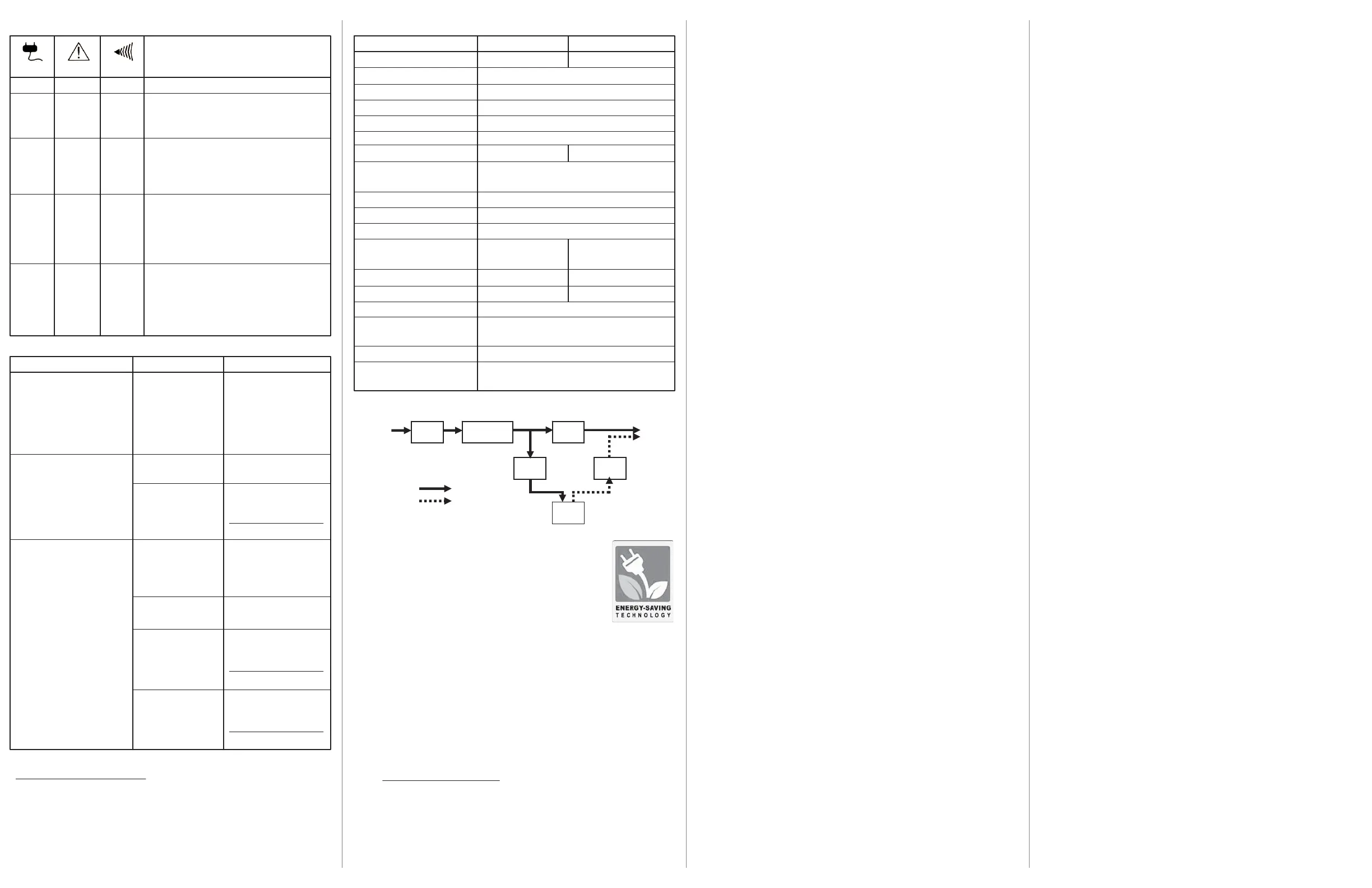

System function block diagram
GreenPower UPS™ technology
Advanced, energy-saving, patented bypass technology:
Patented GreenPower UPS with Bypass Technology reduces
UPS energy costs by up to 75% compared to conventional
UPS models. Even when utility power is normal, conventional
UPS models constantly pass power through a transformer. By
contrast, under normal conditions the advanced circuitry of a
GreenPower UPS bypasses the transformer. As a result, the
power efficiency is significantly increased while decreasing waste heat, using
less energy, and reducing energy costs.
When an abnormal power condition occurs, the GreenPower UPS
automatically runs power through its transformer to regulate voltage and
provides “safe” power. Since utility power is normal over 88% of the time, the
GreenPower UPS operates primarily in its efficient bypass mode.
The GreenPower UPS is also manufactured in accordance with the Restriction
on Hazardous Substances (RoHS) directive, making it one of the most
environmentally friendly UPS devices on the market today.
Three-year limited warranty
Visit www.rocketfishproducts.com for details.
© 2009 Best Buy Enterprise Services, Inc. Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
ENGLISH 09-0799
