CPU0204 3
5. Always hold the high pressure gun and wand with two hands. Keep one hand on the gun/trigger, while supporting
the wand with the other hand (see diagram).
6. When dispensing detergent, the pressure washer applies detergent to the cleaning area at low pressure only. Once
the detergent has been applied, spray the detergent off of the work area by using the adjustable nozzle.
ASSEMBLY INSTRUCTIONS
Unpacking the Carton
After opening the carton, please remove all parts and check them against the following list of components that are
included:

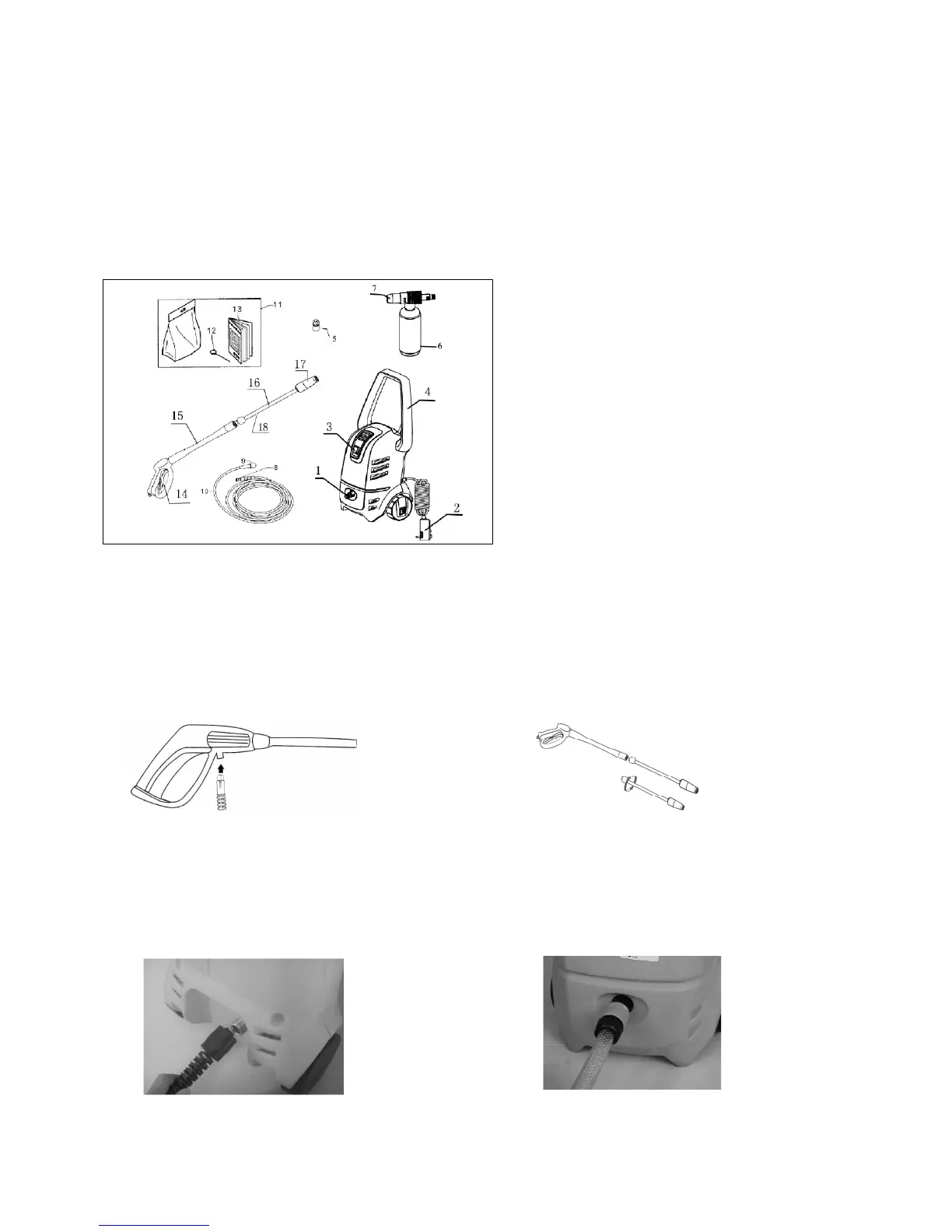

Fig. 1
1) Inlet connector
2) Power plug with GFCI
3) Main switch
4) Handle
5) Quick connector
6) Detergent bottle
7) Bottle Nozzle
8) Hose connector with appliance
9) Hose connector with spray gun
10) High pressure washer hose
11) Packing of fittings
12) Tip cleaner
13) Instruction manual
14) Trigger safety lock
15) Pistol grip
16) Spray lance
17) Turbo lance
To assemble the enclosed parts, please refer to the steps that follow:
Step 1
Attach the high pressure hose to the gun.
Use a wrench to tighten the fitting.
S
tep 4
Attach the garden hose to the brass
connector which on the front of pressure
washer. Connect the garden hose to the
waterspout.
Step 3
Attach the high-pressure hose to the
male fitting on the back of the pressure
washer.
Step 2
Connect the adjustable lance to the gun.
