Rockford Fosgate M2 Series User Manual

4

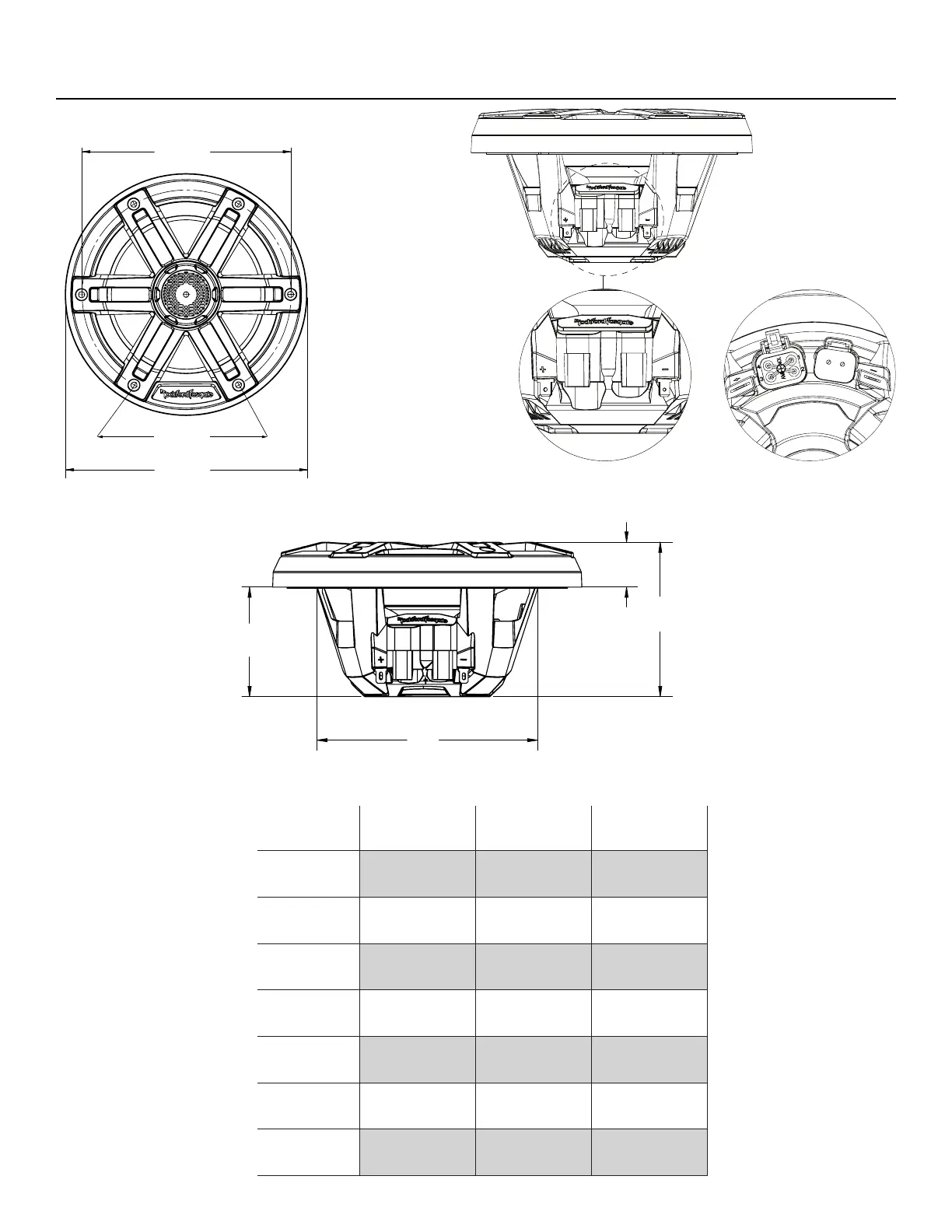

Diagrams
illus.-1.1
B
C
D
E
A
F
G
B
C
D
E
A
F
G
illus.-2.1
Model
M2-65
M2-65B
M2-8
M2-8B
M2-8H
M2-8HB
Overall Diameter
(A)
7.05”
(179.12mm)
9.07”
(230.4mm)
9.07”
(230.4mm)
Screw Mounting
Diameter (B)
6.12”
(155.5mm)
7.76”
(197mm)
7.76”
(197mm)
Mounting Screw
Angle (C)
6@60° 6@60° 6@60°
Overall Height
(D)
3.54”
(90mm)
4.58”
(116.4mm)
4.58”
(116.4mm)
Mounting Depth
(E)
2.49”
(63.2mm)
3.35”
(85mm)
3.35”
(85mm)
Cut-out Diameter
(F)
5.36”
(136.2mm)
7.05”
(179.1mm)
7.05”
(179.1mm)
Grill Height
(G)
1.03”
(26.1mm)
1.23”
(31.4mm)
1.23”
(31.4mm)
Connector Closeup
Front
View
Bottom
View

Rockford Fosgate M2 Series Specifications

General

Cone Material	Polypropylene
Grille Included	Yes
Speaker Type	Coaxial
Impedance	4Ω
Tweeter Material	PEI
Sizes	6.5"
Voice Coil Diameter	1"
