COLOR OPTIX™ Wiring Precautions
• Do not connect to 24 Volt electrical systems
• We recommend only using the COLOR OPTIX™ wiring chart
or connecting to the PMX-RGB. Connecting any other way
could cause damage to the speakers or the device you have
connected to.
• We recommend installing a fuse (not included) on the
Yellow 12 Volt wire whenever you are NOT using the PMX-
RGB. See COLOR OPTIX™ wiring chart for wiring options.
• Rockford recommends a minimum of 20 gauge wire when
hard wiring your COLOR OPTIX™ speakers.
• Never wire the COLOR OPTIX™ lights directly to 12 volts.
Utilize either the PMX-RGB or a toggle switch (not included)
connected to a fused 12 volt power supply. Refer to the
specifications to determine the size of fuse (not included)
needed
COLOR OPTIX™ WIRING OPTIONS
LED OUTPUT COLOR CONNECT THIS COLOR WIRE
TO GROUND
RED RED
GREEN GREEN
BLUE BLUE
YELLOW RED & GREEN
PINK RED & BLUE
AQUA GREEN & BLUE
WHITE RED, GREEN & BLUE
Connect colored wires on right to make output color
on le.
Connect all Yellow wires together to switched 12
Volts. See Wiring Precautions.

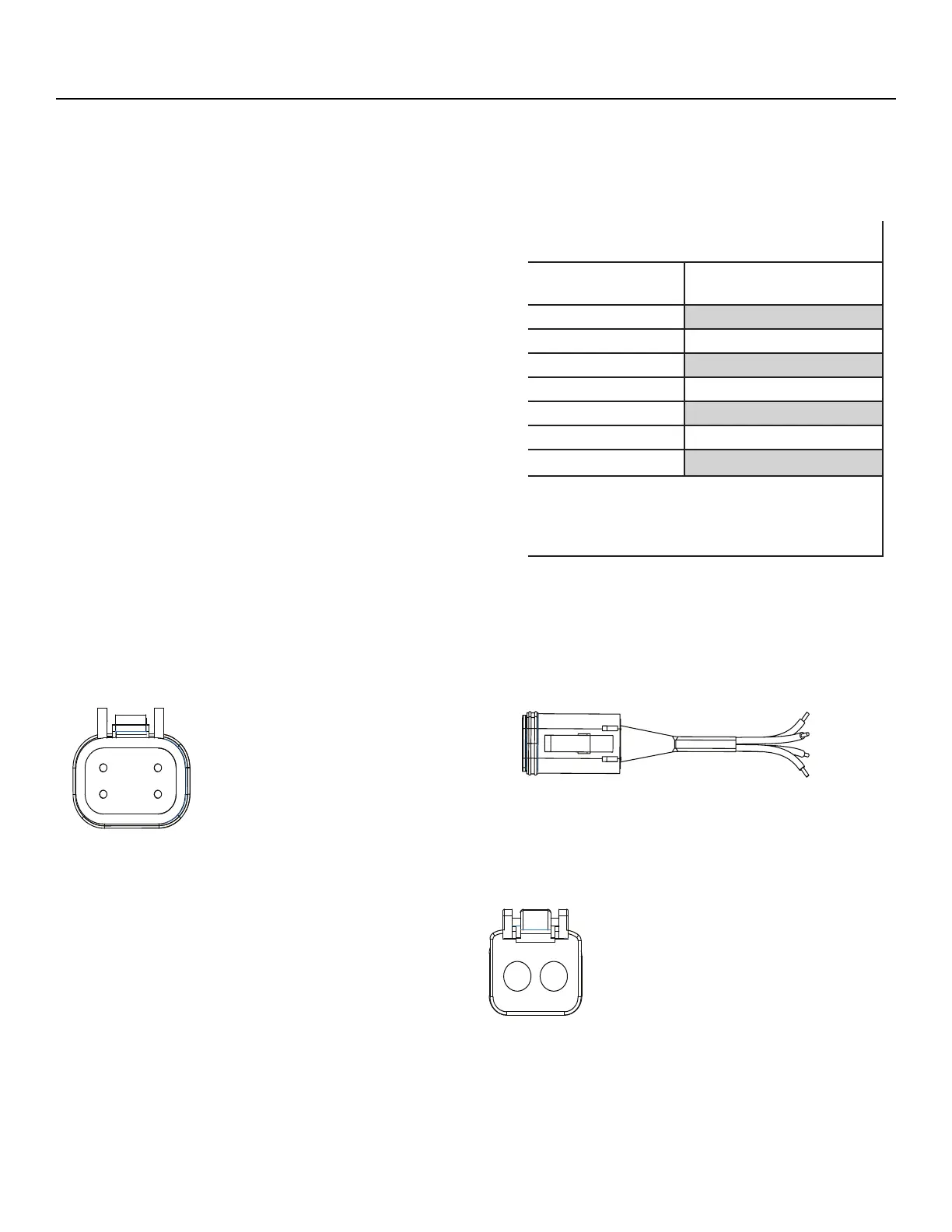

COLOR OPTIX™ Wiring
illus.-4.1
1 2
3 4
Speaker Pin Out (wire side)
1 - RED - Positive Speaker Input
2 - BLACK - Negative Speaker Input
NOT included with speakers
Connector is DEUTSCH™ style DT06-2S
illus.-4.3
1 2
illus.-4.2
Included
SPEAKER Wiring
COLOR OPTIX™ Pin Out (wire side)
COLOR OPTIX™ Connector
If not using the PMX-RGB, follow the diagrams below for proper
pin out and hardwiring instructions.
There are (2) dierent options for wiring your speakers.
Use the included spade connectors (included) as seen in illustra-
tion 3.1
You can also utilize the DEUTSCH™/Ampaenol connector (not
included) input next to the COLOR OPTIX™ connector.
1 - RED (Ground Input)
2 - Yellow (12V + Input)
3 - Blue (Ground Input)
4 - Green (Ground Input)
Included with speakers
Connector is DEUTSCH™/Amphenol style DT06-4S
