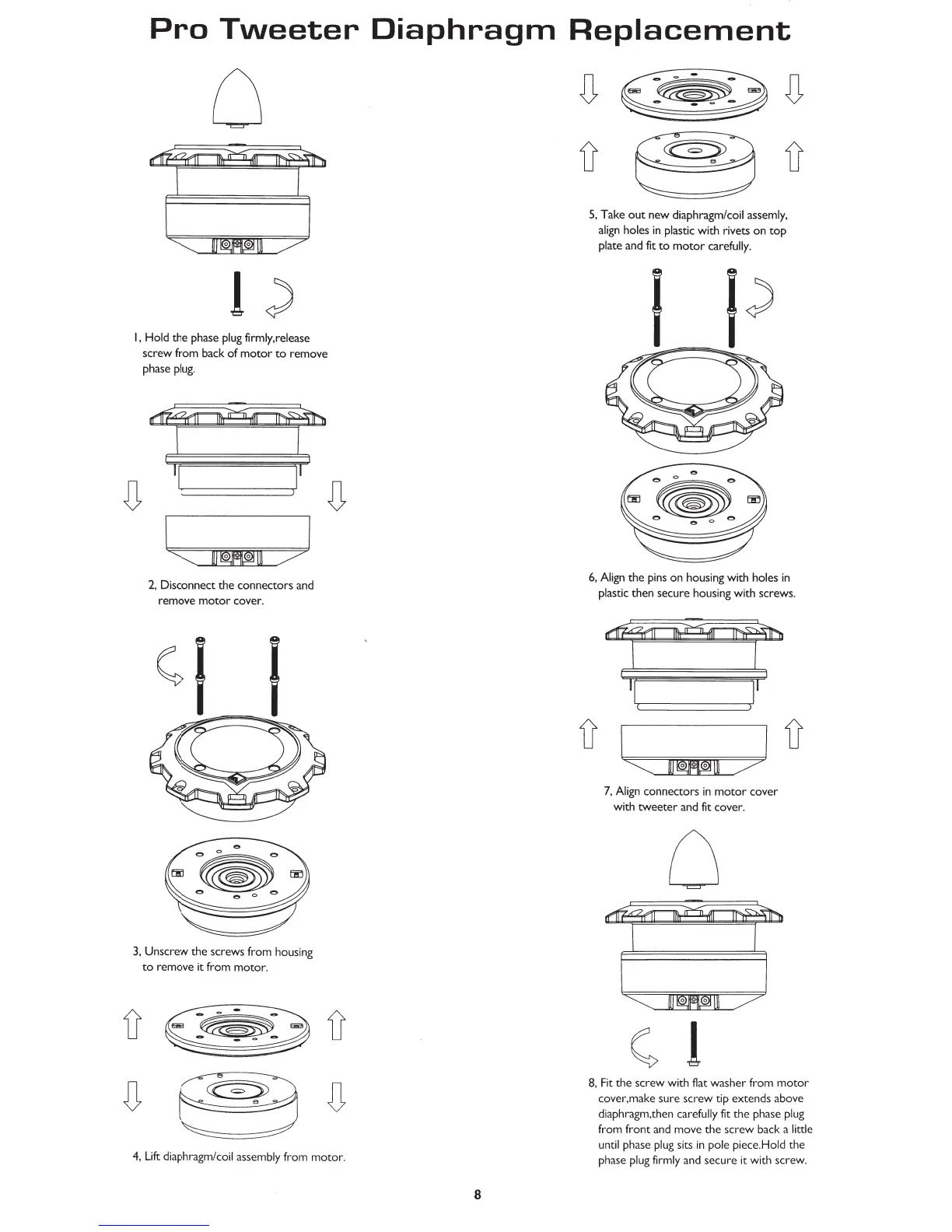

Pro
Tweeter
Diaphragm
Replacement
Q
I, Hold
the
phase
plug firmly,release
screw
from back
of
motor
to
remove
phase
plug.
2,
Disconnect the connectors and
remove
motor
cover.
3,
Unscrew
the
screws from housing
to
remo
ve
it
fr
om
motor
.
4,
Lift
di
aphragm/co
il
assembly
from m
oto
r.
8
5,
Take
out
new diaphragm/coil
assemly,
align
holes
in
plastic
with rivets on
top
plate and fit
to
motor
carefully.
6,
Align
the
pins
on
housing with
holes
in
plastic
then secure housing with screws.
7,
Align
c
onn
ecto
rs
in
motor
cov
er
with
tweeter
and fit
co
ver.
Q
' 1
8, Fit the
screw
with
fla
t wash
er
from
mo
tor
cover,make sure
screw
tip
exten
ds above
di
aphragm,
the
n
caref
ully
fit the
ph
ase
plug
from front and move
the
screw back a
little
until
ph
ase
plu
g
sits
in
pole pi
ece
. Ho
ld
th
e
phase
p
lu
g
fi
r
mly
and sec
ur
e it with
screw
.
