2-1 Publication 900-UM007D-EN-E- January 2011
Chapter 2
Preparations
Hardware Installation
Approximate Dimensions
The recommended panel thickness for mounting the 900-TC16 and 900-TC32
is 1 to 5 mm and the 900-TC8 is 1 to 8 mm.
Note: Dimensions are in millimeters. Dimensions are not intended to be used
for manufacturing purposes.To convert millimeters to inches, multiply
by 0.0394.

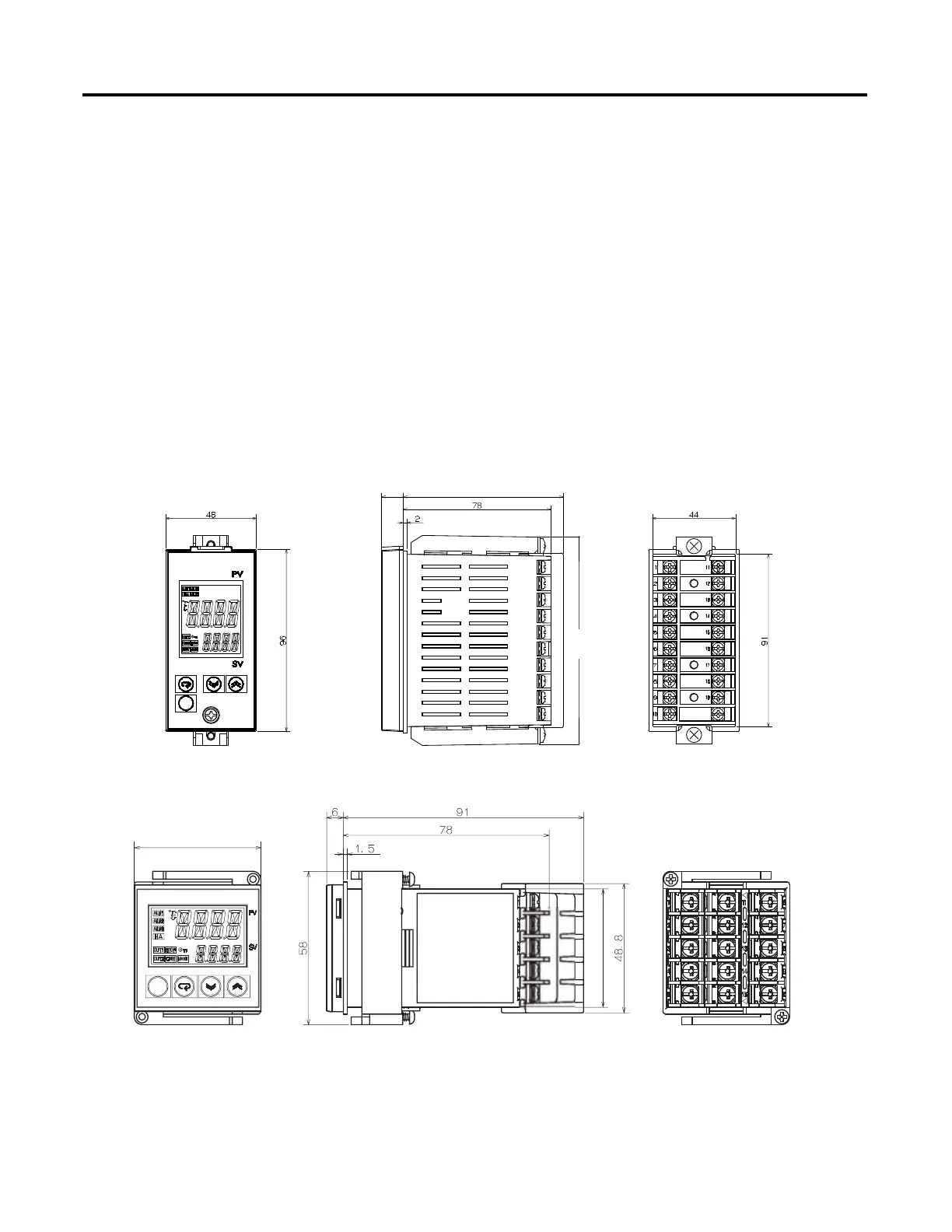

Figure 2.1 — 900-TC8
Figure 2.2 — 900-TC16
Front View Side View Back View
Allen-Bradley
900-TC8
6.0
79.2
112
20
4
8
×
4
8
4
4.
8
×
44.
8
Allen-Bradley
All
en-
Br
900-T
C
1
6
