Rockwell Automation MagneMotion 700-0871-00 - NC LITE Electrical Connections; NC LITE Power Pinout

Specifications and Site Requirements
Electrical Specifications
Node Controller Hardware User Manual 79
Rockwell Automation Publication MMI-UM013B-EN-P - April 2020

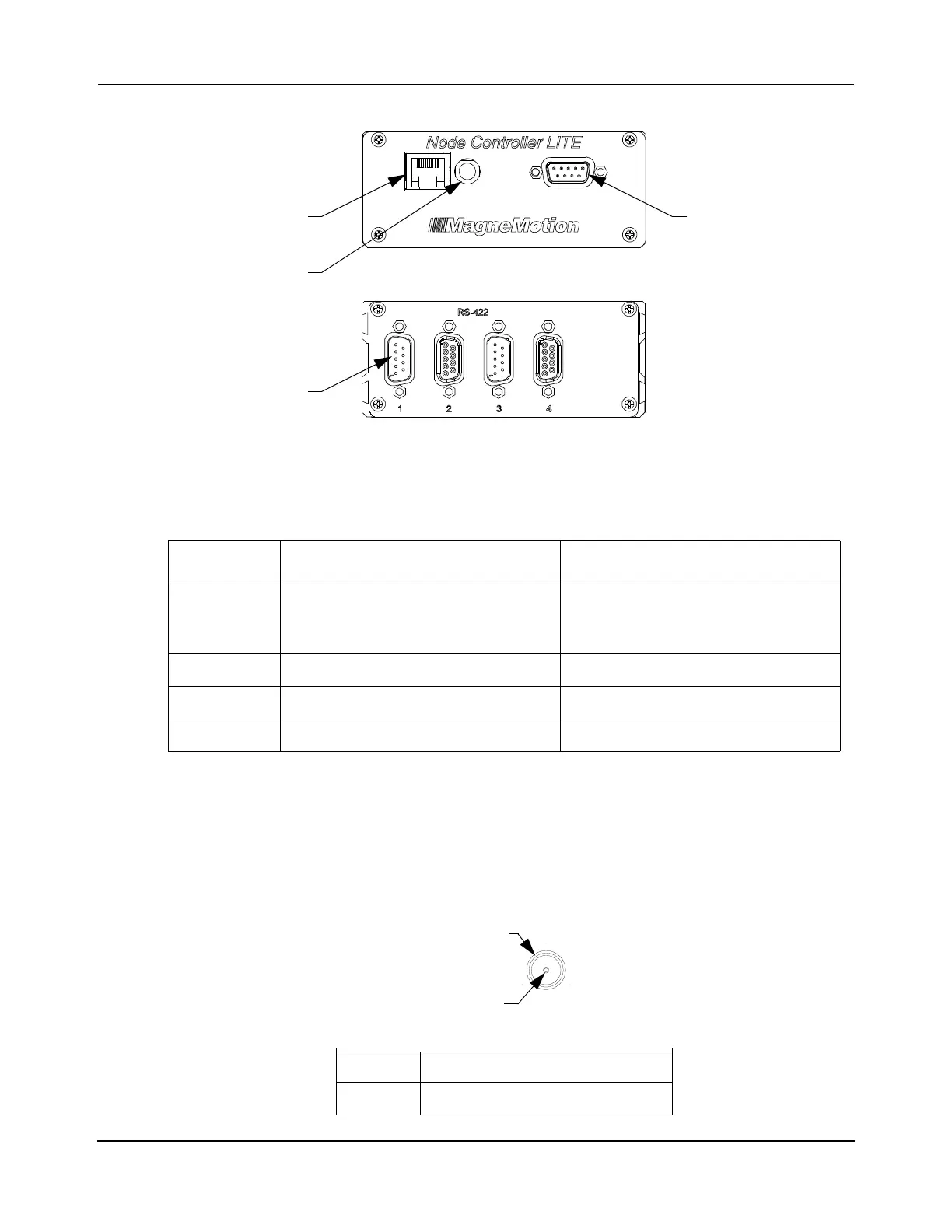

Figure 4-14: NC LITE Electrical Connections
Table 4-23: NC LITE Electrical Connections
Label Description Connector Type
LAN Ethernet – 10/100 BaseTx
(auto-MDIX, auto-negotiation)
(Passive PoE, 18V DC)
RJ45, Female
PWR 7–18V DC, 5 W
*
* MagneMotion requires grounding the NC LITE by mounting to a grounded surface.
DC Power Jack, 2.0 mm Coax, Male
CONSOLE External terminal DE-9, Male
RS-422 RS-422 motor communications DE-9, Male and Female
†
† MagneMotion recommends that the odd number (male) connectors be used for upstream connections and
the even number (female) connectors be used for downstream connections.
Table 4-24: NC LITE Power Pinout
2.0 mm Coax, Male
PWR Pin
RTN Sleeve
PWRLAN
18 VDC PoE ONLY
CONSOLE
Power
RS-422
LAN
Front View
Back View
(18V DC PoE)
Console
Pin
Sleeve
