ROE CB8 - Curve Installation; Curve Connection Plates

For the Magnet components,
in vertical connection at the
edge of CB tiles, must use
Connection Plate .
User Manual P14
Curve Installation

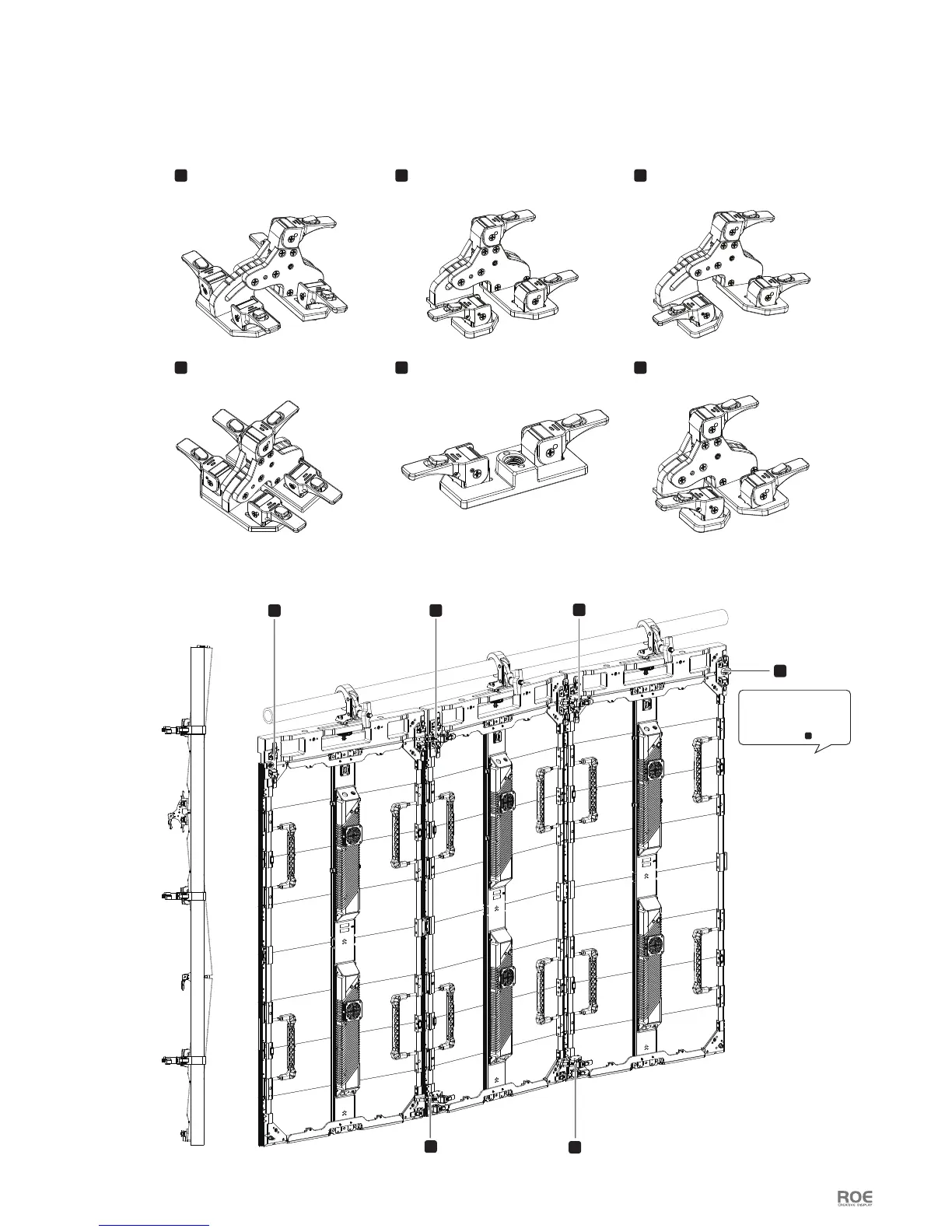

Hanging bar and Connection Plate indicate
The connecting angle of curve connection plates can be adjustable with any size (Max.concave 15°,
Max.convex 10°).
concave 15°
(four handles)
convex 10°
(four handles)
1
1
2
2
at
(two handles)
at
(two handles)
3
4
4
4
4
concave 15°
(two handles)
convex 10°
(two handles)
5
6
5
6
