User Manual P18

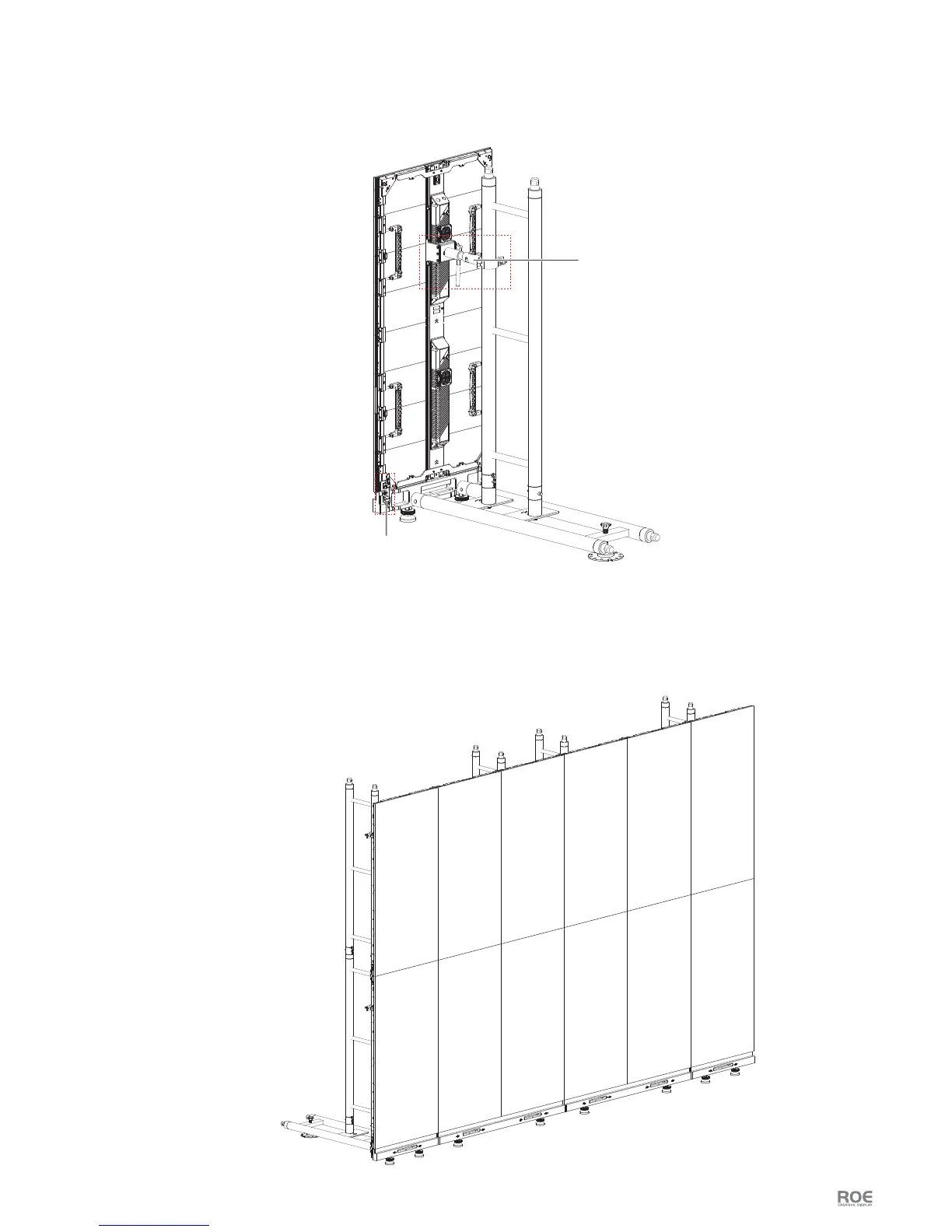

3. Tiles Installation

Connect the tiles and Base Bar by Vertical Connector, and Rear Support Truss by Rear bridge.

4. Stacking Installation

Tile(2×6)Accessories Count:

Base Bar: 2×0.6m, 1×1.2m

Base Truss: 4

Rear Support Truss: 8

Rear Bridge: 8

Connection Plate: 19

Vertical Connector

Rear Bridge
