BA_D8755
Issue 03/2004
Subject to changes without notice.
Page 2/2
B
.
Bleed the hydraulic lines during start-up of
the system, otherwise clamping times can
be considerably prolonged and function
problems can be caused.
The filters in the hydraulic system have to
be cleaned regularly and exchanged in
case of strong contamination. Check if the
hydraulic ports are tight (visual control).
The hydraulic intensifier itself is
maintenance free.
1
H
R
IN

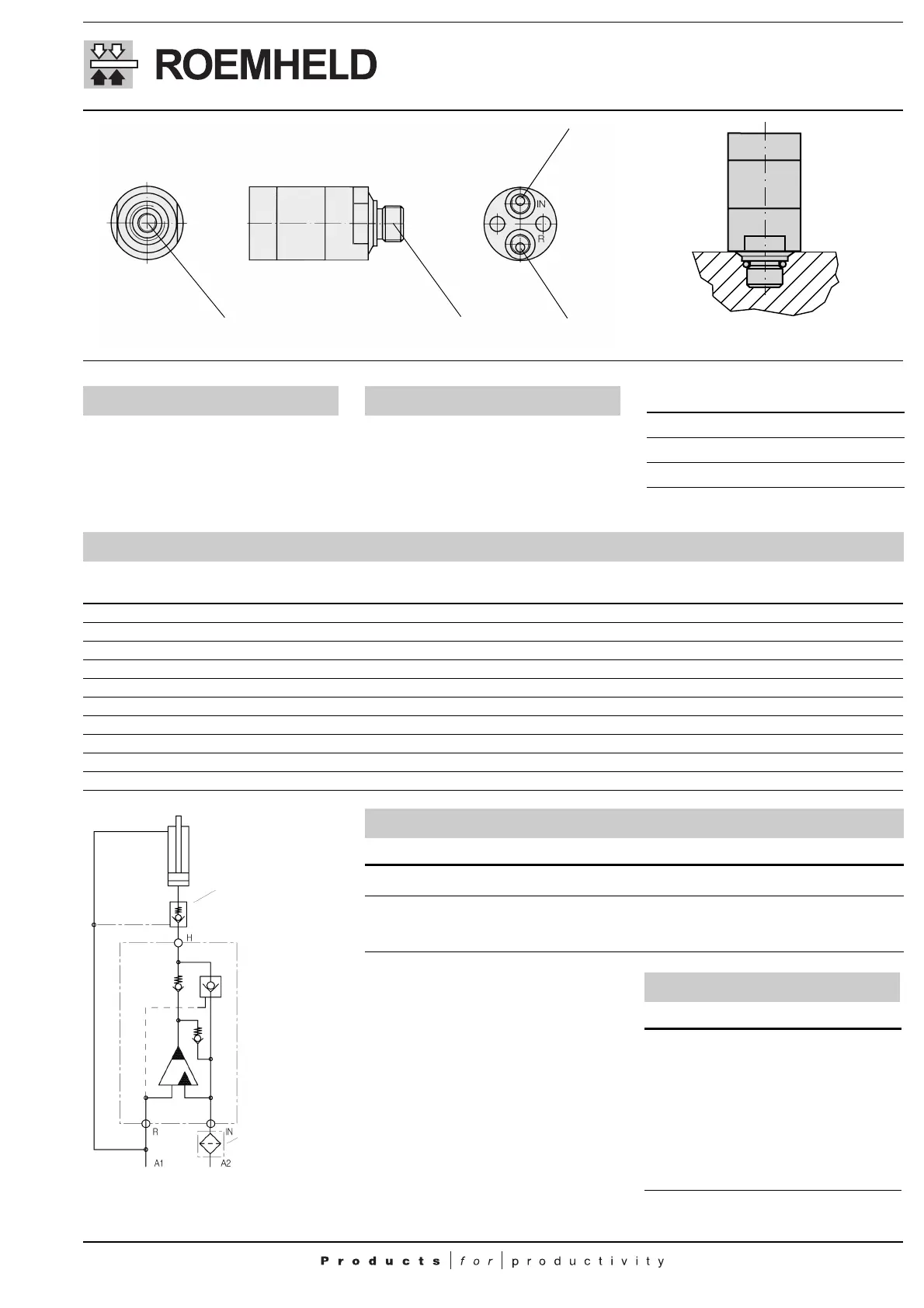

Installation of the hydraulic intensifier
Hydraulic bleeding Maintenance
Port Function
IN Input (clamping)
R Discharge line (unclamping)
H High-pressure output
Intensification
Type Intensification i
Max. flow rate low-pressure
side Q
IN
[l/min]
Max. flow rate high-
pressure side Q
H
[l/min]
Max. operating pressure low-
pressure side P
IN
in [bar]
Max. operating pressure high-
pressure side P
H
in [bar]
8755-015 1,5 8 1,0 200 300
8755-020 2,0 8 0,8 200 400
8755-032 3,2 15 2,5 155 500
8755-040 4,0 14 2,0 125 500
8755-050 5,0 14 1,6 100 500
8755-132 3,3 8 0,5 151 500
8755-140 4,0 8 0,4 125 500
8755-148 4,8 8 0,4 104 500
8755-162 6,2 8 0,3 80 500
8755-175 7,5 8 0,3 66 500
Accessory: pilot-operated
check valve
Accessory: Filter unit
Trouble shooting
Trouble Cause / Remedy
System reduces pressure
Check valve is leaky
- Exchange hydraulic intensifier or external check valve
No pressure built-up
pressure in R line not reduced
- Reduce pressure in R line
Filter contaminated
- Exchange filter
Data sheets
Types Corresponding data sheets
8755-015
8755-020
8755-032
8755-040
8755-050
8755-132
8755-140
8755-148
8755-162
8755-175
D8.755
All figures are schematic figures.
