STEP 7

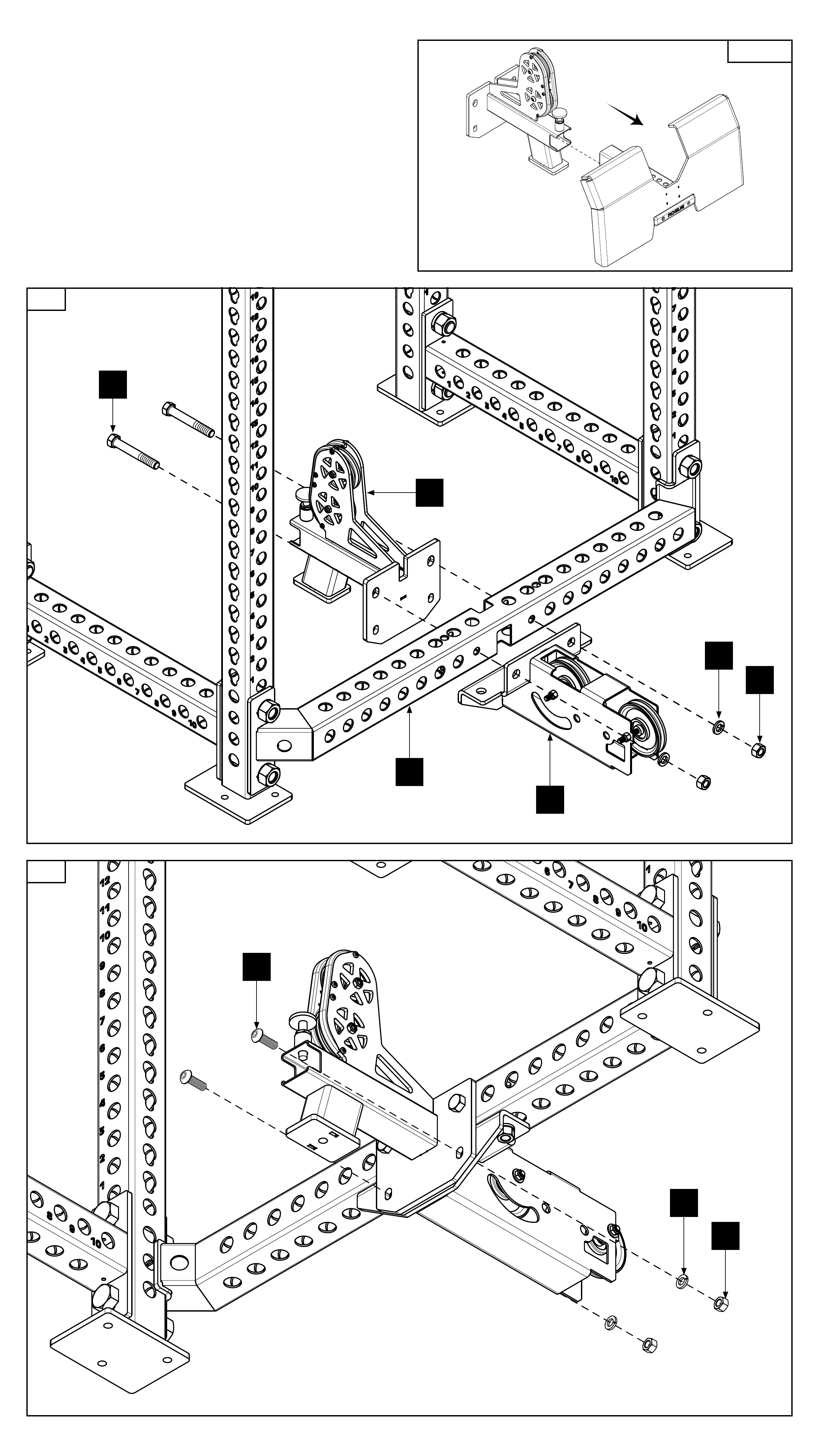

• For ease of assembly, pull the pop-pin
and remove Foot Catch from Low Row Foot
Plate Assembly as shown in detail view
(right).
• Attach Foot Plate Assembly [17] and
Low Rear Pulley Assembly [18] to Low Row
Crossmember [6] using indicated 5/8” and
1/2” hardware below.
page 18 of 46
58
61
57
60
56
59
17
18
6
To Next Page
